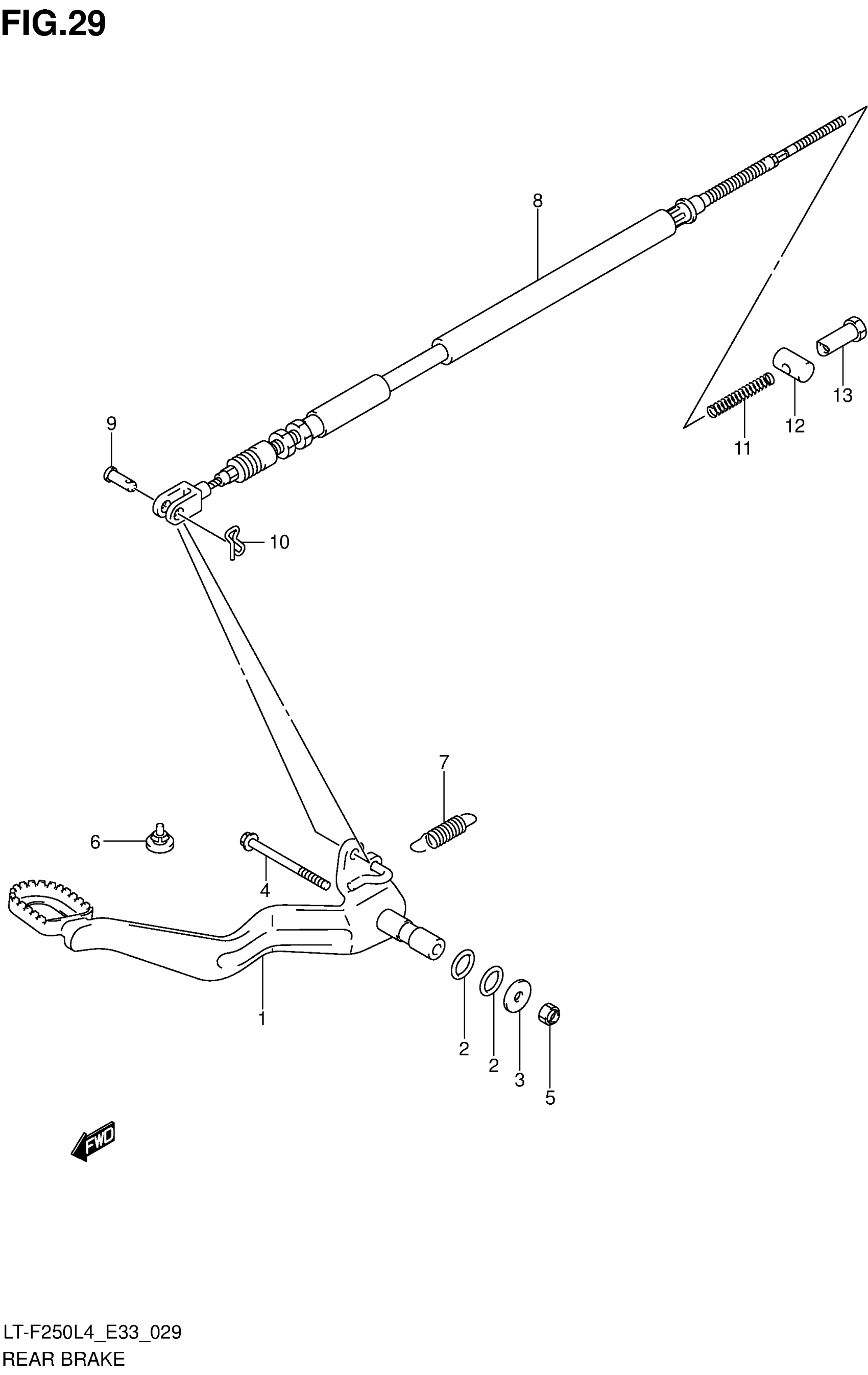

Suzuki LT-F250L4 (2014) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-05G20

Unavailable

2

O RING (D:2.5,ID:13.8)

09280-14011

$4.77

3

WASHER (6.5X22X2.3)

09160-06138

$1.91

4

BOLT

01547-0665A

$2.32

5

NUT

08319-2106A

$1.91

6

CUSHION This part replaces 09321-08022.

09321-08026

$1.94

7

SPRING

09443-11030

$3.70

8

CABLE, REAR BRAKE

58510-05G00

$71.68

9

PIN

09200-05001

$1.65

10

CLIP

09385-06012

$1.89

11

SPRING

09440-08042

$2.92

12

PIN

09209-13006

$5.24

13

NUT

09150-06015

$3.56
