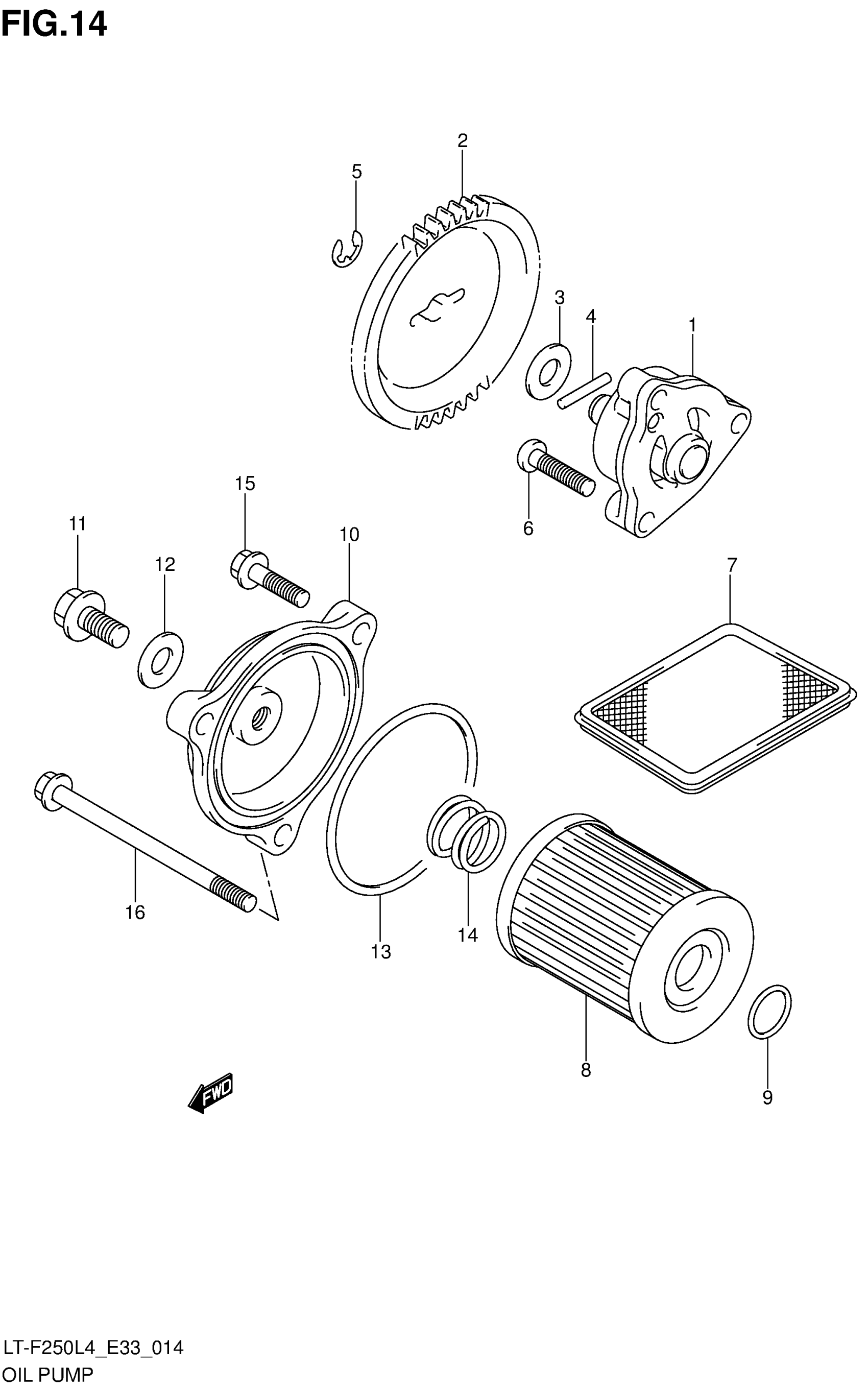

Suzuki LT-F250L4 (2014) OIL PUMP Diagram

#

Description
Price

1

PUMP, ENGINE OIL

16400-01412

$158.33

2

GEAR, DRIVEN (NT:47)

16331-05G00

$36.65

3

SHIM (8X18X0.5)

09181-08186

$1.99

4

PIN (2.5X19.8)

09261-02001

$1.56

5

CIRCLIP

08332-1106A

$1.49

6

SCREW

02112-0620A

$1.49

7

STRAINER,ENGINE This part replaces 16520-30A00.

16520-30A01

$8.20

8

FILTER ASSY, ENG OIL

16510-25C00

$7.80

9

O RING (D:1.9,ID:13)

09280-13004

$2.17

10

CAP, OIL FILTER

16512-05G00

$31.12

11

PLUG

01550-0812B

$2.73

12

GASKET (8.2X16X1)

09168-08029

$2.32

13

O RING (D:2.4,ID:52.6)

09280-54001

$3.76

14

SPRING

09440-18002

$1.49

15

STUD BOLT

01547-0620A

$2.03

16

STUD BOLT

01547-0680A

$3.30
