Partiron

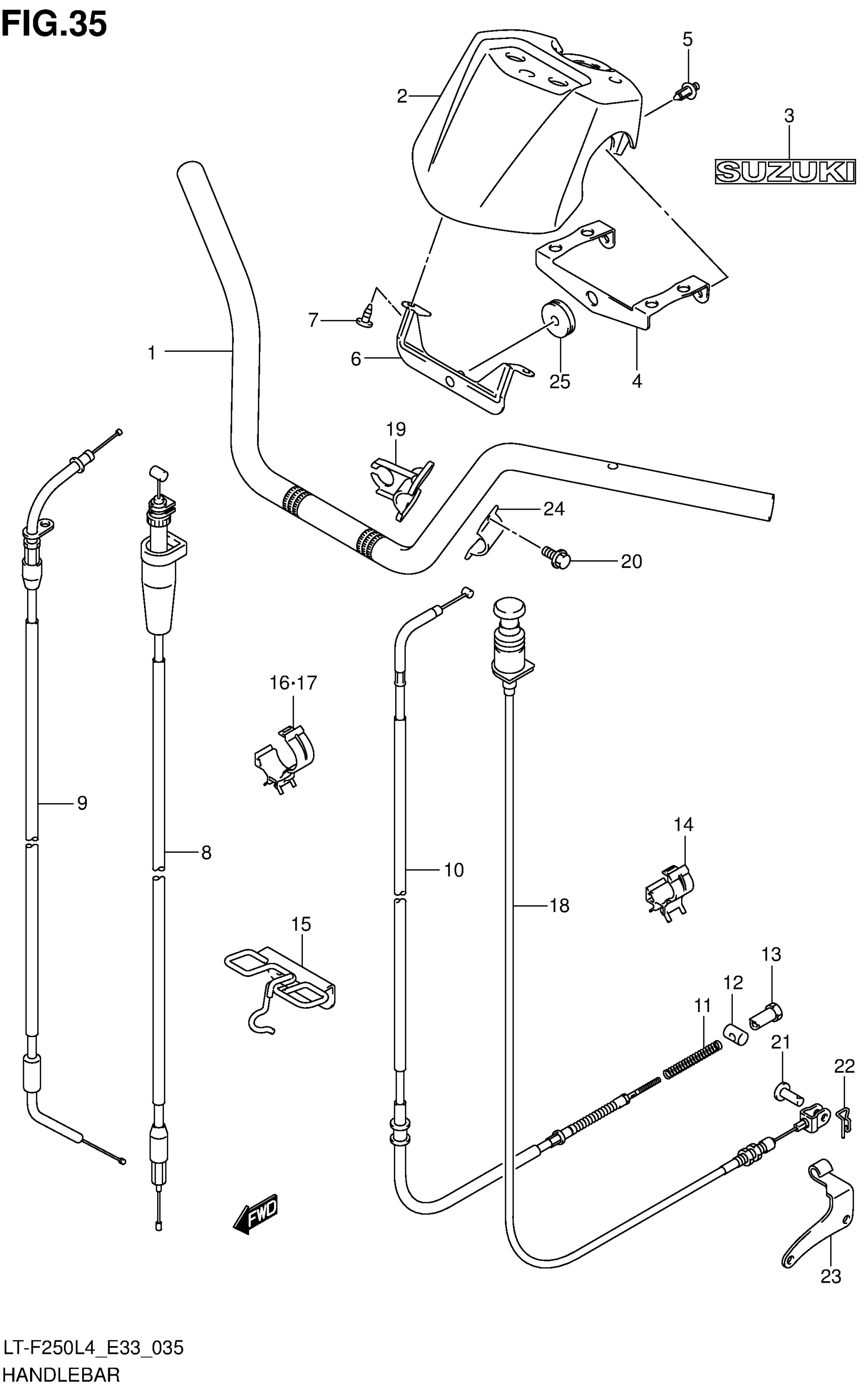

Suzuki LT-F250L4 (2014) HANDLE BAR Diagram

#

Description
Price

1

HANDLE BAR

56111-05G20

$268.36

2

COVER,STEERING This part replaces 56170-05G01-5CX.

56170-05G02-5CX

$61.47

3

EMBLEM

68721-05D00-E8F

Unavailable

4

BRACKET, COVER RH

56411-05G00

Unavailable

5

CLIP (BLACK)

09409-06314-5PK

$2.78

6

BRACKET, HEAD COVER

56180-05G00

$23.63

7

SCREW

03541-0512B

$1.78

8

CABLE ASSY,THRO This part replaces 58300-05G30.

58300-05G31

$32.17

9

CABLE,STARTER This part replaces 58410-05G00.

58410-05G01

$30.05

10

CABLE,RR BRAKE This part replaces 58810-05G11.

58810-05G12

$47.99

11

SPRING

09440-08042

$2.92

12

PIN

09209-13006

$5.24

13

NUT

09150-06015

$3.56

14

CLAMP

09403-10405

$3.15

15

GUIDE, CABLE

58620-05G00

Unavailable

16

CLAMP

09403-08407

Unavailable

17

CLAMP

09403-20403

$3.58

18

CABLE,REVERSE This part replaces 58840-05G01.

58840-05G02

$71.70

19

BRACKET, REVERSE CABLE

58910-05G00

Unavailable

20

BOLT

01547-0612B

$1.49

21

PIN

09200-06004

$2.20

22

CLIP

09385-06012

$1.89

23

BRACKET, REVERSE CABLE

58871-05G00

Unavailable

24

BRACKET

58921-05G00

Unavailable

25

CUSHION

09320-08018

$3.04
