2014 Suzuki LT-F250L4 Crankcase Diagram

← All diagrams

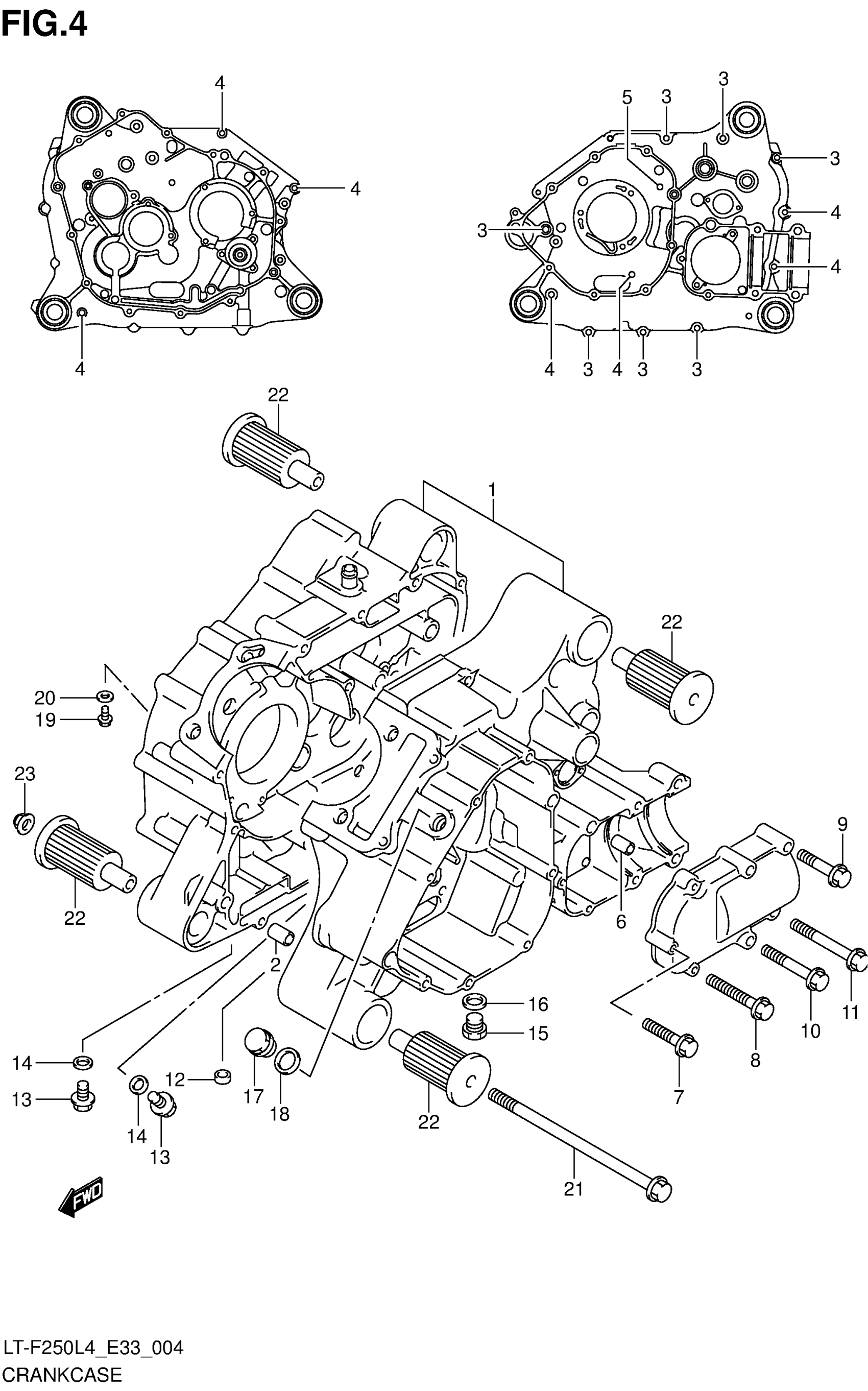

Find the part on the Crankcase diagram for your 2014 Suzuki LT-F250L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki LT-F250L4 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11301-05830

—
Out of stock

2

PIN (10.4X13X18)

04211-11189

2
Out of stock

3

BOLT

01547-0640A

7
Out of stock

4

BOLT

01547-0655A

7
Out of stock

5

BOLT

01547-0665A

1
Out of stock

6

PIN (10.4X13X18)

04211-11189

2
Out of stock

7

BOLT

01547-0630A

1
Out of stock

8

BOLT, SEC CASE

01547-0640A

2
Out of stock

9

BOLT, SEC CASE

01550-0850A

2
Out of stock

10

BOLT, SEC CASE

01550-0860A

1
Out of stock

11

BOLT, SEC CASE

01550-0870A

1
Out of stock

12

JET, OIL GALLERY MISSION

11329-09410

1
Out of stock

13

PLUG, OIL GALLERY

01550-0610A

2
Out of stock

14

GASKET (6.2X13X1.2)

09168-06018

2
Out of stock

15

PLUG, OIL GALLERY

01550-1016A

2

$3.06

In stock

16

GASKET (10X14X3.6)

09168-10002

2
Out of stock

17

PLUG, TDC

09247-14026

1

$3.63

In stock

18

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

19

PLUG, DRAIN This part replaces 09247-12102.

09247-12104

1
Out of stock

20

GASKET (12.1X16.2X3.7)

09168-12002

1
Out of stock

21

BOLT (10X160)

09103-10278

3
Out of stock

22

BUSH,ENG MTG This part replaces 11651-05G01.

11651-05G02

6
Out of stock

23

NUT

09159-10115

3
Out of stock
