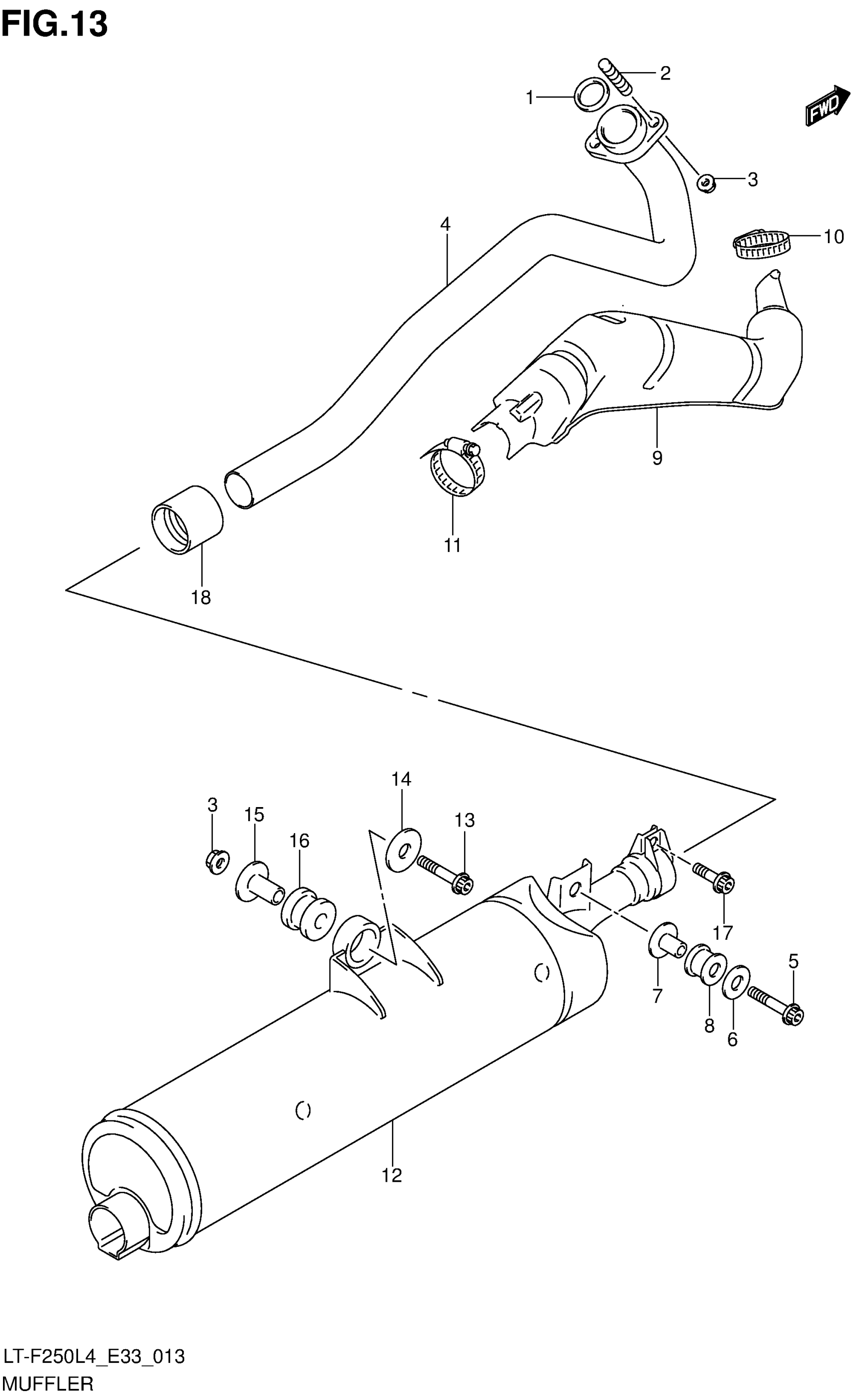

Suzuki LT-F250L4 (2014) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14181-42A00

$10.46

2

BOLT,STUD

01421-0825A

$2.09

3

NUT

08319-3108B

$2.80

4

PIPE, EXHAUST

14150-05G00

$126.22

5

BOLT (8X35)

09106-08133

$3.69

6

WASHER (8.5X30X2.3)

09160-08503

$2.61

7

SPACER (8.6X12X17.5)

09180-08151

$4.90

8

CUSHION

09320-12043

$7.42

9

COVER, EXHAUST

14180-05G01

$46.13

10

BAND, EXHAUST PIPE, A

14184-05G00

$14.22

11

BAND, EXHAUST PIPE, B

14185-05G00

$19.13

12

BODY,MUFFLER This part replaces 14310-05G00.

14310-05G01

$200.14

13

BOLT, MUFFLER SUPPORT

07120-0845B

$3.71

14

WASHER (8.5X30X2.3)

09160-08503

$2.61

15

SPACER (8.6X12X24.2)

09180-08152

$5.42

16

CUSHION

09320-12048

$4.75

17

BOLT

07120-0825B

$3.32

18

CONNECTOR, MUFFLER

14771-19B00

$16.78
