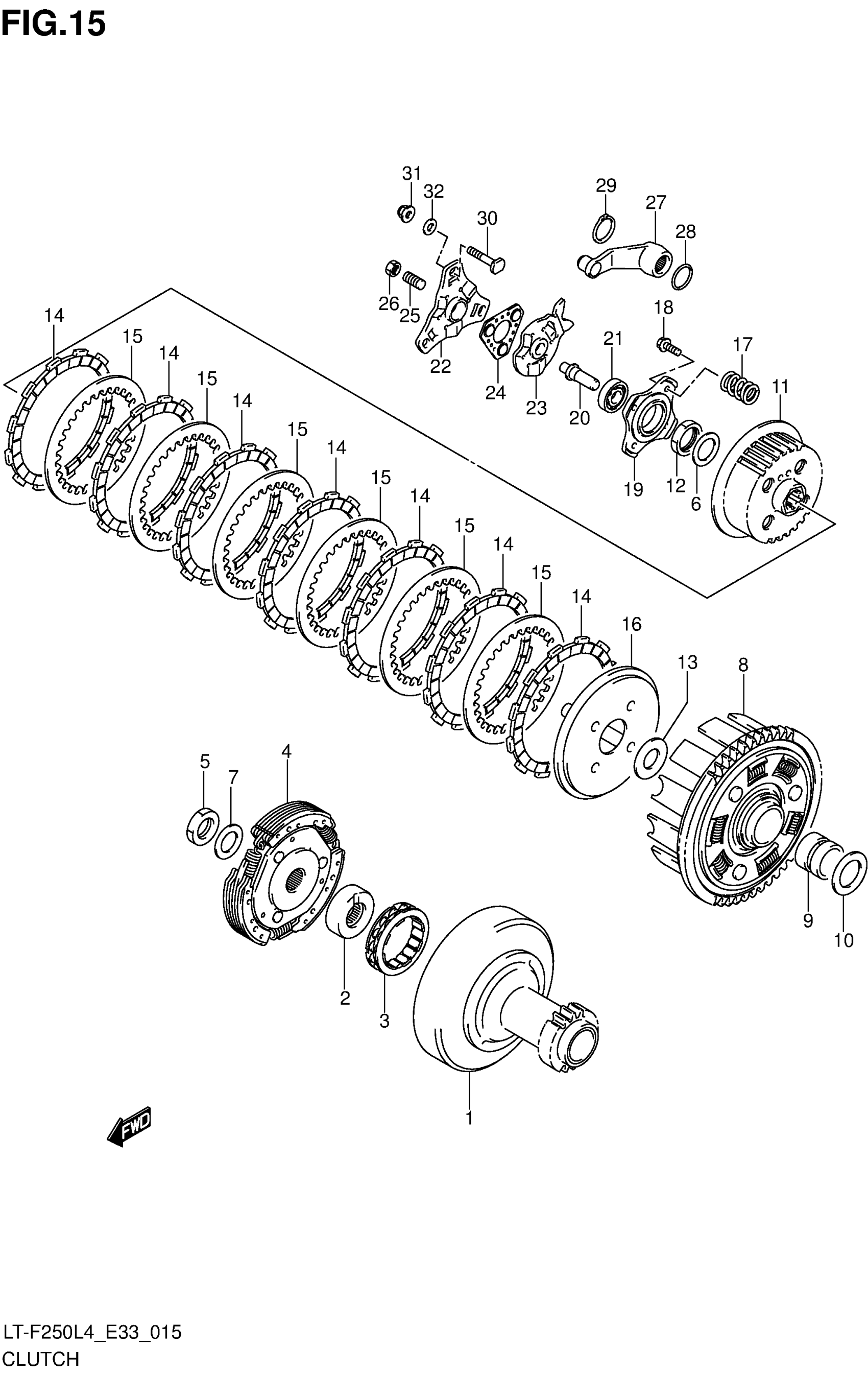

Suzuki LT-F250L4 (2014) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (NT:20)

21110-05G00

$208.75

2

RACE, INNER

21631-19B11

$36.17

3

CLUTCH, ONE WAY

21273-19B10

$163.13

4

CLUTCH ASSY

21500-05G10

$278.25

5

NUT

09140-18012

$8.37

6

WASHER

09164-20007

$4.60

7

WASHER

09164-18001

$3.24

8

GEAR ASSY, PRIMARY (NT:65)

21200-05G10

Unavailable

9

SPACER (22X28X23)

09180-22035

$21.22

10

SHIM (22X36X1)

09181-22251

$3.78

11

HUB, CLUTCH

21410-05G00

$121.77

12

NUT

09140-20019

$5.77

13

WASHER

08211-20323

$3.03

14

PLATE, DRIVE

21441-22A01

$14.73

15

PLATE, DRIVEN This part replaces 21451-11900.

21451-01B40

$8.40

16

DISC, PRESSURE

21462-24501

$53.90

17

SPRING

21413-05G10

$4.88

18

BOLT

01550-0620A

$1.97

19

PLATE, RELEASE

21465-24500

$19.15

20

PIECE, PUSH

23121-05G00

$25.33

21

BEARING (12X28X8)

09262-12001

$18.47

22

GUIDE, BALL OUTER

23231-05G21

Unavailable

23

GUIDE, BALL INNER

23211-05G21

$40.10

24

BALL, RELEASE

23250-31003

$28.18

25

SCREW (8X19.5)

09134-08009

$3.87

26

NUT

09140-08021

$2.63

27

ARM, RELEASE

23220-05G20

Unavailable

28

WASHER

08211-10243

$3.85

29

CIRCLIP

08331-3114A

$1.91

30

BOLT (6X30)

09119-06103

$2.05

31

NUT

08313-2006B

$2.85

32

GASKET (5.8X13X1.2)

09168-06023

$2.35
