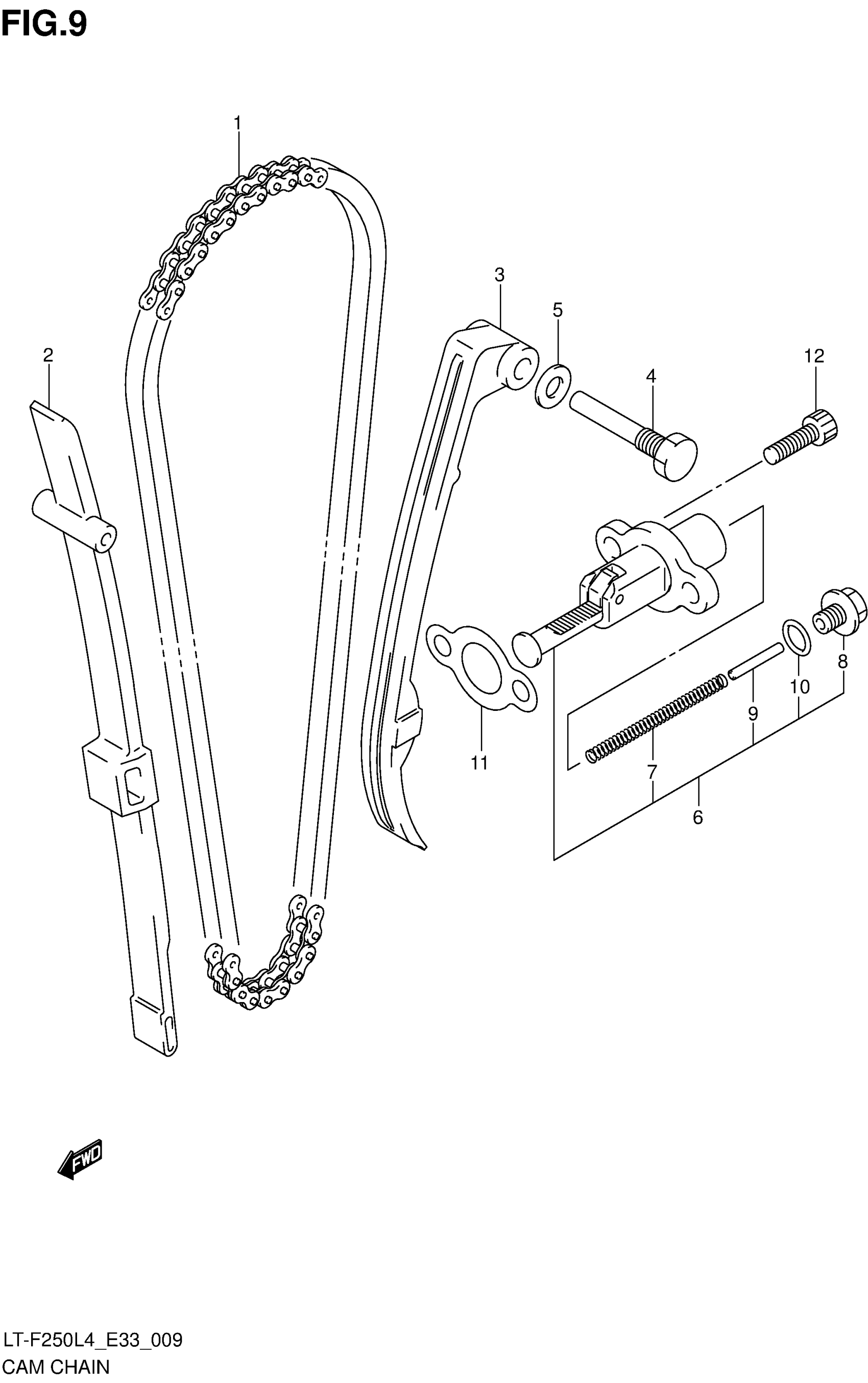

Suzuki LT-F250L4 (2014) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM

12760-21G00

$99.43

2

GUIDE,CAM CHAIN This part replaces 12771-21G00.

12771-21G01

$32.47

3

TENSIONER,CAM C This part replaces 12811-21G00.

12811-21G01

$35.77

4

BOLT, CAM CHAIN TENSIONER

12812-32400

$3.71

5

GASKET (8.2X14X1)

09168-08016

$1.65

6

ADJUSTER ASSY, TENSIONER

12830-19B02

$96.45

7

SPRING

12833-19B00

$3.25

8

PLUG

12834-19B00

$17.37

9

BAR

12835-19B00

$3.25

10

O RING

12832-02A00

$2.82

11

.GASKET,TENSIONER ADJUSTER

12837-19B10

$2.73

12

BOLT

07130-0620A

$2.50
