Description

Price

1

SHAFT, STEERING

51650-05G10

Unavailable

2

DUST SEAL, STEERING HOLDER (27X38X8.5)

51678-24500

$6.64

3

HOLDER,STEERING SHAFT

51670-24500

$23.07

4

BOLT

01550-0875A

$3.55

5

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

6

BUSH, STEERING SHAFT LOWER (17X26X36.9)

51661-09F00

$30.05

7

SEAL,DUST This part replaces 51662-05G00.

51662-05G01

$6.42

8

SEAL,DUST This part replaces 51663-05G00.

51663-05G01

$7.13

9

WASHER (12.5X32X2.3)

09160-12073

$1.97

10

NUT

08319-3112A

$3.76

11

COTTER PIN

04111-2020A

$1.49

12

CLAMP, HANDLEBAR LOWER (BLACK)

56211-21G00-291

$30.47

13

CLAMP, HANDLEBAR UPPER (BLACK)

56211-27200-291

$17.90

14

.BOLT

01550-0855A

$3.05

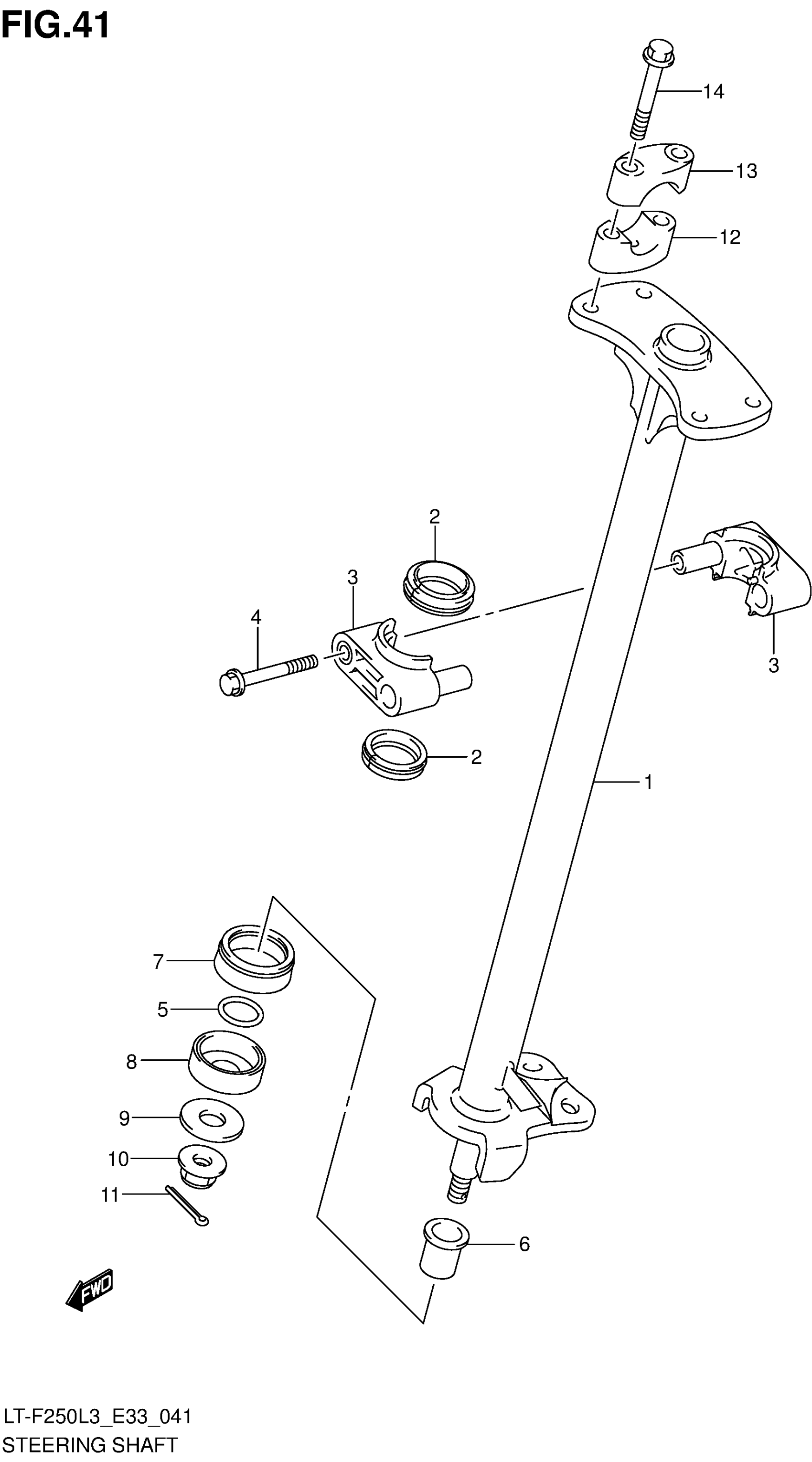

Suzuki LT-F250L3 (2013) STEERING SHAFT Diagram
