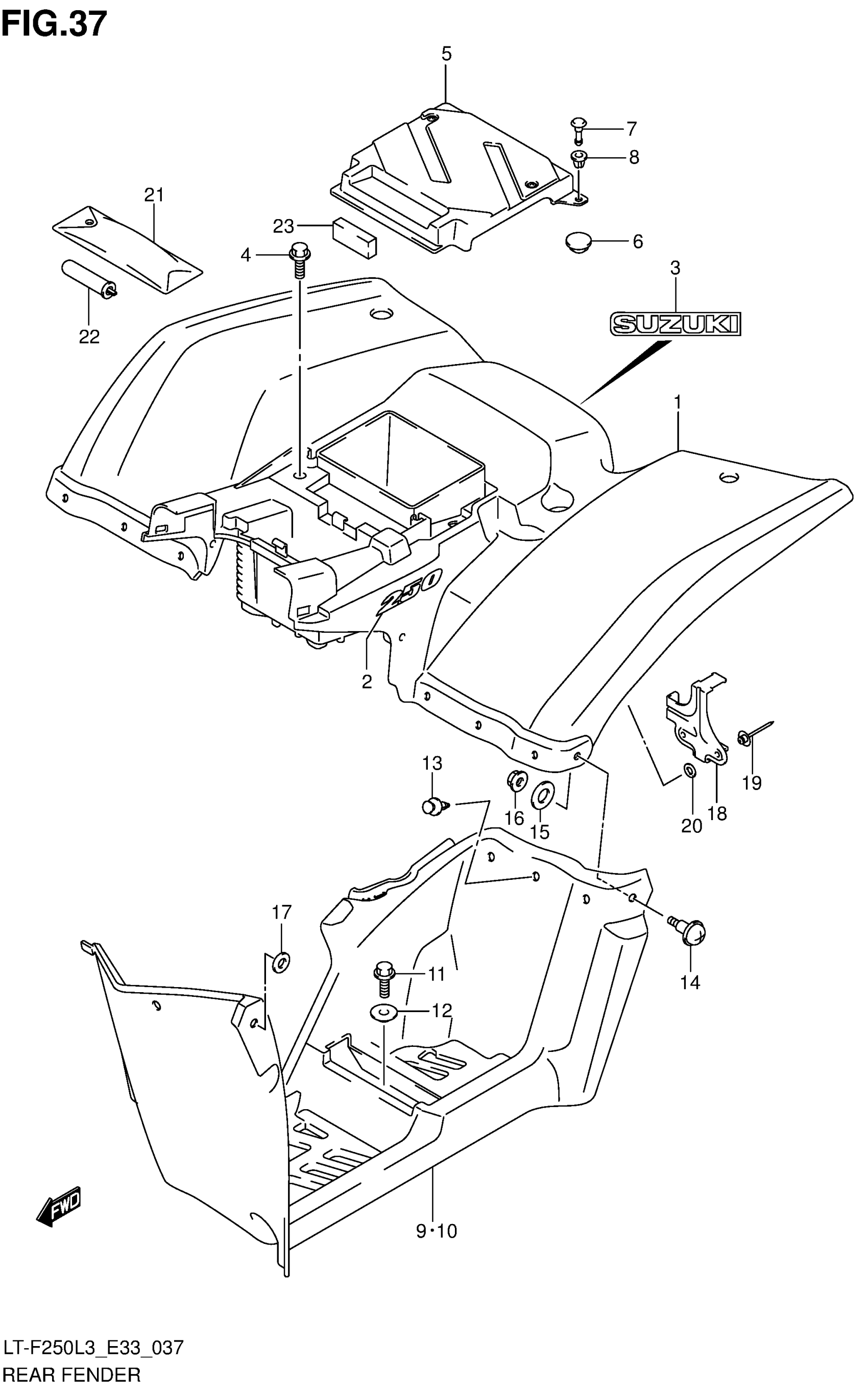

Suzuki LT-F250L3 (2013) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (RED)

63111-05G01-YT9

Unavailable

1

FENDER, REAR (GREEN)

63111-05G01-YLG

Unavailable

2

EMBLEM, "250"

68171-05G10-HFT

Unavailable

3

EMBLEM, "SUZUKI" (GRAY)

68171-05GA0-1ZZ

Unavailable

4

BOLT (6X16)

09113-06001

$2.73

5

COVER, REAR FENDER

63121-05G10

$47.07

6

CAP(OD:16) This part replaces 09250-08007.

09250-08020

$1.67

7

GROMMET

09409-08329

$2.40

8

PLUNGER

09409-08330

$2.38

9

MUD GUARD, FOOTREST RH (BLACK)

63331-05G00-291

$188.20

10

MUD GUARD, FOOTREST LH (BLACK)

63341-05G00-291

$174.23

11

BOLT

01550-0612B

$2.39

12

WASHER

09169-06076

$3.05

13

CLIP

09409-08335

$2.47

14

SCREW (5X16)

09136-05038

$2.96

15

WASHER (5.5X20X1.4)

09160-05046

$1.92

16

NUT

09159-05043

$2.22

17

WASHER, FOOTREST SIDE

53341-38F01

$3.26

18

PLATE, CDI UNIT

47413-05G01

Unavailable

19

RIVET

09229-04020

$2.66

20

WASHER

08322-01047

$1.86

21

TOOL ASSY This part replaces 09800-21044.

09800-21093

$17.83

22

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92

23

CUSHION, REAR FENDER

33652-31F00

$3.43
