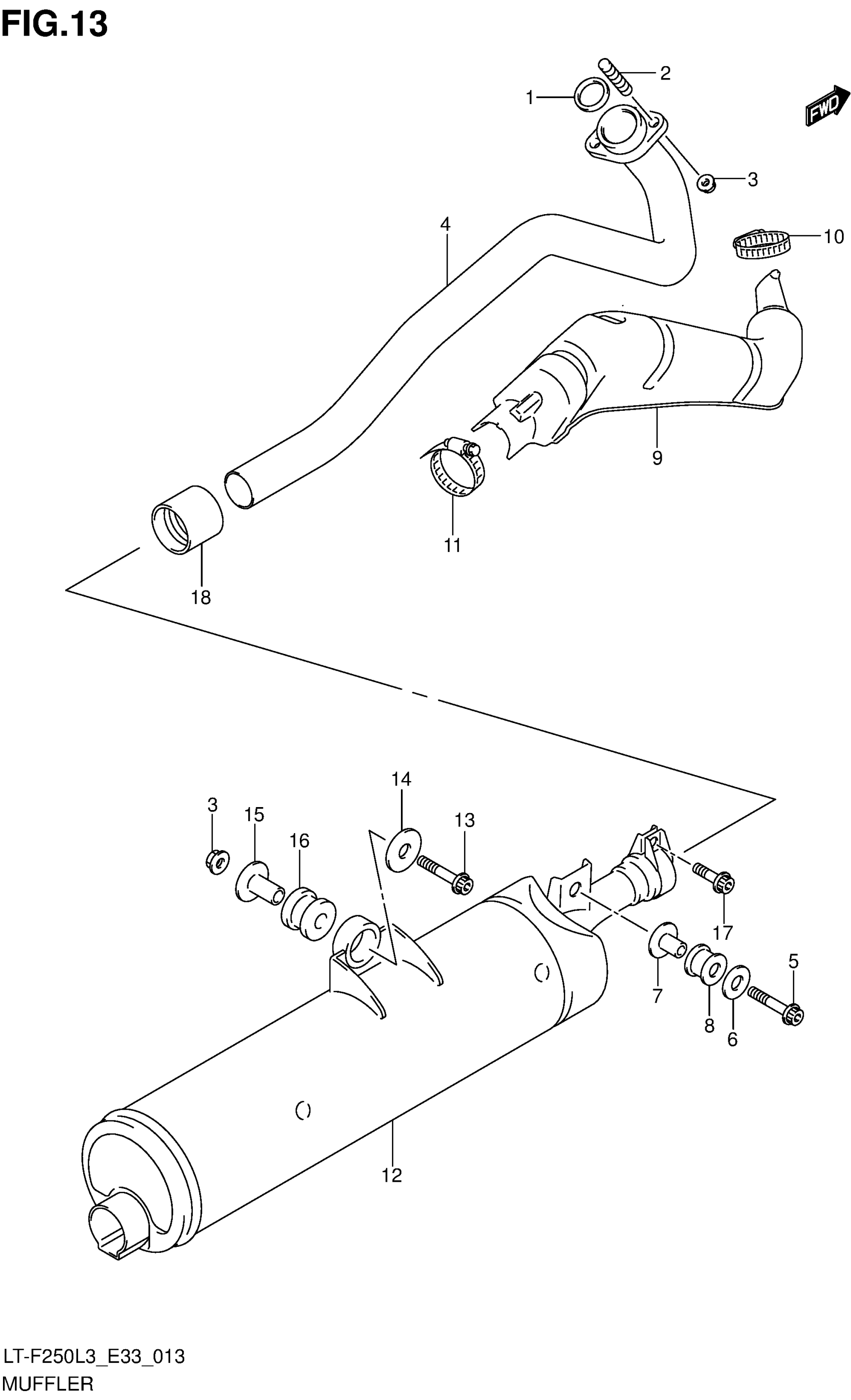

Find the part on the Muffler diagram for your 2013 Suzuki LT-F250L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki LT-F250L3 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, EXHAUST PIPE

14181-42A00

1
Out of stock

2

BOLT,STUD

01421-0825A

2
Out of stock

3

NUT

08319-3108B

3
Out of stock

4

PIPE, EXHAUST

14150-05G00

1
Out of stock

5

BOLT (8X35)

09106-08133

1
Out of stock

6

WASHER (8.5X30X2.3)

09160-08503

1
Out of stock

7

SPACER (8.6X12X17.5)

09180-08151

1
Out of stock

8

CUSHION

09320-12043

1
Out of stock

9

COVER, EXHAUST

14180-05G01

1
Out of stock

10

BAND, EXHAUST PIPE, A

14184-05G00

1
Out of stock

11

BAND, EXHAUST PIPE, B

14185-05G00

1
Out of stock

12

BODY,MUFFLER This part replaces 14310-05G00.

14310-05G01

1
Out of stock

13

BOLT, MUFFLER SUPPORT

07120-0845B

1

$3.86

In stock

14

WASHER (8.5X30X2.3)

09160-08503

1
Out of stock

15

SPACER (8.6X12X24.2)

09180-08152

1
Out of stock

16

CUSHION

09320-12048

1
Out of stock

17

BOLT

07120-0825B

1

$3.46

In stock

18

CONNECTOR, MUFFLER

14771-19B00

1
Out of stock
