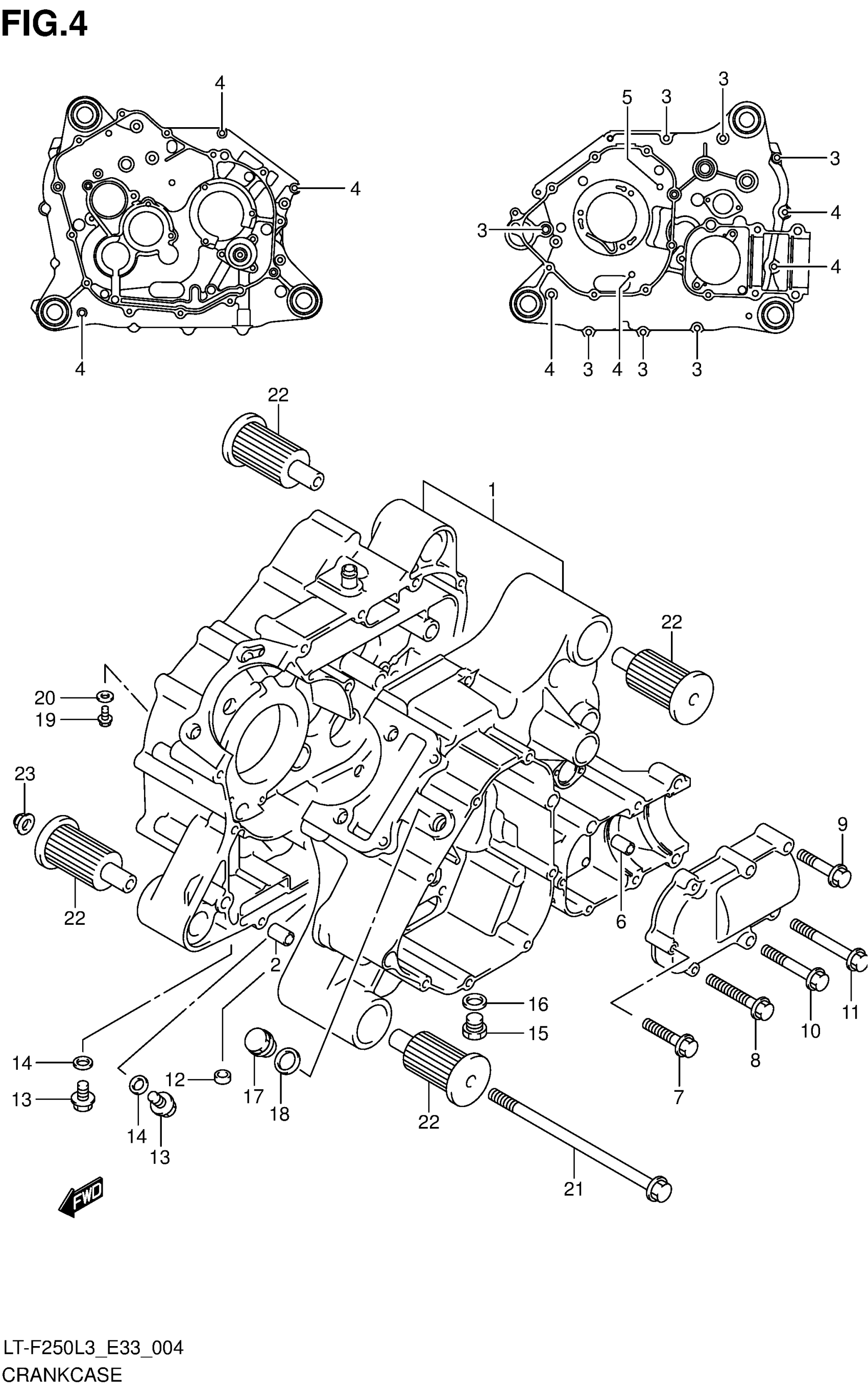

Suzuki LT-F250L3 (2013) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-05830

Unavailable

2

PIN (10.4X13X18)

04211-11189

$1.86

3

BOLT

01547-0640A

$2.38

4

BOLT

01547-0655A

$2.53

5

BOLT

01547-0665A

$2.42

6

PIN (10.4X13X18)

04211-11189

$1.86

7

BOLT

01547-0630A

$2.38

8

BOLT, SEC CASE

01547-0640A

$2.38

9

BOLT, SEC CASE

01550-0850A

$3.98

10

BOLT, SEC CASE

01550-0860A

$4.53

11

BOLT, SEC CASE

01550-0870A

$4.70

12

JET, OIL GALLERY MISSION

11329-09410

Unavailable

13

PLUG, OIL GALLERY

01550-0610A

$2.01

14

GASKET (6.2X13X1.2)

09168-06018

$1.76

15

PLUG, OIL GALLERY

01550-1016A

$2.94

16

GASKET (10X14X3.6)

09168-10002

$1.96

17

PLUG, TDC

09247-14026

$3.49

18

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

19

PLUG, DRAIN This part replaces 09247-12102.

09247-12104

$2.80

20

GASKET (12.1X16.2X3.7)

09168-12002

$1.63

21

BOLT (10X160)

09103-10278

$13.48

22

BUSH,ENG MTG This part replaces 11651-05G01.

11651-05G02

$18.29

23

NUT

09159-10115

$3.31
