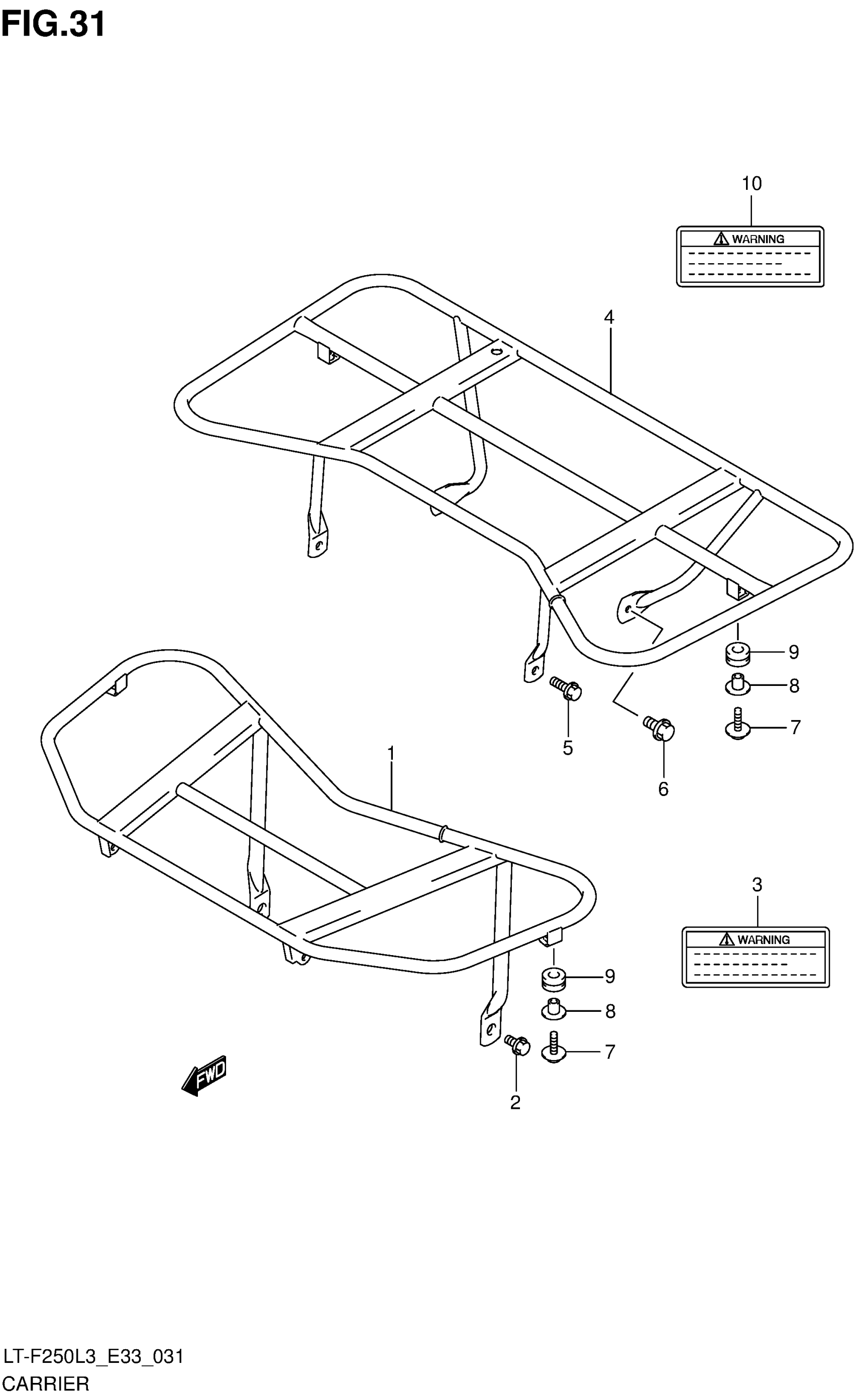

Suzuki LT-F250L3 (2013) CARRIER Diagram

#

Description
Price

1

CARRIER, FRONT (BLACK)

46410-05G01-019

$371.53

2

BOLT (8X16)

01550-0816A

$2.32

3

LABEL, FRONT CARRIER

68381-31G00

$9.28

4

CARRIER, REAR (BLACK)

46310-05G21-019

$495.37

5

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

6

BOLT

01550-1016A

$3.10

7

BOLT

01550-0625B

$2.42

8

WASHER

09169-06074

$7.95

9

CUSHION (11.5X32X12.2)

09320-11021

$4.17

10

LABEL, REAR CARRIER

68381-31G20

Unavailable
