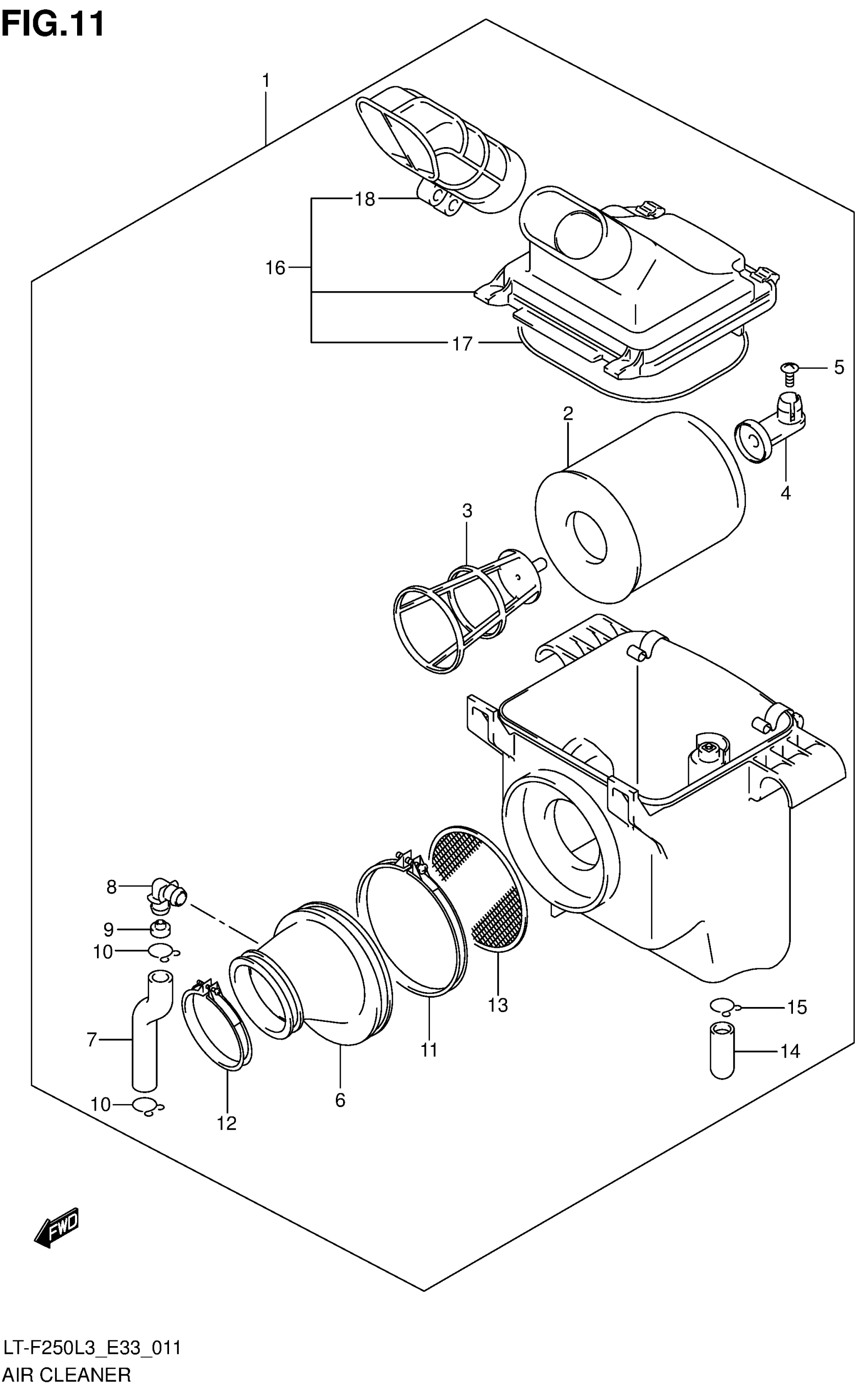

Suzuki LT-F250L3 (2013) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR This part replaces 13700-05G10.

13700-05G00

Unavailable

2

FILTER ASSY

13780-05G10

$34.16

3

HOLDER, FILTER

13791-05G01

$13.23

4

STOPPER, HOLDER

13792-05G00

$4.72

5

SCREW

02142-0616A

$1.49

6

TUBE,OUTLET This part replaces 13881-05G00.

13881-05G01

$32.00

7

TUBE,BREATHER This part replaces 13853-05G00.

13853-05G01

$12.97

8

JOINT

13858-14D20

$7.22

9

JET,BREATHER This part replaces 13859-05G00.

13859-05G01

$5.60

10

CLIP

09401-14301

$2.35

11

CLAMP

09402-98208

$7.09

12

CLAMP

09402-58208

$5.36

13

TRAP, FLAME

13810-05G00

$10.34

14

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.48

15

CLIP

09401-14301

$2.35

16

CAP COMP,AIR CL This part replaces 13740-05G00.

13740-05G01

$64.82

17

GASKET

13746-05G00

$4.87

18

TUBE,INLET This part replaces 13891-05G00.

13891-05G01

$18.58
