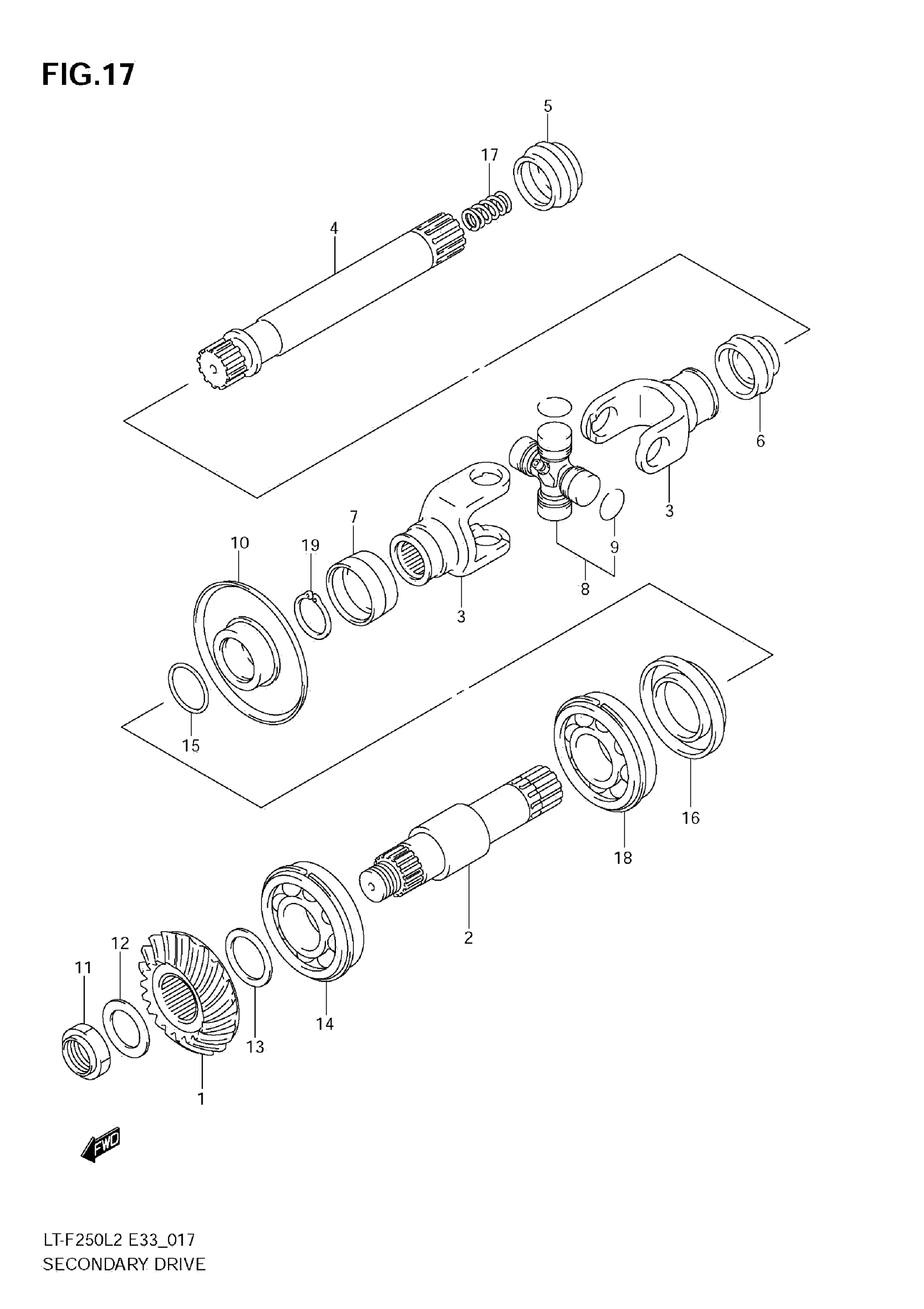

Suzuki LT-F250L2 (2012) SECONDARY DRIVE Diagram

#

Description
Price

1

GEAR, SEC DRIVEN BEVEL | NT:21

24921-05G00

Unavailable

2

SHAFT, SEC DRIVEN OUTPUT RR

24971-05G00

Unavailable

3

YOKE, REAR DRIVE OUTPUT

27140-03G00

$117.76

4

SHAFT, PROPELLER

27151-05G10

$116.48

5

BOOT, PROPELLER SHAFT

27153-03G00

$10.47

6

BOOT,PROPELLER This part replaces 27153-05G00.

27153-05G01

$3.60

7

BOOT,RR OUTPUT This part replaces 27153-05G10.

27153-05G11

$3.67

8

JOINT SET, UNIVERSAL RR

27200-38810

$108.23

9

CIRCLIP

09380-20016

$2.32

10

COLLAR, OUTPUT OIL SEAL

27590-05G00

$62.32

11

NUT

09140-20012

$4.32

12

SHIM (20X32X1)

09181-20223

$2.92

13

SHIM SET,SEC DRIVEN BEVEL | T:0.55/0.58/0.60/0.63 0.65/0.68/0.70/0.73 0.75/0.78/0.80/0.83 0.88/0.90/0.93/0.95 0.98/1.00/1.03/1.05 1.08/1.10/1.13/1.15 1.18/1.20/1.23/1.25 1.28/1.30/1.33/1.35 1.38/1.40

24945-03811

$111.58

14

BEARING (25X62X17) | 25X62X17

09262-25135

$47.00

15

O RING (D:1.9,ID:24.5)

09280-25005

$2.12

16

SEAL, OIL (35X62X14.8)

09283-35052

$13.30

17

SPRING

09440-12038

$4.04

18

BEARING

08173-63050

$39.15

19

CIRCLIP

08331-3124A

$2.03
