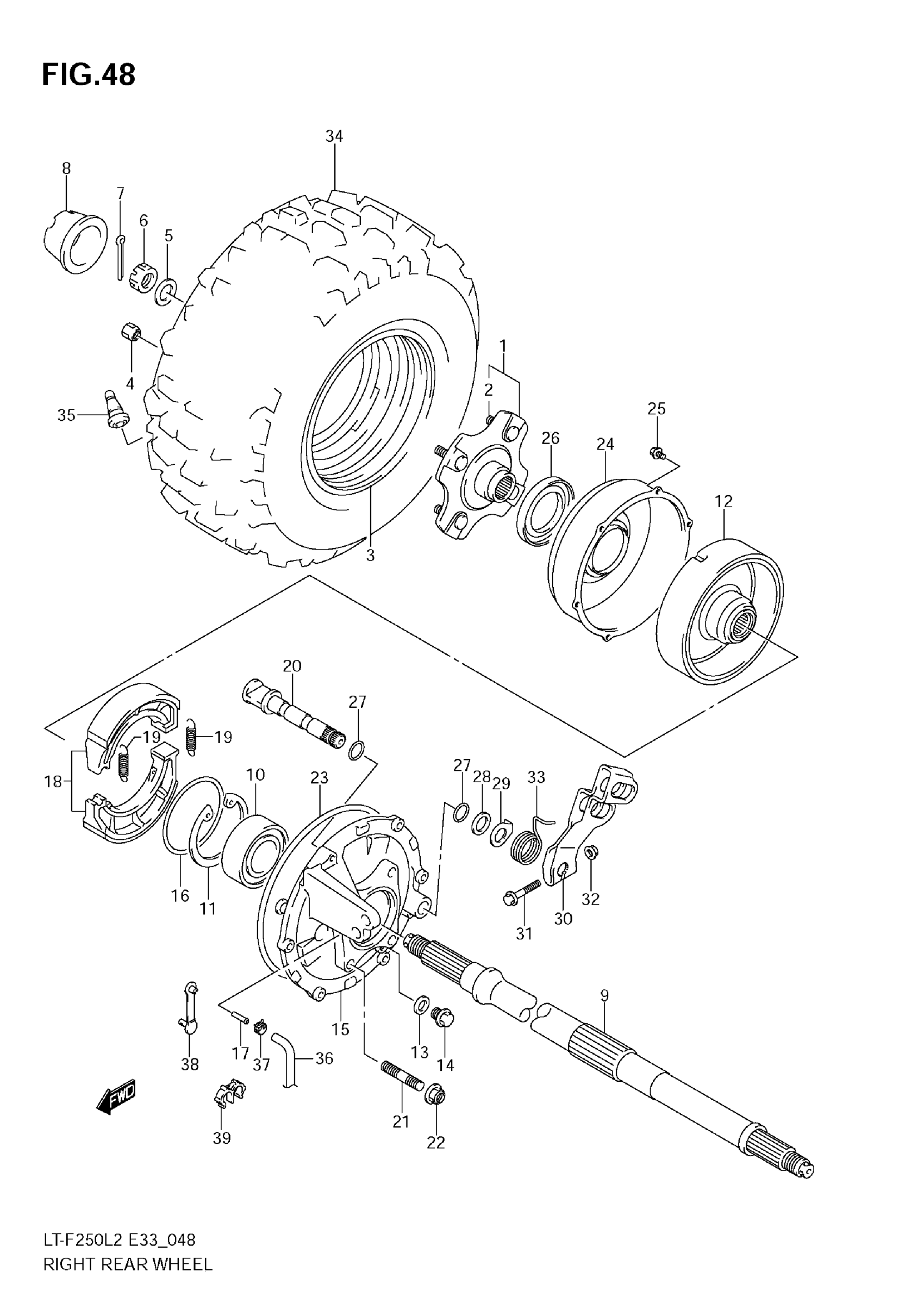

Suzuki LT-F250L2 (2012) RIGHT REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL RH

64110-05G10

$254.90

2

BOLT (10X30)

09119-10049-XC0

$2.26

3

RIM, REAR WHEEL (9X7.0AT) (SILVER)

65310-05G00-YL8

$340.33

4

NUT

09159-10114

$5.11

5

WASHER

09164-18004

$3.76

6

NUT

09141-18010

$10.11

7

COTTER PIN

04111-4035A

$1.49

8

CAP,WHEEL CENTER

54725-09F01

$9.95

9

AXLE, REAR

64711-05G10

$685.68

10

BEARING(30X62X2 | RH This part replaces 09267-30013.

09267-30015

$126.27

11

CIRCLIP

08331-4162A

$3.89

12

DRUM, REAR BRAKE

64120-05G10

$300.05

13

WASHER, DRAIN PLUG

09161-10007

$1.72

14

PLUG

09247-10008

$1.97

15

PANEL, REAR BRAKE ANCHOR

64210-05G01

$303.38

16

O RING This part replaces 09280-68008.

09280-68011

$2.92

17

UNION

09364-04004

$13.12

18

SHOE SET, REAR BRAKE

64400-05810

$55.17

19

SPRING,BRAKE SH This part replaces 55421-45F00.

55421-45F10

$3.22

20

CAM, REAR BRAKE

64440-05G01

$25.46

21

STUD BOLT

09108-10089

$4.16

22

NUT

09159-10115

$3.55

23

O RING

09280-00039

$14.26

24

COVER, REAR BRAKE DRUM

64123-05G00

$102.72

25

BOLT

01547-0612A

$2.03

26

SEAL, REAR BRAKE DRUM COVER

64124-05G00

$27.66

27

O RING (D:1.9,ID:13.8)

09280-14004

$1.65

28

WASHER (14.5X22X1.6)

09160-14055

$2.39

29

PLATE, BRAKE LINING INDICATOR

64492-21G00

$5.74

30

LEVER, REAR BRAKE CAM

64451-05G00

$39.81

31

BOLT

01550-0635A

$2.32

32

NUT

08316-1006A

$2.19

33

SPRING, RR BRAKE CAM LEVER

64484-05G00

$8.93

34

TIRE, REAR (AT22X10.9) This part replaces 65110-05G10.

65110-05G20

$214.82

35

VALVE ASSY, WHEEL RIM, TR412

43130-24A00

$8.85

36

HOSE,RR BRAKE B This part replaces 64270-05G00.

64270-05G01

$16.77

37

CLIP

09401-06405

$2.45

38

CLAMP (L:33)

09407-03401

$3.07

39

CLIP

09408-00200

$2.67
