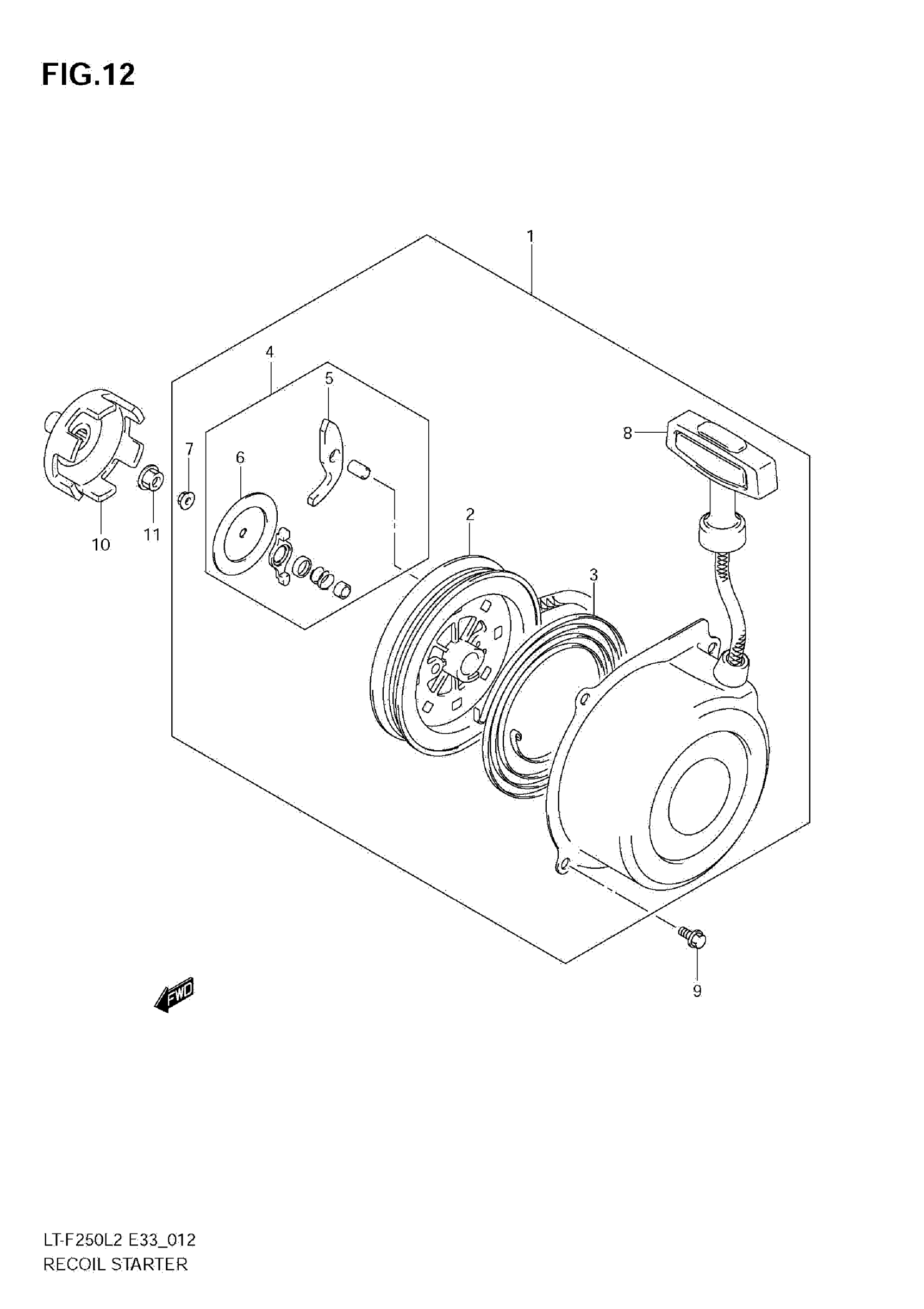

Suzuki LT-F250L2 (2012) RECOIL STARTER Diagram

#

Description
Price

1

STARTER ASSY, RECOIL

18100-18A20

$268.93

2

REEL

18120-24400

$35.94

3

.SPRING,SPIRAL

18142-24400

$29.60

4

RATCHET SET

18130-24400

$16.96

5

RATCHET

18131-24411

$8.12

6

..GUIDE,RATCHET

18132-24400

$2.92

7

NUT

08316-1006B

$2.50

8

ROPE ASSY (ROPE OD:6)

18200-24400

$34.27

9

BOLT (6X12)

09103-06236

$2.69

10

CUP, STARTER

18410-05G00

Unavailable

11

NUT

08316-1010B

$2.66
