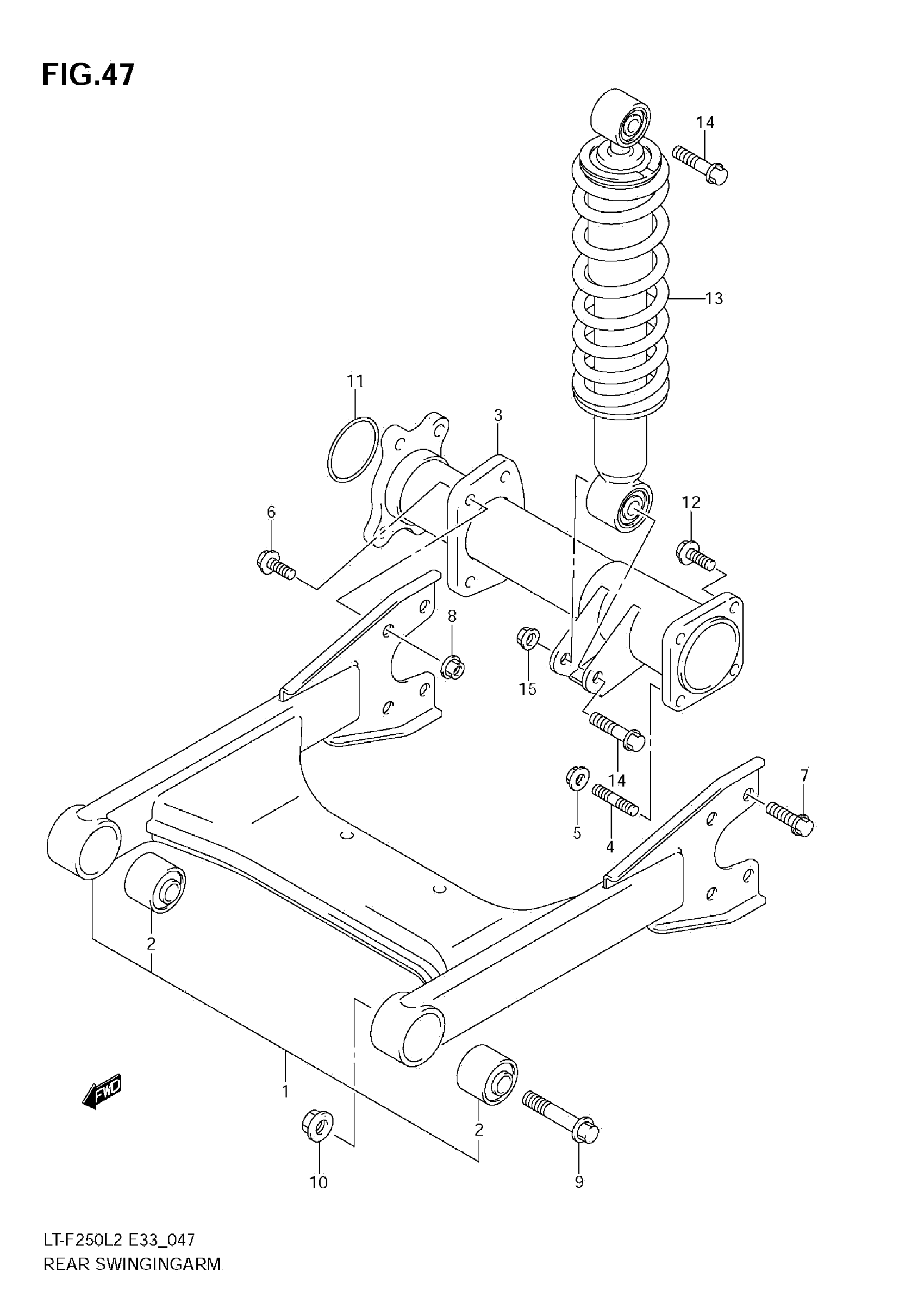

Suzuki LT-F250L2 (2012) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM SET, REAR

61100-05850

Unavailable

2

BUSH, PIVOT

61230-38F00

$43.33

3

HOUSING, RR AXLE, R

61300-05G20

Unavailable

4

BOLT, AXLE HOUSING FRONT

01421-1025A

Unavailable

5

NUT

08316-1010B

$2.66

6

BOLT (10X20) | RH

09103-10216

$4.17

7

BOLT | LH

01550-1030B

$3.72

8

NUT

09159-10115

$3.55

9

BOLT (12X57)

09103-12042

$8.50

10

NUT

09159-12054

$7.44

11

O RING (D:3.1,ID:69.4)

09280-70005

$6.23

12

BOLT

01550-1030B

$3.72

13

ABSORBER ASSY,R This part replaces 62100-05G10-019.

62100-05G11-019

$360.82

14

BOLT (10X50)

09103-10064

$5.52

15

NUT

09159-10115

$3.55
