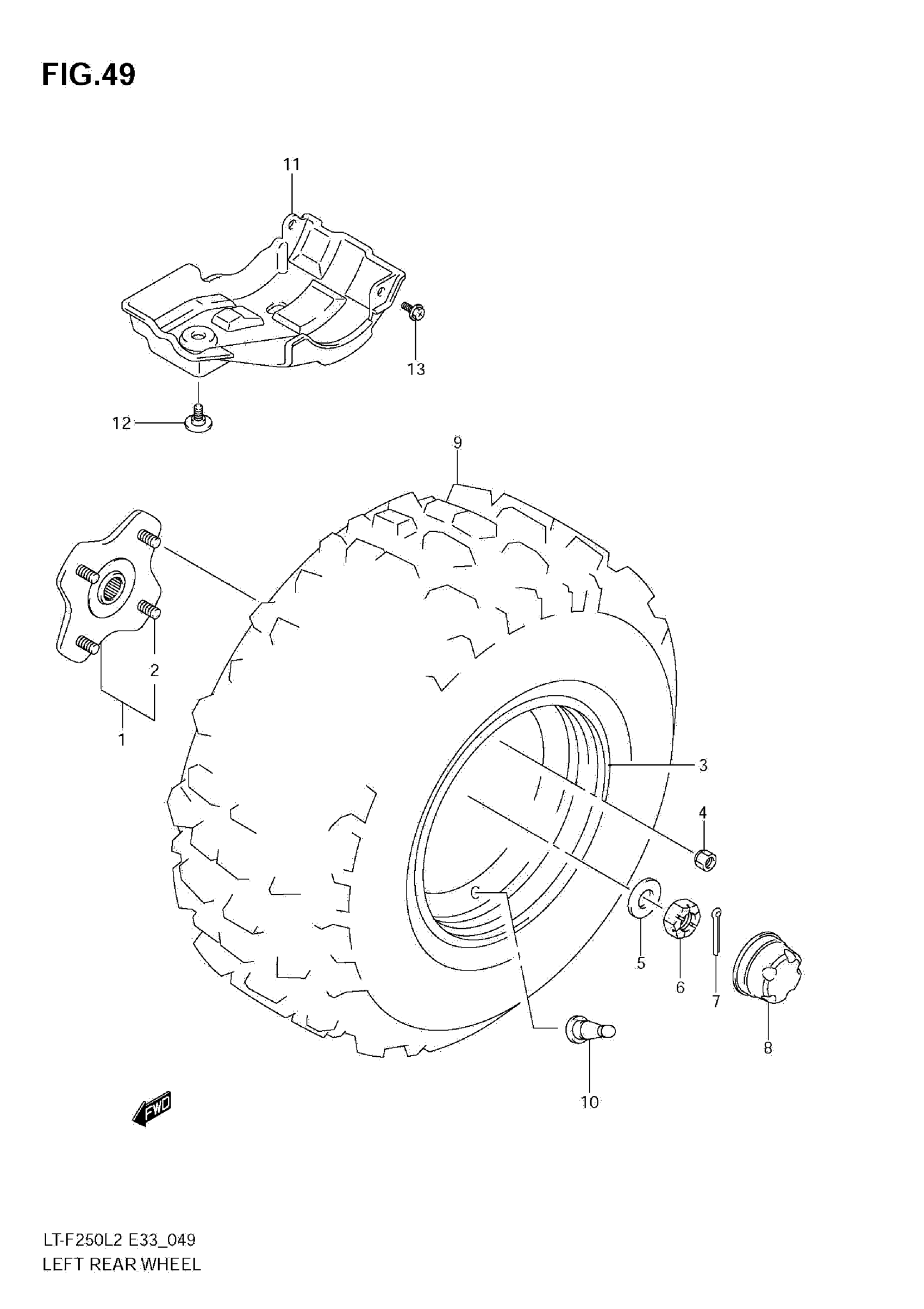

Suzuki LT-F250L2 (2012) LEFT REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL LH

64110-05G00

$254.90

2

BOLT (10X30)

09119-10049-XC0

$2.26

3

RIM, REAR WHEEL (9X8.0AT) (SILVER)

65310-05G00-YL8

$340.33

4

NUT

09159-10114

$5.11

5

WASHER

09164-18004

$3.76

6

NUT

09141-18010

$10.11

7

COTTER PIN

04111-4035A

$1.49

8

CAP,WHEEL CENTER

54725-09F01

$9.95

9

TIRE, REAR (AT22X10.9) This part replaces 65110-05G10.

65110-05G20

$214.82

10

VALVE ASSY, WHEEL RIM, TR412

43130-24A00

$8.85

11

PROTECTOR, FINAL CASE

61391-05G01

$46.60

12

BOLT, FRONT

61393-09F10

$7.13

13

BOLT (6X16.5)

09111-06095

$2.12
