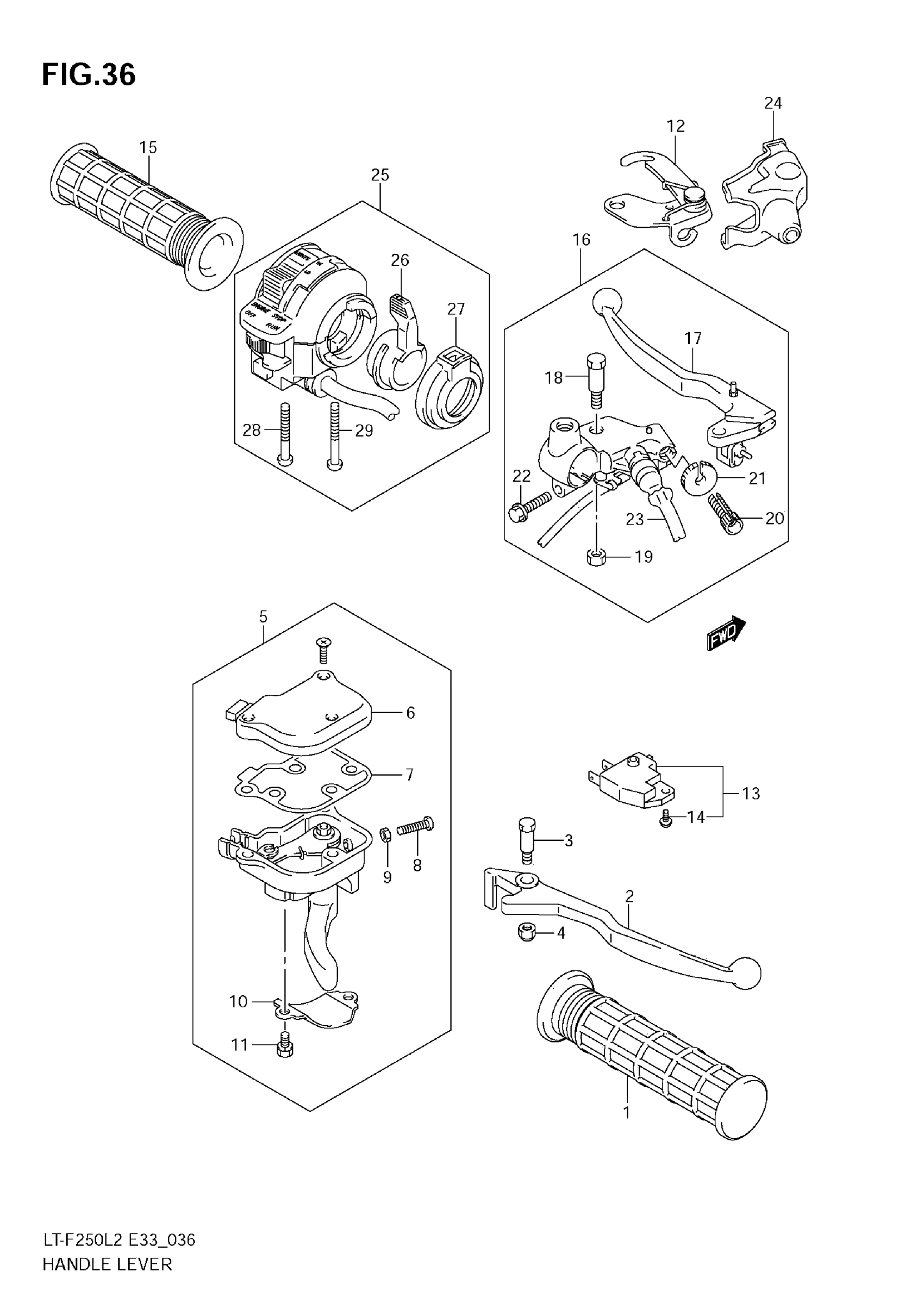

Suzuki LT-F250L2 (2012) HANDLE LEVER Diagram

#

Description
Price

1

GRIP

57211-21G10

$10.15

2

LEVER,FRONT BRAKE

57421-39D20

$23.07

3

BOLT,BRAKE LEVER PIVOT

57431-04F00

$6.28

4

NUT,LEVER PIVOT

57433-09F00

$3.56

5

CASE ASSY,THROTTLE This part replaces 57100-27H01.

57100-27H03

$81.17

6

CAP

57121-27H00

$56.05

7

GASKET

57157-27H00

Unavailable

8

SCREW

02112-0520B

$1.84

9

NUT This part replaces 08310-0005B.

08310-0005A

$1.84

10

HOLDER

57126-07G00

$29.10

11

BOLT

57127-07G00

$11.95

12

.STOPPER,BRAKE LEVER

57790-38FA0

$45.37

13

SWITCH ASSY,FR BRAKE This part replaces 57460-17C11.

57460-14J02

$38.46

14

SCREW

57465-17C00

$2.19

15

GRIP

57211-21G10

$10.15

16

LEVER ASSY,REAR This part replaces 57500-38FC0.

57500-38FC1

$89.28

17

LEVER, BRAKE

57620-21821

$50.23

18

.BOLT,PIVOT

57431-09F00

$12.90

19

NUT

08319-2106B

$2.32

20

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

$11.64

21

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

$8.36

22

..BOLT

01547-0620B

$2.45

23

SWITCH, STOP

57560-38FA1

$68.60

24

COVER,BRAKE LEVER This part replaces 57541-38FA0.

57541-38FA1

$8.70

25

SWITCH ASSY,HANDLE LH

37400-27H00

$176.37

26

LEVER, CHOKE

37571-19B01

$12.15

27

COVER, CHOKE

37576-19B01

$6.79

28

SCREW

02112-05407

$2.06

29

SCREW

02112-05457

$1.86
