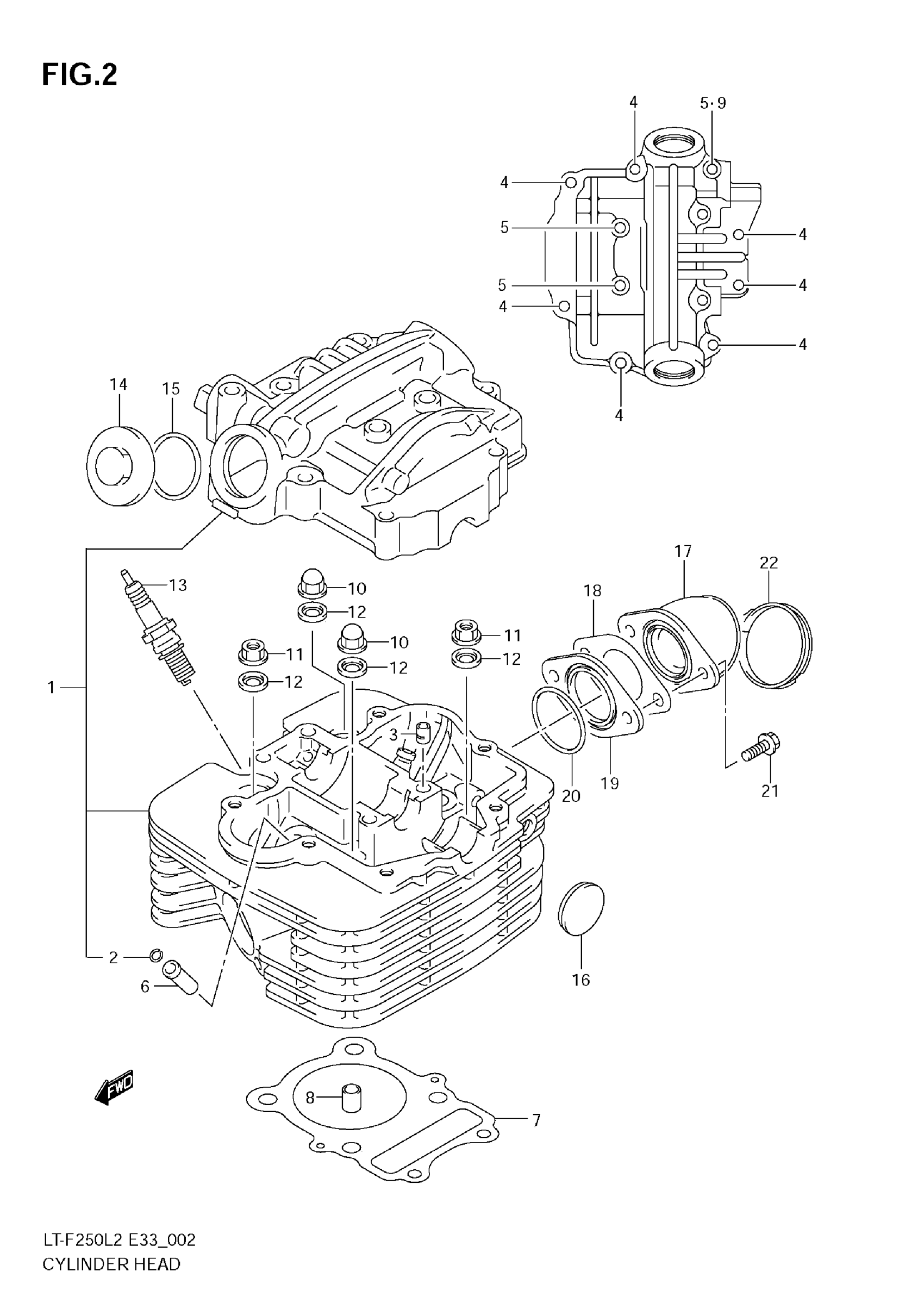

Suzuki LT-F250L2 (2012) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-05G00

$794.73

2

.RING (10X85)

09381-10004

$1.50

3

PIN (6.2X8X11)

09206-08001

$1.78

4

BOLT

01550-0635A

$2.32

5

BOLT

01550-0660A

$3.05

6

GUIDE, VALVE (0S:0.3) | OPT

11115-05270

$32.10

7

GASKET, CYLINDER HEAD

11141-19B00

$15.10

8

PIN

04211-11169

$1.78

9

GASKET (5.8X13X1.2)

09168-06023

$2.35

10

NUT

09159-08049

$4.71

11

NUT

08316-1008A

$2.45

12

GASKET (8.5X17X2.3)

09168-08021

$2.61

13

SPARK PLUG (DR7EA) | NGK

09482-00398

$3.03

13

SPARK PLUG (X22ESR-U) | DENSO

09482-00222

$5.36

13

SPARK PLUG (DR8EA) | OPT NGK

09482-00399

$3.32

13

SPARK PLUG (X24ESR-U) | OPT DENSO

09482-00223

$5.18

13

SPARK PLUG (DR9EA) | OPT NGK

09482-00400

$5.24

13

SPARK PLUG (X27ESR-U) | OPT DENSO

09482-00224

Unavailable

14

CAP INSPECTION This part replaces 11175-18900.

11175-18920

$12.20

15

.O RING (D:3,ID:29.5)

09280-30001

$1.72

16

PLUG

09241-22002

$5.24

17

PIPE,INTAKE This part replaces 13110-05G00.

13110-05G01

$32.45

18

GASKET, INTAKE PIPE

13118-05G00

$3.25

19

INSULATOR, INTAKE PIPE

13117-05G00

$9.31

20

O RING (D:2.1,ID:34.7)

09280-35005

$9.05

21

BOLT

07120-0620A

$2.72

22

CLAMP

09402-46208

$4.64
