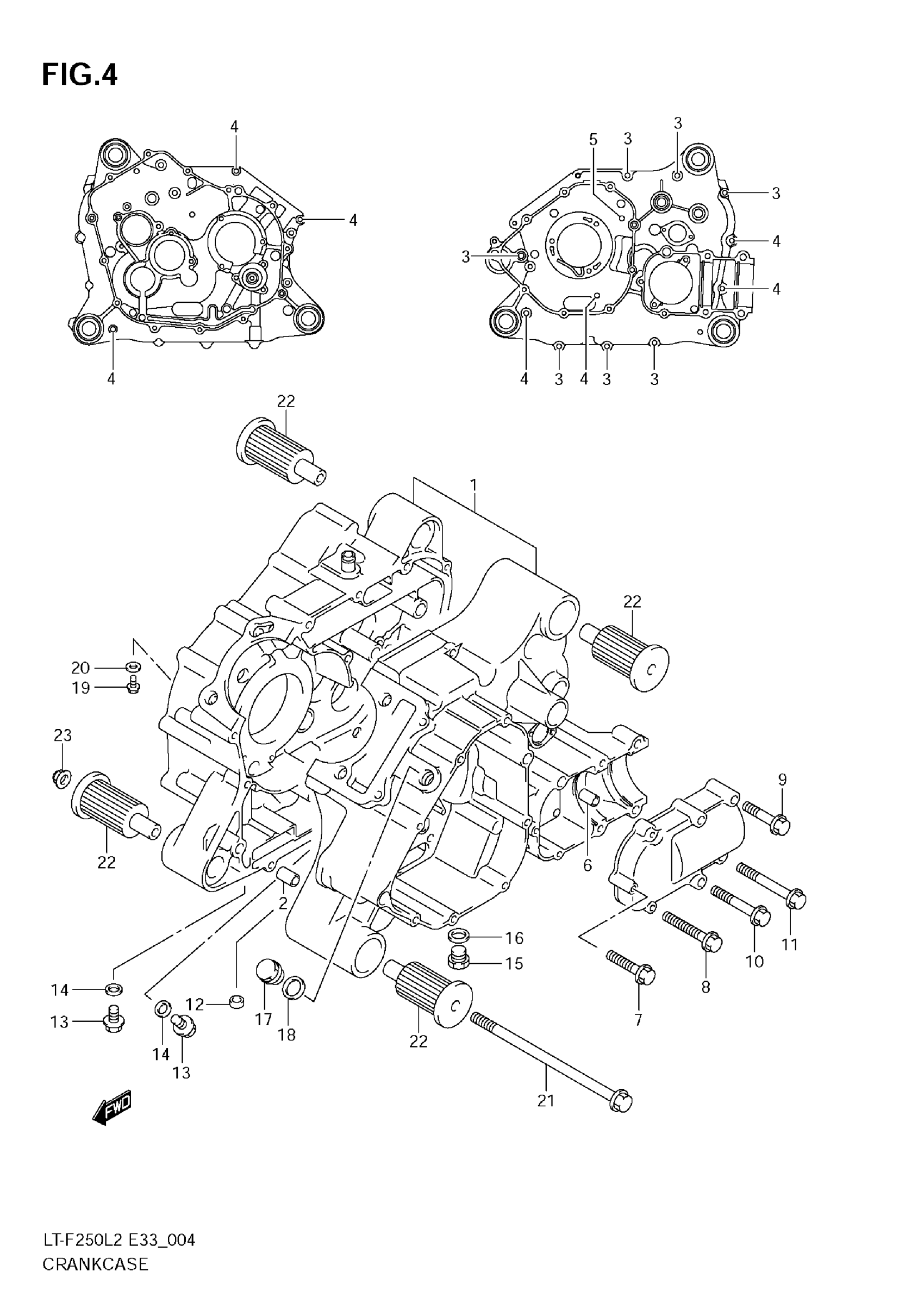

Suzuki LT-F250L2 (2012) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-05821

Unavailable

2

PIN (10.4X13X18)

04211-11189

$1.78

3

BOLT

01547-0640A

$2.32

4

BOLT

01547-0655A

$2.42

5

BOLT

01547-0665A

$2.32

6

PIN (10.4X13X18)

04211-11189

$1.78

7

BOLT

01547-0630A

$2.32

8

BOLT, SEC CASE

01547-0640A

$2.32

9

BOLT, SEC CASE

01550-0850A

$3.67

10

BOLT, SEC CASE

01550-0860A

$4.17

11

BOLT, SEC CASE

01550-0870A

$4.32

12

JET, OIL GALLERY MISSION

11329-09410

Unavailable

13

PLUG, OIL GALLERY

01550-0610A

$1.97

14

GASKET (6.2X13X1.2)

09168-06018

$1.77

15

PLUG, OIL GALLERY

01550-1016A

$3.10

16

GASKET (10X14X3.6)

09168-10002

$2.13

17

PLUG, TDC

09247-14026

$3.76

18

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

19

PLUG, DRAIN This part replaces 09247-12102.

09247-12104

$2.73

20

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

21

BOLT (10X160)

09103-10278

$12.40

22

BUSH,ENG MTG This part replaces 11651-05G01.

11651-05G02

$19.12

23

NUT

09159-10115

$3.55
