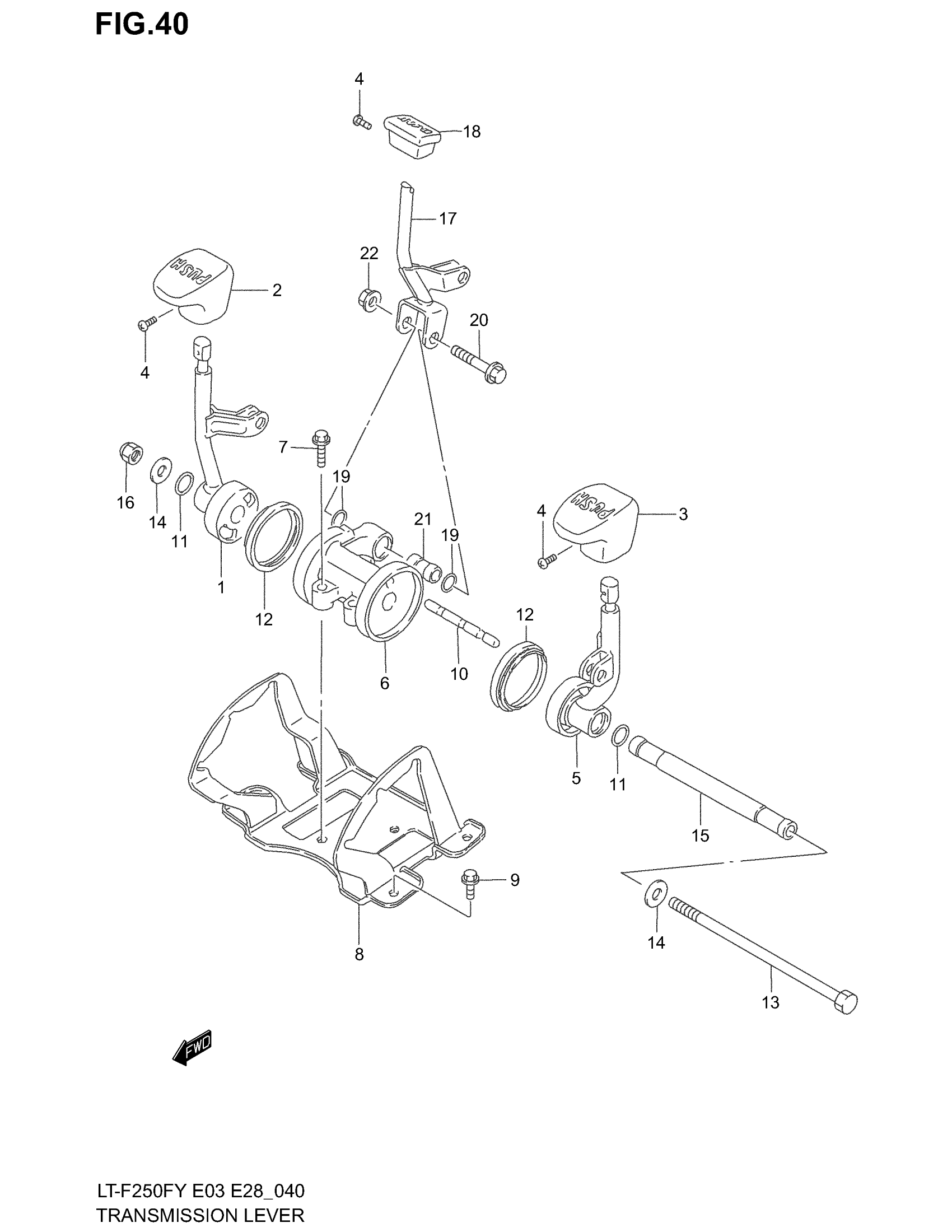

Suzuki LT-F250F (2002) TRANSMISSION LEVER Diagram

#

Description
Price

1

LEVER SET,T/M S This part replaces 57900-19840.

57900-19843

$185.13

2

KNOB,SHIFT LEVE | MODEL X/Y This part replaces 57980-19B01-26A.

57980-19B02-26A

Unavailable

2

KNOB COMP,SHIFT | MODEL K1/K2 This part replaces 57980-19B01-291.

57980-19B02-291

$16.67

3

KNOB,SHIFT LEVE | MODEL X/Y This part replaces 57930-19B01-26A.

57930-19B02-26A

Unavailable

3

KNOB,SHIFT LEVE | MODEL K1/K2 This part replaces 57930-19B01-291.

57930-19B02-291

$15.12

4

SCREW This part replaces 02142-04083.

02142-0408B

$1.70

5

LEVER SET, T/F SHIFT

57900-19851

Unavailable

6

BODY, T/F SHIFT

57931-19B01

Unavailable

7

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

8

PLATE, T/F SHIFT BODY | MODEL X/Y This part replaces 57940-19B20.

57940-19B30

Unavailable

8

PLATE, T/F SHIFT BODY | MODEL K1/K2

57940-19B30

Unavailable

9

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

10

ROD, T/F SHIFT STOPPER

57932-19B01

Unavailable

11

O RING, T/F SHIFT LEVER

09280-14007

$1.65

12

DUST SEAL, T/F SHIFT LEVER

09284-44001

Unavailable

13

BOLT, T/F SHIFT LEVER

09100-08142

Unavailable

14

WASHER, T/F SHIFT LEVER

09160-08016

$1.93

15

SPACER, T/F SHIFT LEVER

09180-08135

Unavailable

16

NUT This part replaces 08319-21088.

08319-2108A

$2.12

17

LEVER, REVERSE

57970-19B01

$41.63

18

KNOB,REVERSE CA This part replaces 58860-19B00-30D.

58860-19B01-30D

$9.10

19

O RING, REVERSE LEVER PIVOT

09280-12001

$2.90

20

BOLT, REVERSE LEVER PIVOT

09103-08004

$2.53

21

SPACER, REVERSE LEVER PIVOT

09180-08139

Unavailable

22

NUT This part replaces 08316-10083.

08316-1008B

$2.66
