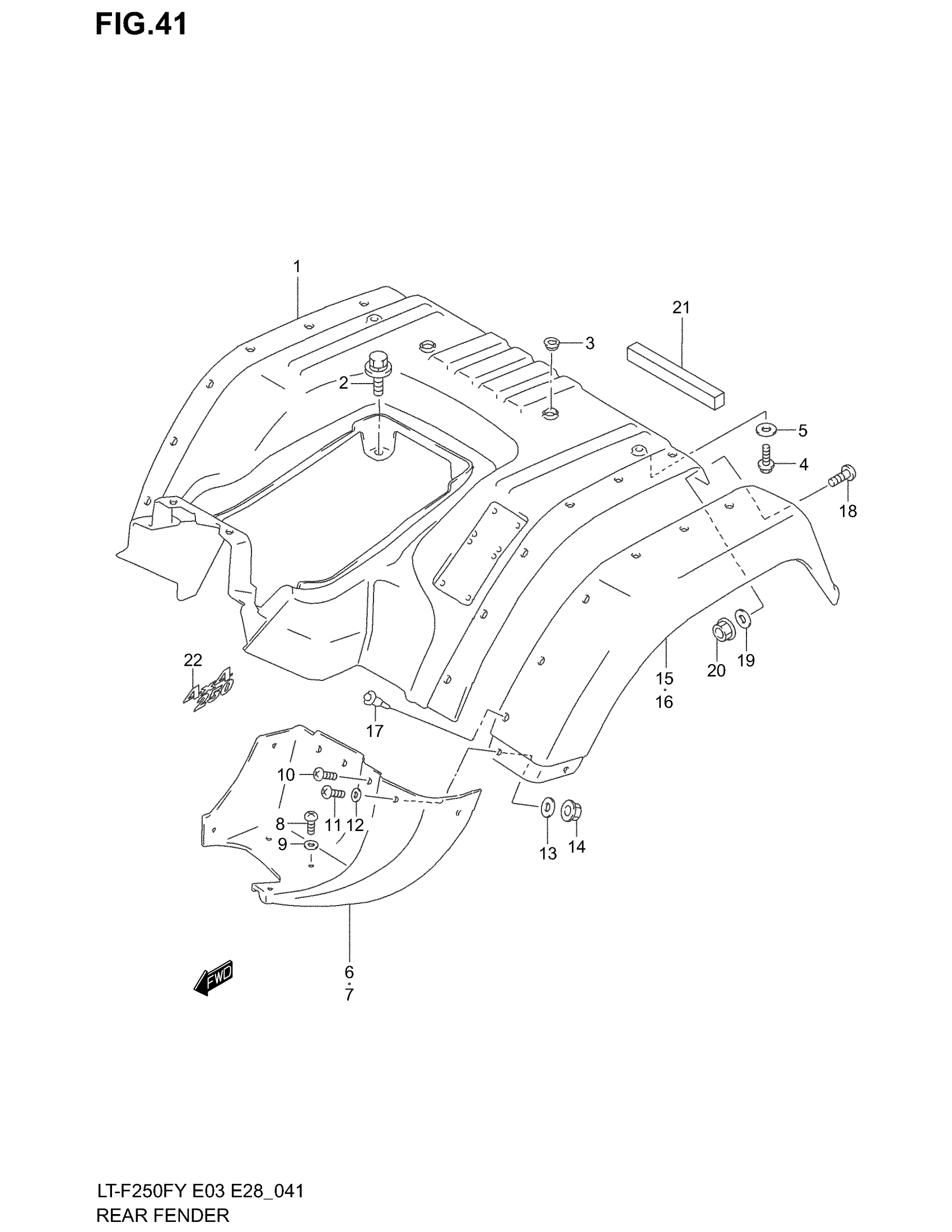

Suzuki LT-F250F (2002) REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR(BRO | MODEL X/Y This part replaces 63111-39DA0-Z34.

63111-39DA1-Z34

Unavailable

1

FENDER, REAR (GREEN) | MODEL K1

63111-39DA1-Y9N

$455.00

1

FENDER, REAR (RED) | MODEL K1

63111-39DA1-Y9P

Unavailable

1

FENDER, REAR (GREEN) | MODEL K2

63111-39DA1-YT8

$640.73

1

FENDER, REAR (RED) | MODEL K2

63111-39DA1-YT9

Unavailable

2

BOLT

09118-06006

$2.82

3

GROMMET This part replaces 09308-25003.

09308-25005

$3.88

4

BOLT This part replaces 01570-06163.

01570-0616A

$2.23

5

WASHER This part replaces 09169-06045.

09169-06055

$2.27

6

MUDGUARD, FRONT RH (BLACK)

63330-39DA0-291

$130.28

7

MUDGUARD, FRONT LH (BLACK)

63341-39DA0-291

$80.22

8

SCREW, LOWER

09139-05040

$2.38

9

WASHER

09160-08123

$2.00

10

SCREW, FRONT

09136-05038

$2.96

11

SCREW

09139-05037

$2.06

12

WASHER

09160-08123

$2.00

13

WASHER, INNER

09160-05046

$1.92

14

NUT | MODEL X/Y This part replaces 09159-05026.

09159-05043

$2.22

14

NUT | MODEL K1/K2

09159-05043

$2.22

15

MUDGUARD, REAR RH (BLACK)

63351-39DA0-291

$154.02

16

MUDGUARD, REAR LH (BLACK)

63361-39DA0-291

$154.02

17

CLIP

09409-07333

$2.31

18

SCREW, REAR

09136-05038

$2.96

19

WASHER

09160-05046

$1.92

20

NUT | MODEL X/Y This part replaces 09159-05026.

09159-05043

$2.22

20

NUT | MODEL K1/K2

09159-05043

$2.22

21

CUSHION

47161-29B00

$7.50

22

EMBLEM | MODEL K2

68171-39D10-DJ8

Unavailable
