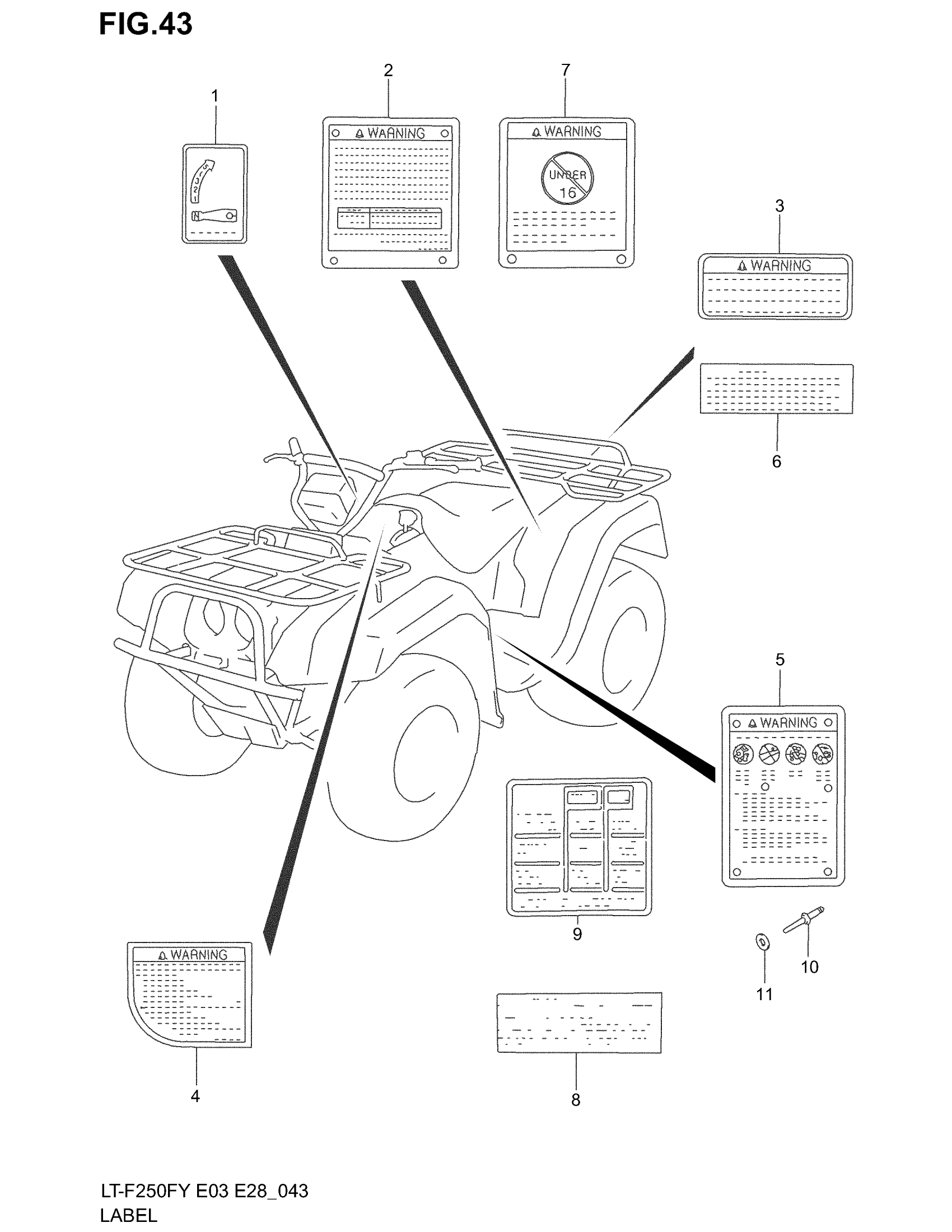

Suzuki LT-F250F (2002) LABEL Diagram

#

Description
Price

1

LABEL, GEAR SHIFT PATTERN

68392-24210

$2.92

2

LABEL, TIRE AIR | MODEL X/Y

68332-39D20

Unavailable

2

LABEL, TIRE AIR | MODEL K1

68332-39DC0

Unavailable

2

LABEL, TIRE AIR (FRENCH) | MODEL X/Y E28

68332-39D30

Unavailable

2

LABEL, TIRE AIR | MODEL K1 E28

68332-39DC0

Unavailable

2

LABEL, TIRE AIR (FRENCH) | MODEL K1 E28

68332-39DB0

Unavailable

3

LABEL,WARNING T This part replaces 68617-19B20.

68617-19B21

$7.53

3

LABEL, WARNING TRAILER (FRENCH) | E28

68617-19B30

Unavailable

4

LABEL,GEAR SHIF This part replaces 68366-39DA0.

68366-39DA1

$8.65

4

LABEL, GEAR SHIFTING (FRENCH) | E28

68366-39DB0

Unavailable

5

LABEL, GENERAL WARNING

68921-09F00

$49.42

5

LABEL,GENERAL W | E28 This part replaces 68366-20B60.

68366-20B61

$23.78

6

LABEL, NO PASSENGER

68367-09F00

$23.37

6

LBL,WARNG,NO PA | E28 This part replaces 68367-20B60.

68367-20B61

$8.15

7

LABEL, AGE,16

68931-09F00

$28.80

7

LABEL,AGE 16 | E28 This part replaces 68367-04640.

68367-04642

$6.93

8

LABEL,MANUAL NOTICE | E3,E33 This part replaces 68353-26E02.

68353-26E03

$5.05

9

LABEL, ATTENTION | E28

68366-19B70

Unavailable

10

RIVET, LABEL

68929-09F00

$3.29

11

WASHER,3.3X6X0. | MODEL X This part replaces 09160-03009.

09160-03009-XC0

$1.69

11

WASHER | MODEL Y/K1/K2

68928-09F00

$3.48

12

MANUAL, OWNER'S | MODEL X E3,E33

99011-19B70-03A

Unavailable

12

MANUAL, OWNER'S | MODEL Y E3,E33

99011-19B71-03A

Unavailable

12

MANUAL, OWNER'S | MODEL X E28

99011-19B70-28B

Unavailable

12

MANUAL, OWNER'S | MODEL Y E28

99011-19B71-28B

Unavailable

12

MANUAL, OWNER'S | MODEL K1 E3,E33

99011-19B72-03A

Unavailable

12

MANUAL, OWNER'S | MODEL K1 E28

99011-19B72-28B

Unavailable

12

MANUAL, OWNER'S | MODEL K2 E3,E33

99011-19B73-03A

Unavailable

12

MANUAL, OWNER'S | MODEL K2 E28 DRAWING NOT SHOWN

99011-19B73-28B

Unavailable
