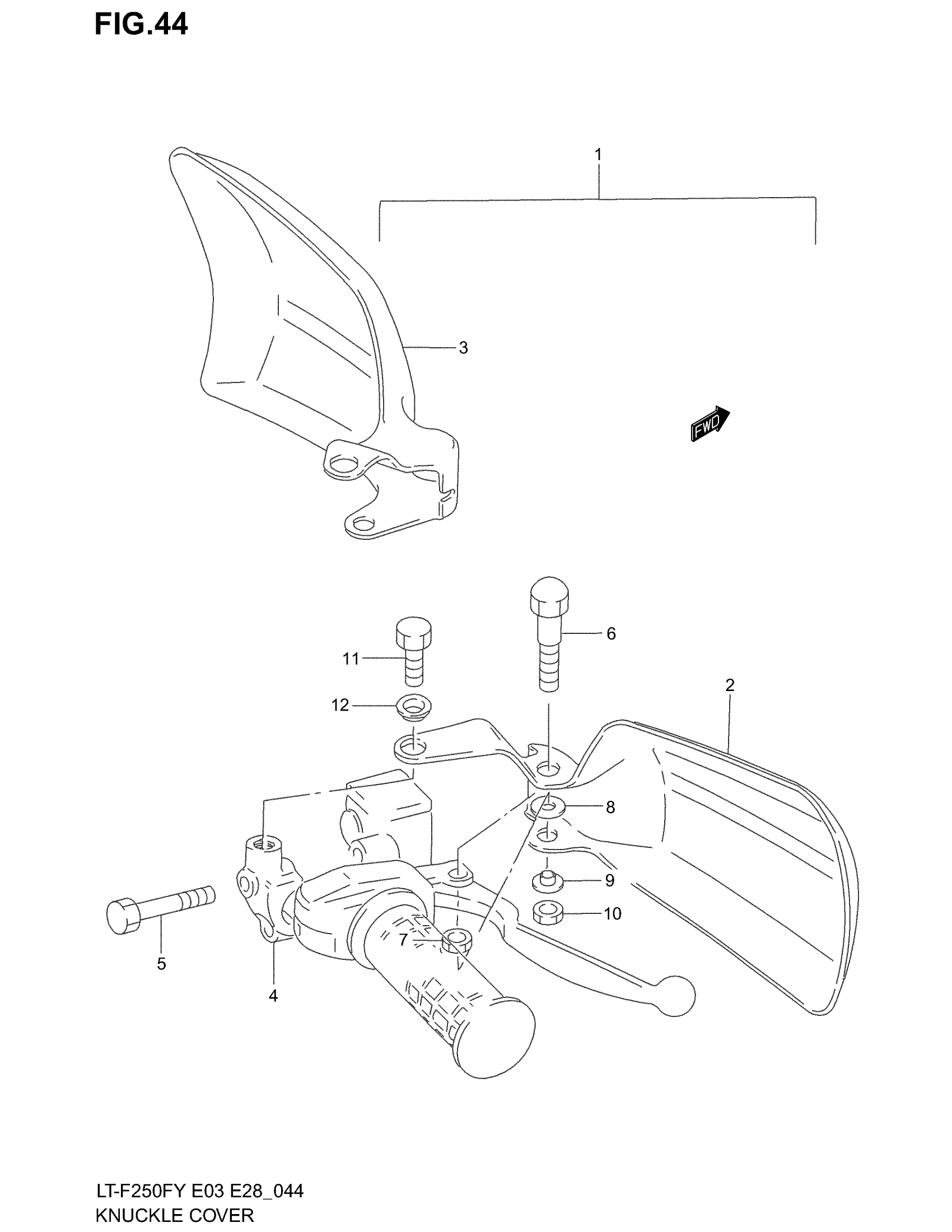

Suzuki LT-F250F (2002) KNUCKLE COVER (OPTIONAL) Diagram

#

Description
Price

1

COVER SET, KNUCKLE (BROWN) | MODEL X/Y

57300-19811-Z34

Unavailable

1

COVER SET, KNUCKLE (GREEN) | MODEL K1

57300-19811-Y9N

Unavailable

1

COVER SET, KNUCKLE (RED) | MODEL K1

57300-19811-Y9P

Unavailable

1

COVER SET, KNUCKLE (GREEN) | MODEL K2

57300-19811-YT8

Unavailable

1

COVER SET, KNUCKLE (RED) | MODEL K2; Includes Item(s) 2 - 12

57300-19811-YT9

Unavailable

2

COVER SET, KNUCKLE (BROWN) | MODEL X/Y This part replaces 57341-19B50-Z34.

57300-19811-Z34

Unavailable

2

COVER, KNUCKLE RH (GREEN) | MODEL K1

57341-19B50-Y9N

Unavailable

2

COVER, KNUCKLE RH (RED) | MODEL K1

57341-19B50-Y9P

Unavailable

2

COVER, KNUCKLE RH (GREEN) | MODEL K2

57341-19B50-YT8

Unavailable

2

COVER, KNUCKLE RH (RED) | MODEL K2

57341-19B50-YT9

Unavailable

3

COVER, KNUCKLE LH (BROWN) | MODEL X/Y

57541-19B50-Z34

Unavailable

3

COVER, KNUCKLE LH (GREEN) | MODEL K1

57541-19B50-Y9N

Unavailable

3

COVER, KNUCKLE LH (RED) | MODEL K1

57541-19B50-Y9P

Unavailable

3

COVER, KNUCKLE LH (GREEN) | MODEL K2

57541-19B50-YT8

Unavailable

3

COVER, KNUCKLE LH (RED) | MODEL K2

57541-19B50-YT9

Unavailable

4

HOLDER, MASTER CYLINDER

59671-44300

$17.37

5

BOLT This part replaces 01560-06403.

01560-0640B

$2.92

6

BOLT, LEVER PIVOT

57431-14A00

$7.95

7

NUT

09159-06015

$2.02

8

WASHER

09160-06019

$1.49

9

WASHER

09169-06033

$1.50

10

NUT

09159-06015

$2.02

11

BOLT, MIRROR STAY

09104-10036

$3.93

12

WASHER,KNUCKLE COVER UPPER,L This part replaces 09169-10010.

09169-10024

$2.42
