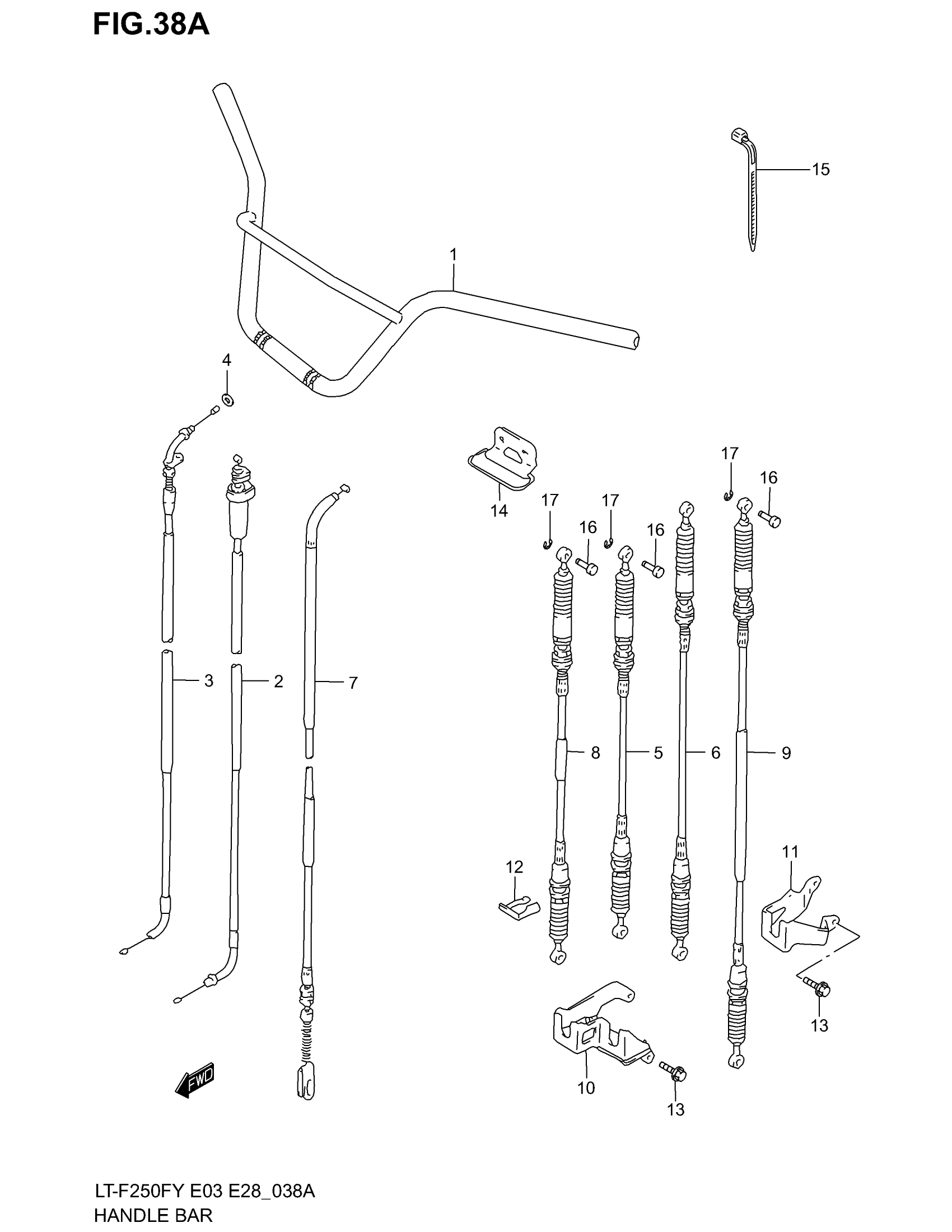

Suzuki LT-F250F (2002) HANDLEBAR - CABLE (MODEL K1/K2) Diagram

#

Description
Price

1

HANDLEBAR

56111-20B02

Unavailable

2

CABLE ASSY, THROTTLE

58300-39DB0

$30.72

3

CABLE, STARTER

58410-39DA0

$43.88

4

WASHER

09320-06503

$2.63

5

CABLE, T/M GEAR SHIFT

58680-19B21

$208.75

6

CABLE, TRANSFER SHIFT

58690-19B01

$155.28

7

CABLE, PARKING BRAKE

58810-19B02

$45.20

8

CABLE, REVERSE

58840-39DB0

Unavailable

9

CABLE, SUB T/M SHIFT

58880-39DA0

$164.38

10

BRACKET, CONTROL CABLE

58870-19B00

Unavailable

11

BRACKET, CONTROL CABLE

58873-19B11

Unavailable

12

CLIP

09383-19003

$4.68

13

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

14

GUIDE, CABLE

58620-19B10

Unavailable

15

CLAMP, L:125

09407-14403

$2.26

15

CLAMP, L:165

09407-18402

$2.19

16

PIN

09208-08008

$2.53

17

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49
