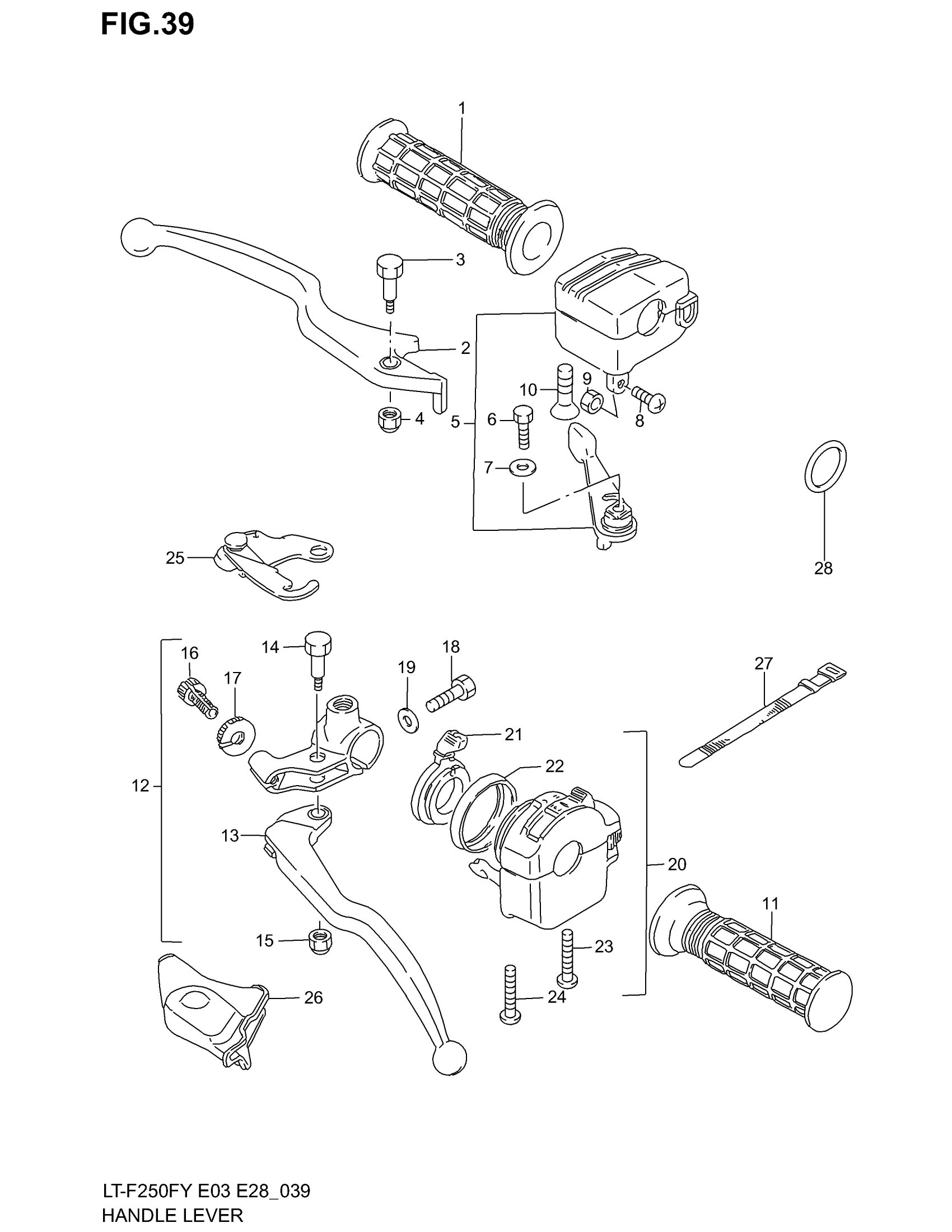

Suzuki LT-F250F (2002) HANDLE LEVER (MODEL X/Y/K1) Diagram

#

Description
Price

1

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

$11.75

2

LEVER, BRAKE

57421-39D10

$36.03

3

BOLT This part replaces 57431-13030.

09111-06075

$7.42

4

NUT,LEVER PIVOT

57433-09F00

$3.56

5

CASE ASSY, THROTTLE | MODEL X This part replaces 57100-39DA0.

57100-39DB0

$114.20

5

CASE ASSY, THROTTLE | MODEL Y/K1; Includes Item(s) 6 - 10

57100-39DB0

$114.20

6

BOLT

01500-06167

$1.97

7

LOCK WASHER

08321-01067

$2.13

8

SCREW

09125-05066

$1.65

9

NUT

09140-05006

$2.19

10

SCREW

02132-05307

$1.50

11

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

$11.75

12

LEVER ASSY, REAR BRAKE | Includes Item(s) 13 - 19

57500-24502

Unavailable

13

LEVER

57620-24501

Unavailable

14

BOLT

57431-29502

$7.67

15

.NUT This part replaces 08319-21063.

08319-2106B

$2.32

16

ADJUSTER

57441-44400

$6.28

17

NUT This part replaces 57442-44400.

57442-11010

$2.79

18

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

19

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

20

SWITCH ASSY,HAN | Includes Item(s) 21 - 24 This part replaces 37400-19B11.

37400-19B13

$176.37

21

LEVER, CHOKE

37571-19B01

$12.15

22

COVER, CHOKE

37576-19B01

$6.79

23

SCREW This part replaces 02112-05403.

02112-0540B

$2.70

24

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

25

STOPPER, BRAKE

57790-19B00

Unavailable

26

COVER, BRAKE DUST

57541-29501

$10.23

27

BAND

09407-12402

$3.04

28

O RING

09280-24009

$8.10
