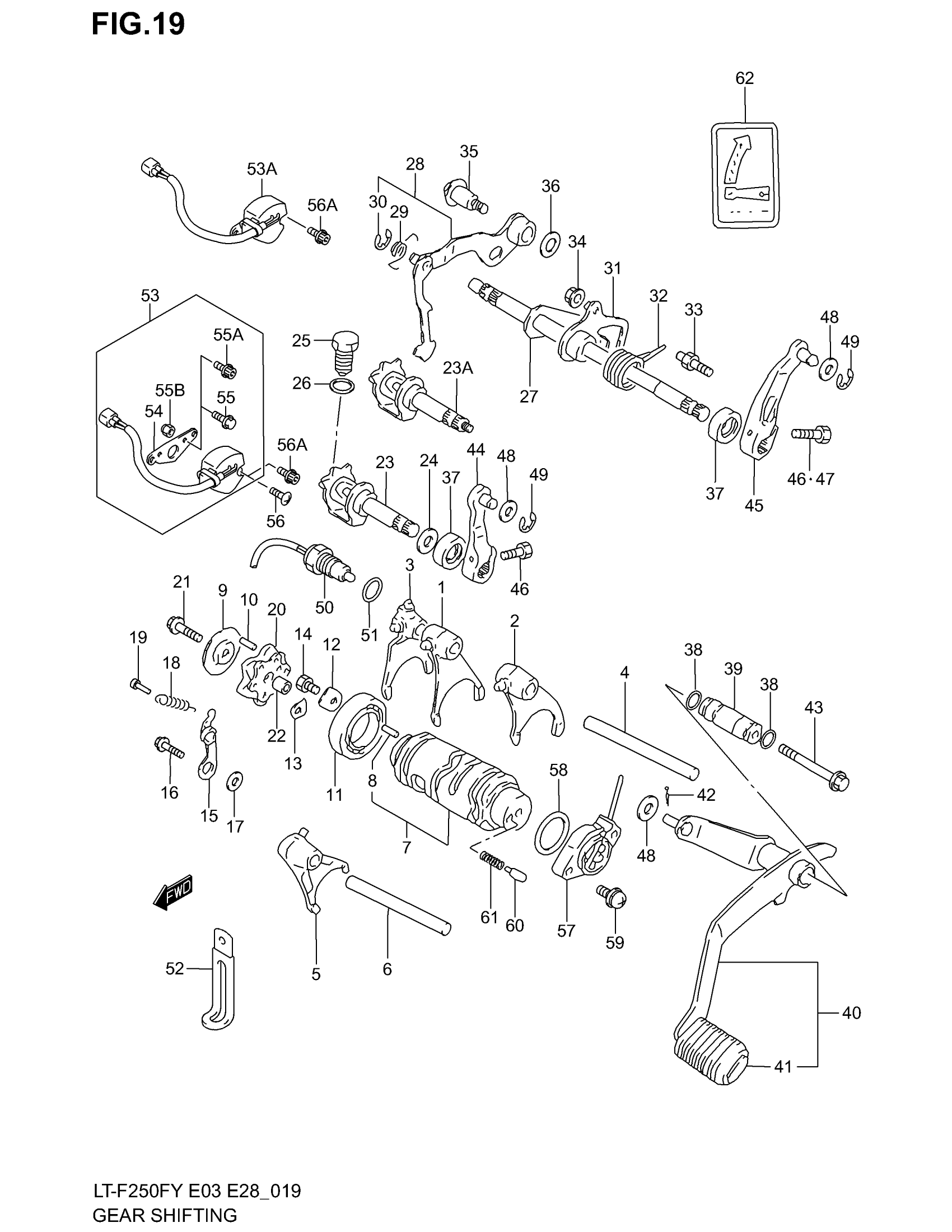

Suzuki LT-F250F (2002) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING, NO.1

25211-19B00

$87.70

2

FORK, GEAR SHIFTING, NO.2

25221-19B00

$74.56

3

FORK, GEAR SHIFTING, NO.4

25241-19B00

Unavailable

4

SHAFT, NO.1

25411-24501

Unavailable

5

FORK, GEAR SHIFTING, NO.3

25231-19B00

$87.70

6

SHAFT, NO.2

25411-14331

$23.07

7

CAM, GEAR SHIFTING | Includes Item(s) 8

25310-19B02

Unavailable

8

PIN (4X13.8)

04221-04089

$1.49

9

RETAINER, PIN

25322-19B00

Unavailable

10

ROLLER (4X13.8)

09261-04002

$1.72

11

BEARING (25X47X8)

09262-25006

$25.54

12

RETAINER

25341-19B00

Unavailable

13

RETAINER

24741-21A00

$2.81

14

SCREW (6X12)

09125-06110

$2.12

15

STOPPER, CAM

25350-19B00

Unavailable

16

BOLT (6X14.6) | MODEL X/Y

09111-06054

$3.70

16

BOLT (6X14.6) | MODEL K1/K2

09111-06073

Unavailable

17

WASHER

08211-06141

$1.59

18

SPRING

09443-06067

Unavailable

19

PIN

09223-04001

$1.68

20

PLATE, STOPPER

25381-20A00

$20.45

21

BOLT | MODEL X/Y/K1 This part replaces 01550-06253.

01550-0625A

$1.97

21

BOLT | MODEL K2 This part replaces 09103-06084.

09103-06282

$2.50

22

PIN

04211-09109

$1.65

23

CAM, REVERSE SHIFTING | MODEL X This part replaces 25320-19B01.

25320-19B10

Unavailable

23A

CAM, REVERSE SHIFGING | MODEL Y/K1/K2

25320-19B10

Unavailable

24

WASHER This part replaces 08211-12183.

08211-1218A

$2.47

25

STOPPER, CAM

25350-11000

Unavailable

26

GASKET (13.8X18.8X0.4)

09168-14002

$2.26

27

SHAFT, GEAR SHIFTING NO.1

25510-19B00

Unavailable

28

ARM, GEAR SHIFTING NO.2 | Includes Item(s) 29 - 30

25520-19B01

Unavailable

29

SPRING

09448-13006

$2.53

30

E RING This part replaces 08332-11073.

08332-1107A

$1.78

31

ARM, LINK

25540-19B01

Unavailable

32

SPRING

09444-26025

$5.33

33

STOPPER, ARM | MODEL X/Y This part replaces 25671-24500.

25671-24501

Unavailable

33

STOPPER, ARM | MODEL K1/K2

25671-24501

Unavailable

34

ROLLER

09180-07014

$4.11

35

BOLT (8X30.3)

09103-08193

Unavailable

36

WASHER

08211-08201

$2.03

37

OIL SEAL (12X22X9)

09285-12006

$6.32

38

O RING (D:1.5,ID:10)

09280-10012

$2.28

39

COLLAR

25661-19B00

$14.76

40

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 41

25600-19B70

$70.13

41

COVER

25652-24401

$5.05

42

PIN This part replaces 04111-25158.

04111-2515A

$1.49

43

BOLT This part replaces 01550-06553.

01550-0655B

$3.30

44

ARM

25640-19B00

$69.38

45

ARM, GEAR SHIFTING CABLE

25630-19B70

$67.73

46

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78

47

BOLT This part replaces 01500-08253.

01500-0825A

$2.19

48

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

49

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

50

SWITCH ASSY, REVERSE | MODEL X

37600-19B03

$74.17

51

O RING (D:3.2,ID:15.8) | MODEL X

09280-16008

$2.02

52

CLAMP (L:125) | MODEL X

09407-14403

$2.26

53

SWITCH ASSY, REVERSE | MODEL Y This part replaces 37600-39D10.

37600-39D20

$105.82

53

SWITCH ASSY, REVERSE | MODEL K1 This part replaces 37600-39D11.

37600-39D20

$105.82

53A

SWITCH ASSY, REVERSE | MODEL K2; Includes Item(s) 54 - 55B

37600-39D20

$105.82

54

BRACKET, REVERSE SWITCH | MODEL Y/K1

37641-39D10

Unavailable

55

BOLT | MODEL Y This part replaces 01547-05103.

01547-0510B

$2.97

55A

BOLT | MODEL K1 This part replaces 07120-05203.

07120-0520B

Unavailable

55B

.NUT This part replaces 08319-21053.

08319-2105A

$2.19

56

SCREW | MODEL Y This part replaces 02142-05163.

02142-0516A

$1.49

56A

BOLT | MODEL K1/K2 This part replaces 07120-05103.

07120-0510B

$3.05

57

SWITCH, GEAR SHIFTING | MODEL X/Y/K1 This part replaces 37720-24501.

37720-24502

$54.06

57

BASE ASSY, NEUT SW | MODEL K2

37720-24502

$54.06

58

O RING (D:2.4,ID:26.2)

09280-26005

$2.30

59

SCREW This part replaces 02112-75203.

02112-7520A

$2.90

60

CONTACT

09209-05011

$2.20

61

SPRING

09440-04010

$1.54

62

LABEL, GEAR SHIFT

68392-24210

$2.92

62

LABEL, GEAR SHIFT | E28

68392-24220

$3.25
