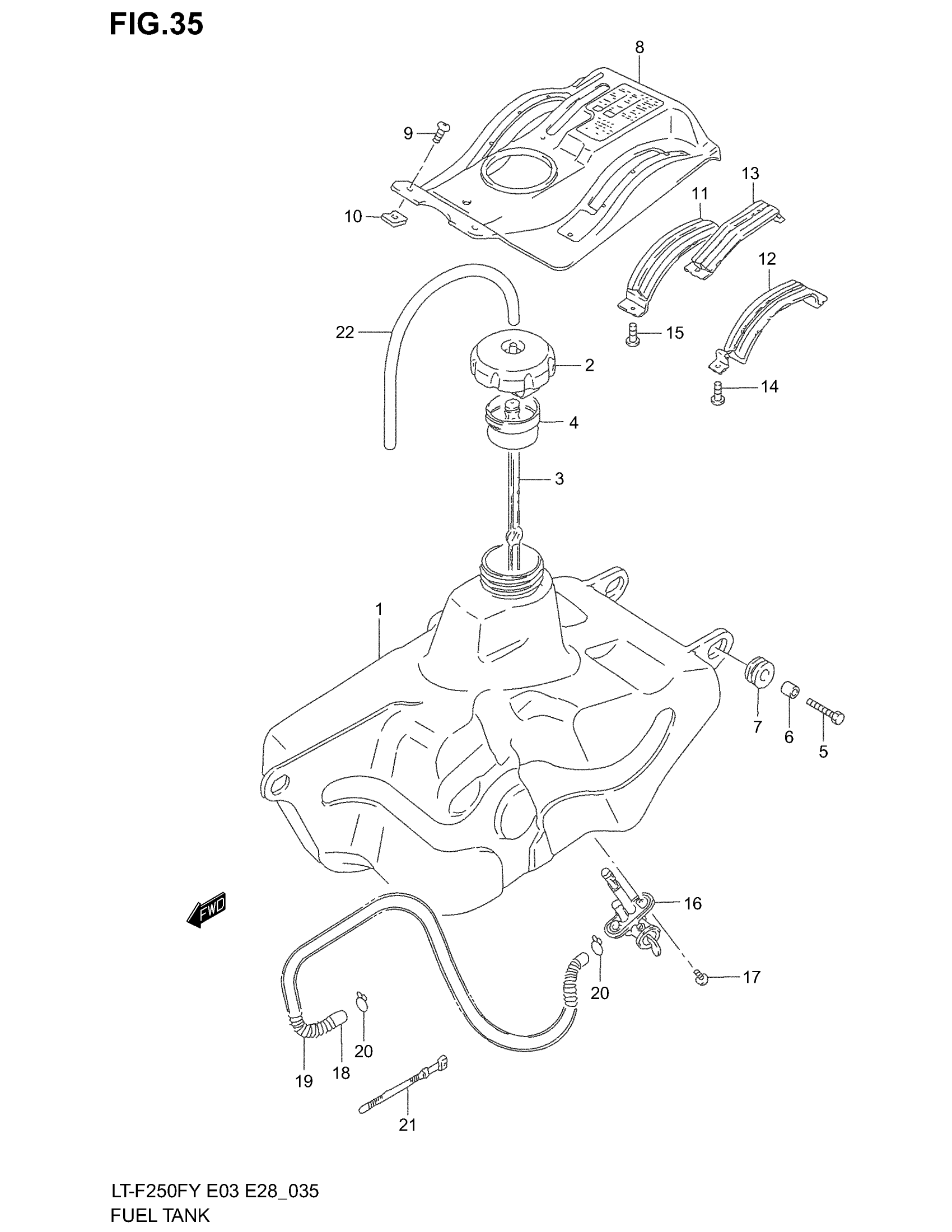

Suzuki LT-F250F (2002) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL | MODEL X/Y This part replaces 44110-19B00.

44110-19B01

Unavailable

1

TANK, FUEL | MODEL K1/K2

44110-19B01

Unavailable

2

CAP, FUEL TANK

44200-19B00

$44.39

3

GAGE,FUEL This part replaces 44501-19B00.

44501-19B01

$6.37

4

TUBE, FILLER INLET

44199-19A00

$6.28

5

BOLT | MODEL X/Y

09118-08121

Unavailable

5

BOLT (8X35) | MODEL K1/K2 This part replaces 09112-08009.

09118-08080

$3.03

6

SPACER

09180-08209

$3.04

7

CUSHION

09320-12016

$2.11

8

COVER, FUEL TANK

44270-39DA0

$302.03

9

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

10

NUT

09148-05038

$1.97

11

PLATE,LEVER SEA This part replaces 57950-19B00.

57950-19B01

$16.63

12

PLATE,LEVER SEA This part replaces 57990-19B00.

57990-19B01

$17.20

13

PLATE,REVERSE L This part replaces 44310-19B00.

44310-19B01

$11.07

14

SCREW This part replaces 03211-04103.

03211-0410A

Unavailable

15

SCREW This part replaces 03511-04103.

03511-0410A

$1.75

16

COCK ASSY,FUEL | MODEL X/Y This part replaces 44300-19B22.

44300-19B23

$90.18

16

COCK ASSY,FUEL | MODEL K1/K2 This part replaces 44300-19B30.

44300-19B31

Unavailable

17

SCREW This part replaces 02112-36163.

02112-3616A

$1.97

18

HOSE,5X10X600 | MODEL X/Y This part replaces 09355-50105-600.

44421-13ER0

$10.06

18

HOSE, FUEL (L:600!280) | MODEL K1/K2

09355-54115-600

$14.59

19

SPRING

09440-13051

$10.76

20

CLIP | MODEL X

09401-10402

$2.42

20

CLIP | MODEL Y

09401-10403

$1.65

20

CLIP | MODEL K1/K2

09401-11413

$2.26

21

CLAMP

09407-14403

$2.26

22

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06
