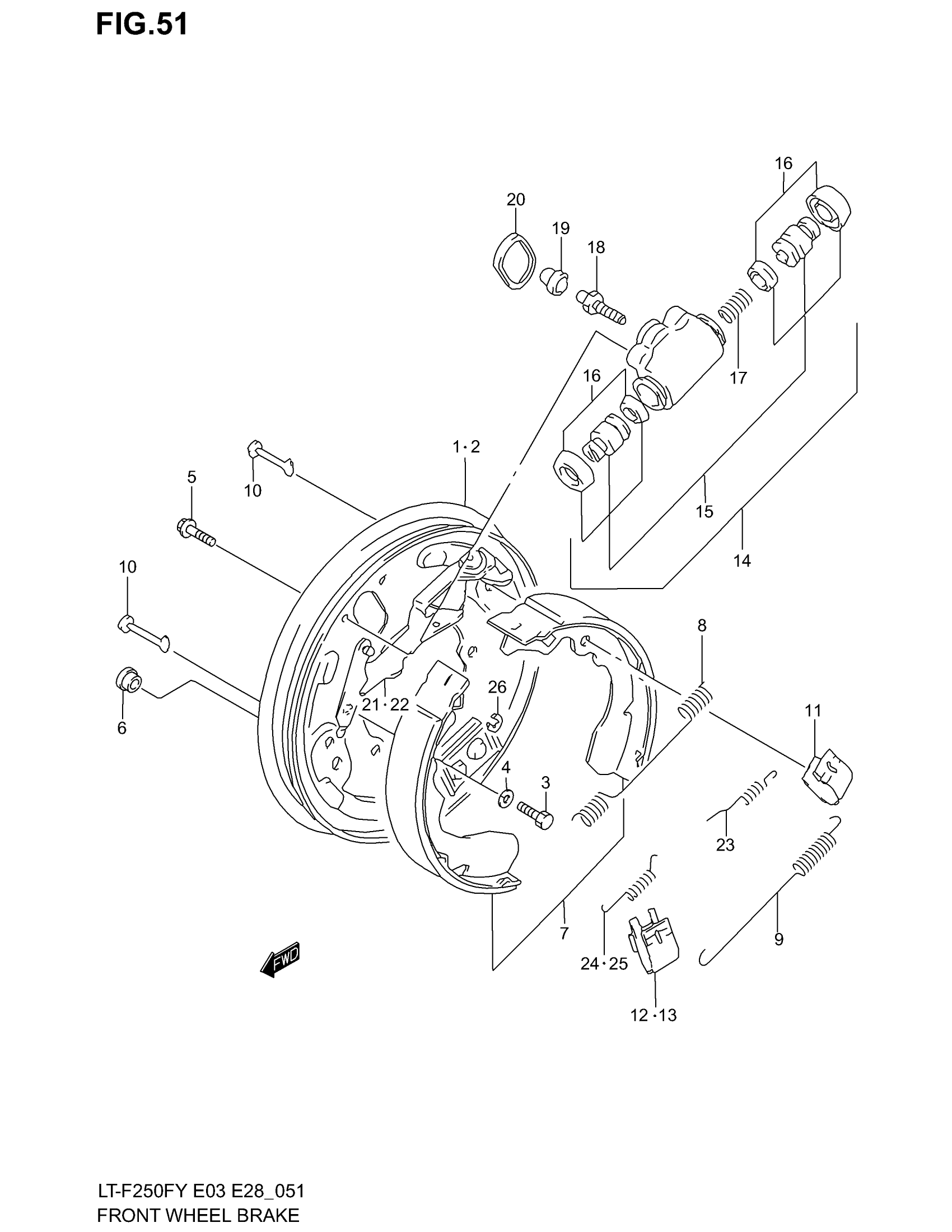

Suzuki LT-F250F (2002) FRONT WHEEL BRAKE Diagram

#

Description
Price

1

PLATE, BACKING RH

54510-19B20

Unavailable

2

PLATE, BACKING LH

54810-19B20

Unavailable

3

PLUG, DRAIN This part replaces 01500-08163.

01500-0816B

$2.50

4

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.84

5

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

6

PLUG, BACKING PLATE

54515-39D00

$2.93

7

SHOE SET, BRAKE

54400-19830

$37.88

8

SPRING, SHOE RETURN UPPER

54531-19B01

$8.38

9

SPRING, SHOE RETURN LOWER

54532-19B01

$8.25

10

PIN, SHOE HOLD DOWN

53241-82030

$2.94

11

SPRING, SHOE HOLD DOWN

53243-85010

$5.13

12

SPRING, SHOE HOLD DOWN RH

53245-82031

$7.42

13

SPRING, SHOE HOLD DOWN LH

53244-82031

$7.52

14

CYLINDER ASSY, REAR WHEEL | Includes Item(s) 15 - 19

54540-19B10

$94.47

15

PISTON SET

54500-19810

Unavailable

16

CUP SET, WHEEL CYLINDER

53400-82811

$15.10

17

SPRING, WHEEL CYLINDER

53432-82030

$3.58

18

PLUG, BLEEDER

54542-19B00

$6.91

19

CAP, BLEEDER PLUG

55156-66310

$5.17

20

GASKET, REAR WHEEL CYLINDER

53417-82030

$2.94

21

STRUT ASSY, BRAKE RH

54550-19B10

Unavailable

22

STRUT ASSY, BRAKE LH

54850-19B10

Unavailable

23

SPRING,QUADRANT This part replaces 53714-82030.

53714-8203V

$3.62

24

SPRING, ANTIRATTLE RH

54524-56B00

$4.37

25

SPRING, ANTIRATTLE LH

54824-56B00

$4.37

26

E RING This part replaces 08332-11043.

08332-1104A

$1.49
