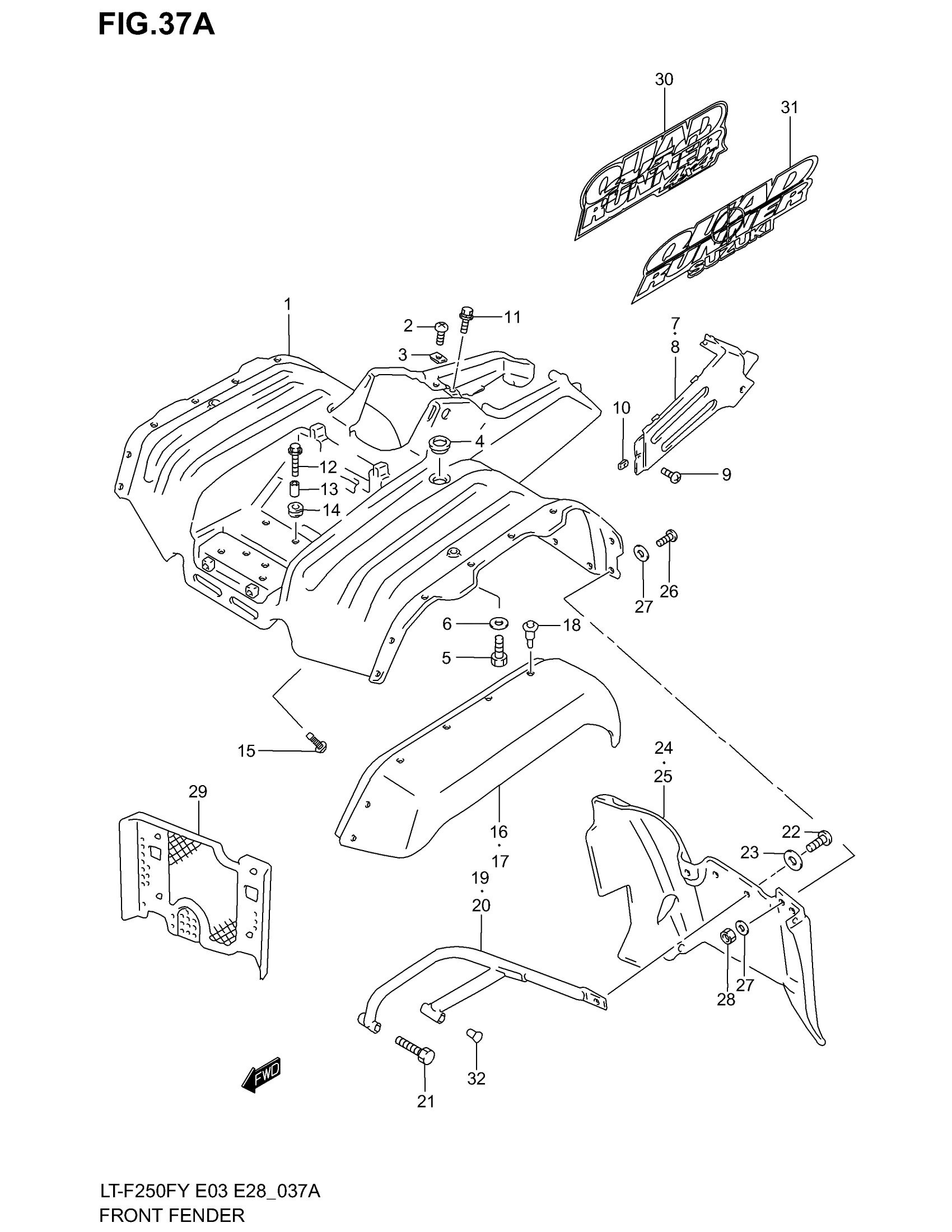

Suzuki LT-F250F (2002) FRONT FENDER (MODEL K1/K2) Diagram

#

Description
Price

1

FENDER, FRONT (GREEN) | MODEL K1

53111-39DA0-Y9N

Unavailable

1

FENDER, FRONT (RED) | MODEL K1

53111-39DA0-Y9P

Unavailable

1

FENDER, FRONT (GREEN) | MODEL K2

53111-39DA0-YT8

Unavailable

1

FENDER, FRONT (RED) | MODEL K2

53111-39DA0-YT9

Unavailable

2

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

3

NUT

09148-05038

$1.97

4

GROMMET This part replaces 09308-25003.

09308-25005

$3.88

5

BOLT This part replaces 01570-06163.

01570-0616A

$2.23

6

WASHER

09169-06041

$2.20

7

COVER, FENDER SIDE RH (BLACK)

53112-39DA0-291

$150.94

8

COVER, FENDER SIDE LH (BLACK)

53122-39DA0-291

$127.06

9

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$1.97

10

NUT

09148-05038

$1.97

11

BOLT, UPPER

09118-06019

$2.92

12

BOLT, FRONT

09116-06025

$2.44

13

SPACER

09180-06120

$2.32

14

CUSHION

09320-11008

$2.60

15

SCREW This part replaces 03241-15203.

03241-1520B

$2.93

16

MUDGUARD, RH (BLACK)

53331-39DA0-291

$91.90

17

MUDGUARD, LH (BLACK)

53332-39DA0-291

$90.20

18

CLIP

09409-07333

$2.31

19

BRACE, RH

53210-39DA0

Unavailable

20

BRACE, LH

53240-39DA0

Unavailable

21

BOLT This part replaces 01560-06403.

01560-0640B

$2.92

22

SCREW, MUD FLAP

09139-05037

$2.06

23

WASHER

09160-08123

$2.00

24

MUD FLAP, RH (BLACK)

53311-39DA0-291

$128.72

25

MUD FLAP, LH (BLACK)

53312-39DA0-291

$128.72

26

SCREW

09136-05038

$2.96

27

WASHER

09160-05046

$1.92

28

NUT

09159-05043

$2.22

29

GUARD, MUFFLER FRONT

53310-20B12

$91.95

30

EMBLEM | MODEL K1

68151-39DM0-EC1

Unavailable

31

EMBLEM | MODEL K2

68111-09F30-YW2

Unavailable

32

PLUG, BRACE | OPT

09250-10006

$2.38
