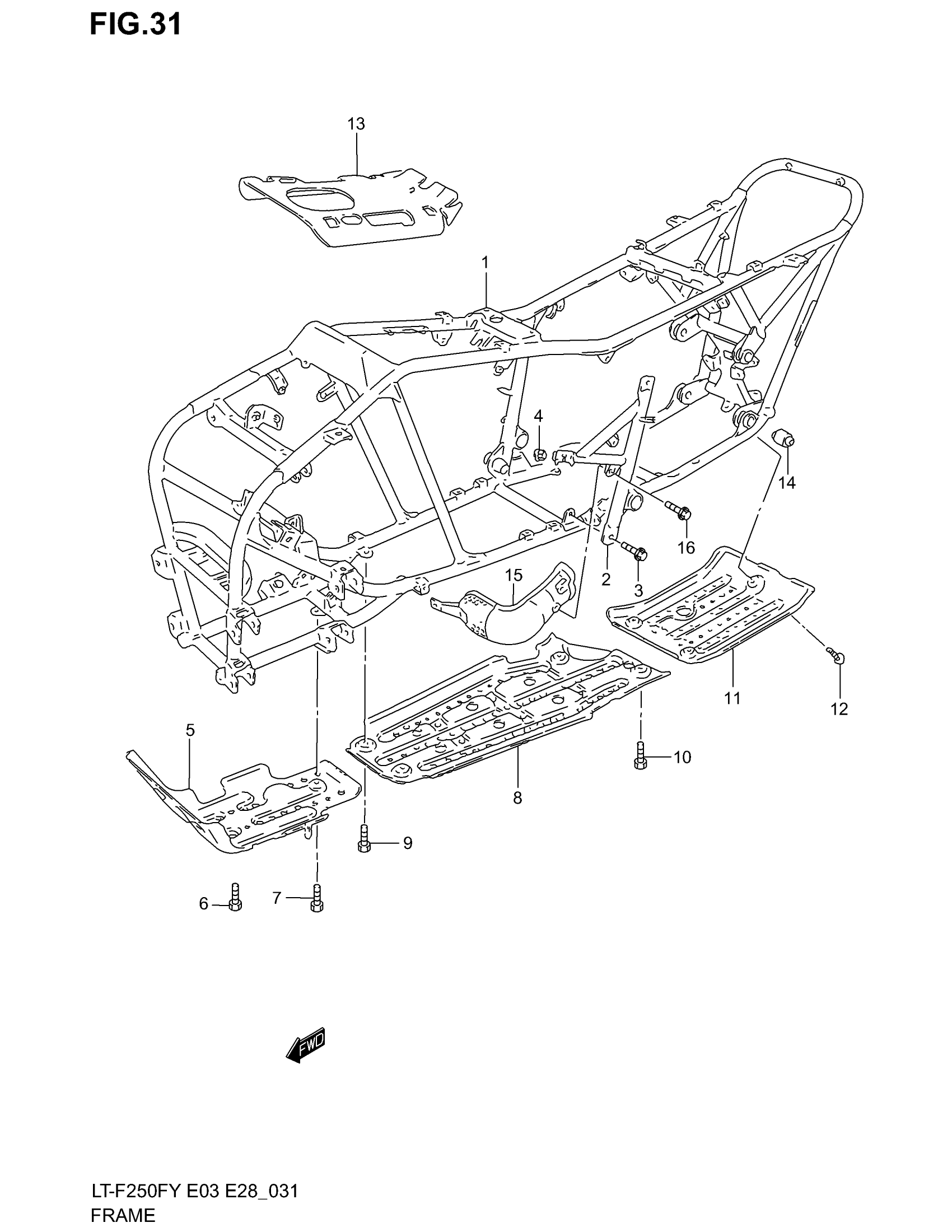

Suzuki LT-F250F (2002) FRAME Diagram

#

Description
Price

1

FRAME SET (BLACK) | MODEL X This part replaces 41101-19814-019.

41101-19815-019

Unavailable

1

FRAME SET (BLACK) | MODEL Y

41101-19815-019

Unavailable

1

FRAME SET (BLACK) | MODEL K1/K2; Includes Item(s) 2 - 3

41101-19850-019

Unavailable

2

BAR, MOUNTING FRONT (BLACK)

41910-39D00-019

Unavailable

3

BOLT

09103-10165

$4.62

4

CAP

43978-24500

$8.42

5

PROTECTOR, FRONT | MODEL X/Y This part replaces 42510-19B11.

42510-19B12

$149.42

5

PROTECTOR, FRONT | MODEL K1/K2

42510-19B12

$149.42

6

BOLT This part replaces 01580-06123.

01580-0612A

$2.32

7

BOLT | MODEL X/Y This part replaces 01580-06163.

01580-0616A

$2.42

7

BOLT | MODEL K1/K2 This part replaces 01580-06123.

01580-0612A

$2.32

8

PROTECTOR, MIDDLE | MODEL X/Y This part replaces 42560-19B02.

42560-19B03

Unavailable

8

PROTECTOR, MIDDLE | MODEL K1/K2

42560-19B03

Unavailable

9

BOLT, REAR | MODEL X This part replaces 01580-06203.

01580-0620B

$3.30

9

SCREW | MODEL Y/K1/K2 This part replaces 02162-06253.

02162-0625A

$1.78

10

BOLT | MODEL X This part replaces 01580-06163.

01580-0616A

$2.42

10

SCREW | MODEL Y This part replaces 02162-06163.

02162-0616B

$2.03

10

SCREW, REAR SIDE BRKT | MODEL K1/K2 This part replaces 02162-06123.

02162-0612A

$2.05

11

PROTECTOR, ENGINE | MODEL X/Y This part replaces 61390-19B01.

61390-19B02

$125.61

11

PROTECTOR, ENGINE | MODEL K1/K2

61390-19B02

$125.61

12

BOLT | MODEL X/Y This part replaces 01580-06163.

01580-0616A

$2.42

12

BOLT | MODEL K1K2 This part replaces 01580-06123.

01580-0612A

$2.32

13

NO DESCRIPTION AVAILABLE This part replaces 47157-19B10.

47157-19B11

Unavailable

14

BUSH

09319-10064

$21.22

15

COVER, MUD

42570-39D00

Unavailable

16

BOLT This part replaces 01580-06123.

01580-0612A

$2.32
