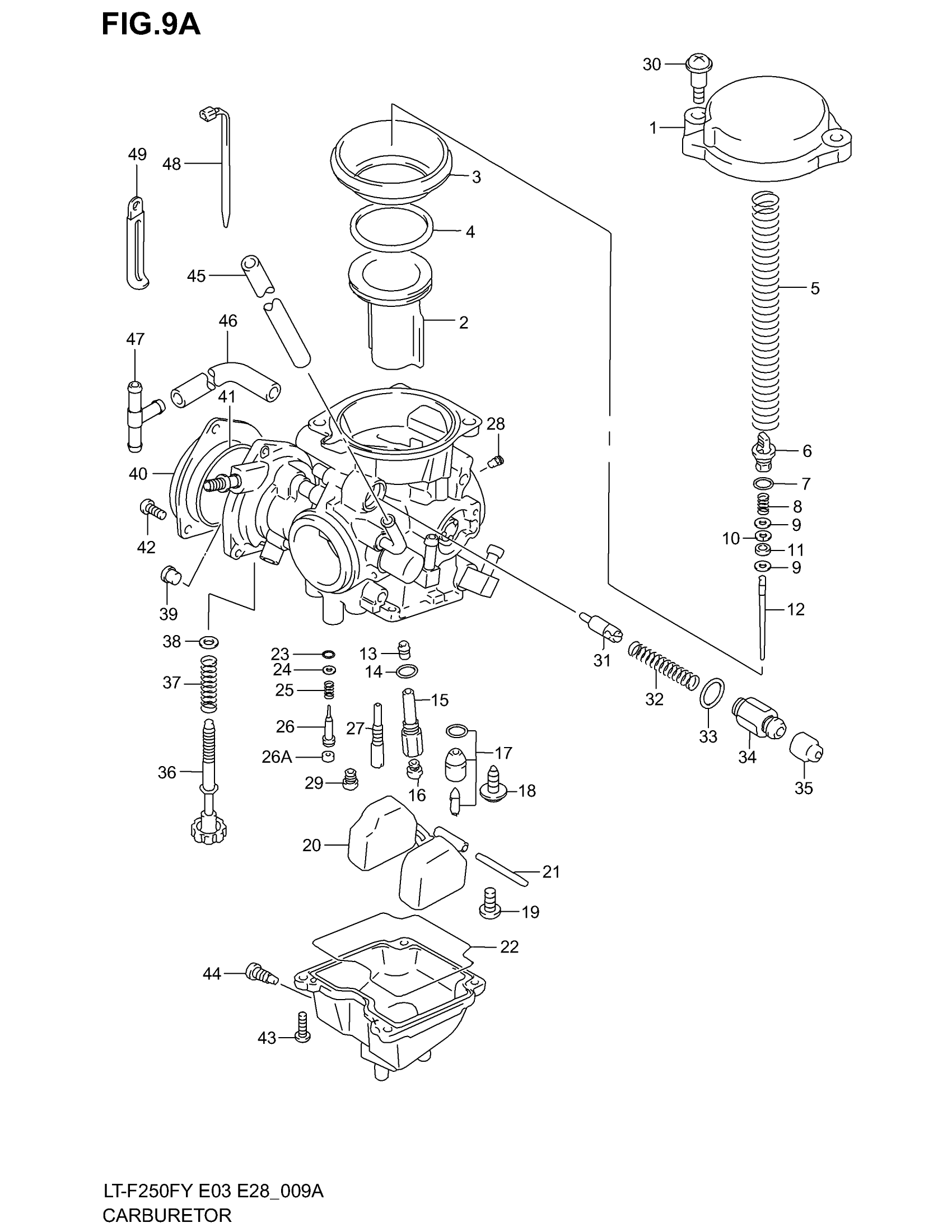

Suzuki LT-F250F (2002) CARBURETOR (MODEL Y/K1/K2) Diagram

#

Description
Price

CARBURETOR ASSY This part replaces 13200-20B00.

13200-20B02

Unavailable

CARBURETOR ASSY | E33; Includes Item(s) 1 - 46 This part replaces 13200-20B20.

13200-20B22

Unavailable

1

DIAPHRAGM COVER ASSY

13502-20B00

$49.42

2

VALVE, PISTON

13501-19E30

$88.55

3

DIAPHRAGM This part replaces 13507-20B00.

13507-20B01

$43.68

4

RING

13504-16E00

$5.30

5

SPRING

13573-04F00

$13.67

6

HOLDER

13418-33E00

$5.68

7

O RING (D:1.9,ID:4.8)

09280-05004

$2.11

8

SPRING

13481-04F00

$3.56

9

WASHER

13382-12F40

$4.35

10

E RING, MULTIPLE JET NOZZLE

13394-17E60

$1.80

11

RING

13387-13F00

$8.17

12

NEEDLE, JET (5D111-3)

13383-20B00

Unavailable

12

NEEDLE, JET (5D114-1) | E33

13383-20B20

Unavailable

13

JET, NEEDLE (P-0M)

09494-00921

$42.71

14

.O RING This part replaces 13246-43010.

13246-43011

$4.34

15

HOLDER, JET

13385-13F00

$34.15

16

JET, MAIN (117.5)

09491-23019

$12.57

17

VALVE ASSY,NEED This part replaces 13370-33E80.

13370-33E81

$55.10

18

SCREW

13602-05A10

$3.56

19

SCREW This part replaces 02112-04083.

02112-0408A

$1.49

20

FLOAT ASSY

13250-04F00

$34.73

21

.PIN, FLOAT

13254-01010

$3.62

22

GASKET

13258-04F00

$9.89

23

O-RING This part replaces 13295-29900.

13295-29901

$4.34

24

WASHER

13291-29900

$1.98

25

SPRING,THROTTLE SCREW

13268-48700

$4.34

26

ADJUSTER (2 3/4)

13279-20B00

$12.57

26A

PLUG | E33

13281-05A00

$4.60

27

JET, PILOT (15)

09492-15017

$17.74

28

JET, PILOT AIR (160)

09493-32007

$16.87

29

JET, MAIN (67.5)

09491-67004

Unavailable

30

SCREW

13247-33E00

$2.92

31

PLUNGER ASSY

13411-20B00

Unavailable

32

SPRING

13417-07F00

$7.22

33

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

34

HOLDER, GUIDE

13418-07F00

$14.22

35

.CAP This part replaces 13681-04010.

13681-04011

$4.93

36

ADJUST SCREW

13267-20B00

$14.70

37

SPRING

13268-03110

$5.45

38

O RING

13278-45010

$6.30

39

GUIDE, CABLE

13591-19B50

$10.28

40

COVER

13502-02C10

$14.40

41

O RING

13673-02C10

$26.72

42

SCREW This part replaces 02112-04063.

02112-0406B

$1.55

43

SCREW

02112-04107

$1.55

44

SCREW, DRAIN

13247-02340

$4.99

45

HOSE(4.5X8X650) This part replaces 13683-20B00.

13683-20B01

$20.73

46

HOSE, AIR VENT (7X11)

13686-20B00

Unavailable

47

UNION, 3 WAY

09367-08004

$4.83

48

CLAMP, BOOST HOSE

09407-14403

$2.26

49

CLAMP, AIR VENT HOSE

09404-06435

$3.68
