Description

Price

1

BATTERY ASSY (12V,14AH) | MODEL X This part replaces 33610-24560.

33610-24500

$82.47

1

BATTERY ASSY (12V,14AH) | MODEL Y/K1/K2

33610-24500

$82.47

1

BATTERY ASSY (12V,20AH) | E28

33610-24580

Unavailable

1

BATTERY ASSY (12V,20AH) | OPT,E3

33610-24580

Unavailable

2

HOSE,BATTERY EX | L:780!550 This part replaces 33680-16A10.

33680-16A11

$6.78

3

BAND, BATTERY | E3

09462-00040

$5.76

4

BAND, BATTERY | E28

09462-00087

$9.72

4

BAND, BATTERY | OPT,E3

09462-00087

$9.72

5

LEAD WIRE, BATTERY (+) | Includes Item(s) 6

33820-19B02

$22.28

6

CAP, BATTERY (+)

33624-05A00

$5.72

7

LEAD WIRE, BATTERY (-)

33860-19B00

$25.75

8

CUSHION, BATTERY

33652-19B00

$6.03

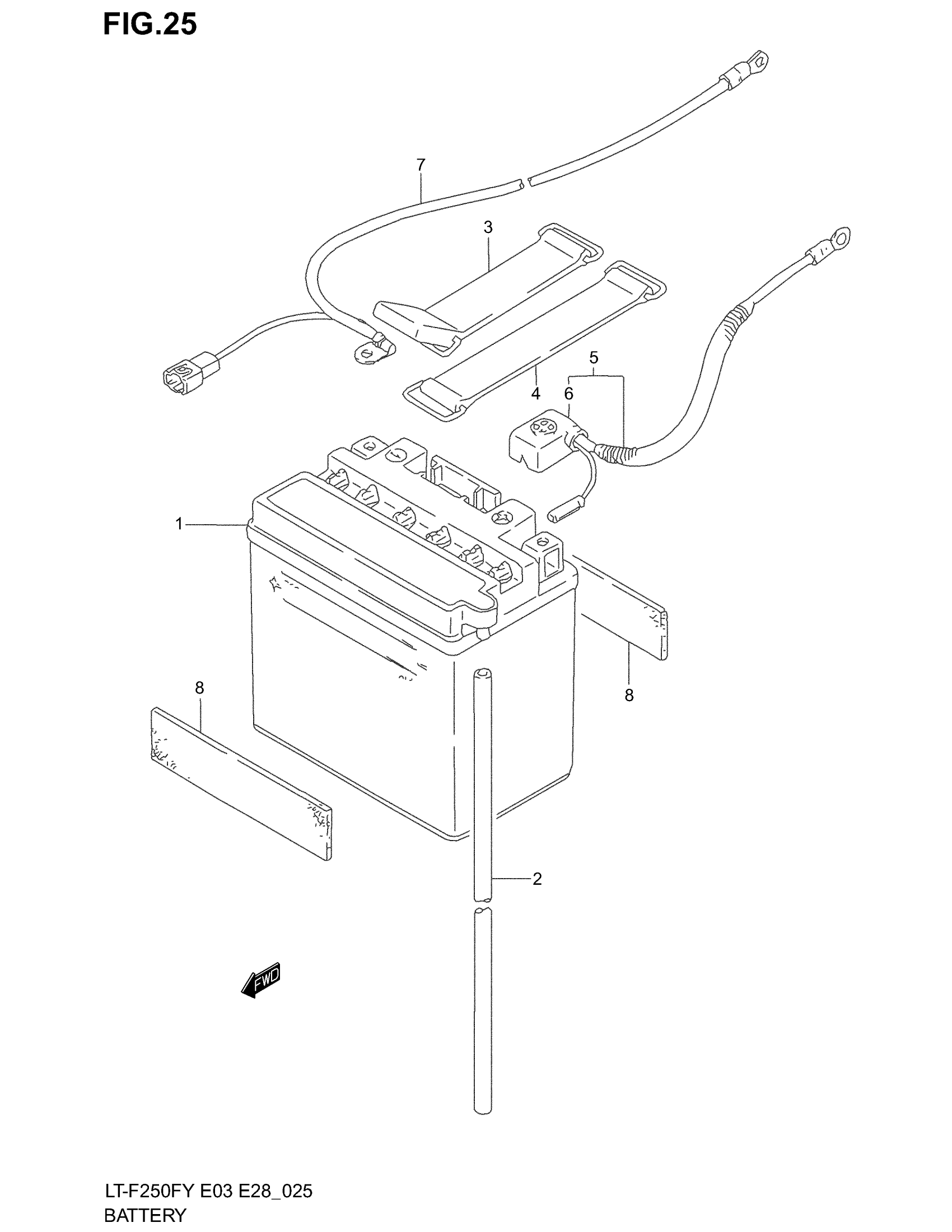

Suzuki LT-F250F (2002) BATTERY Diagram
