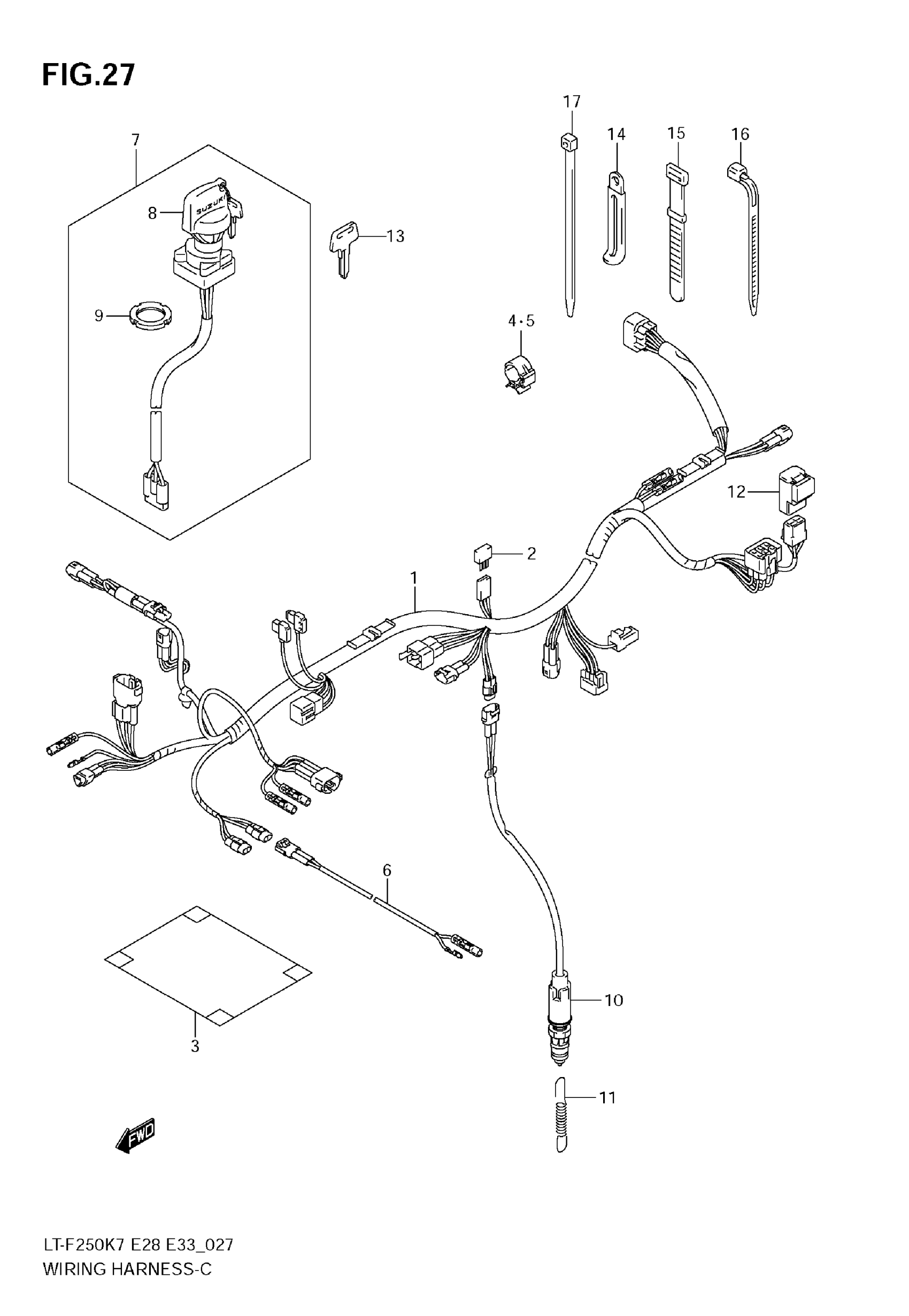

Suzuki LT-F250 (2009) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2

36610-05G20

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

COVER WIRING HARNESS | 160X200X0.2 This part replaces 36618-15D20.

36618-15D21

$18.87

4

CLAMP (ID:15)

09403-15405

$2.72

5

CLAMP (ID:25)

09403-25401

Unavailable

6

WIRE,BRAKE SW L This part replaces 36856-35B00.

36856-35B01

$8.60

7

SWITCH ASSY,IGN | Includes Item(s) 8 - 9 This part replaces 37110-05G00.

37110-05G02

$111.90

8

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

9

.NUT,IGNITION SWITCH

37112-24500

$11.48

10

SWITCH ASSY,STOP LAMP

37740-38F01

$115.27

11

SPRING, STOP LAMP SWITCH

09443-06012

$3.16

12

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

13

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

13

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

13

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

13

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07

14

CLAMP (L:45)

09404-06429

$1.83

14

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

15

CLAMP (L:120)

09407-12402

$3.04

16

CLAMP (L:165)

09407-18402

$2.19

17

CLAMP (L:100)

09407-10404

$2.90
