2009 Suzuki LT-F250 Transmission Diagram

← All diagrams

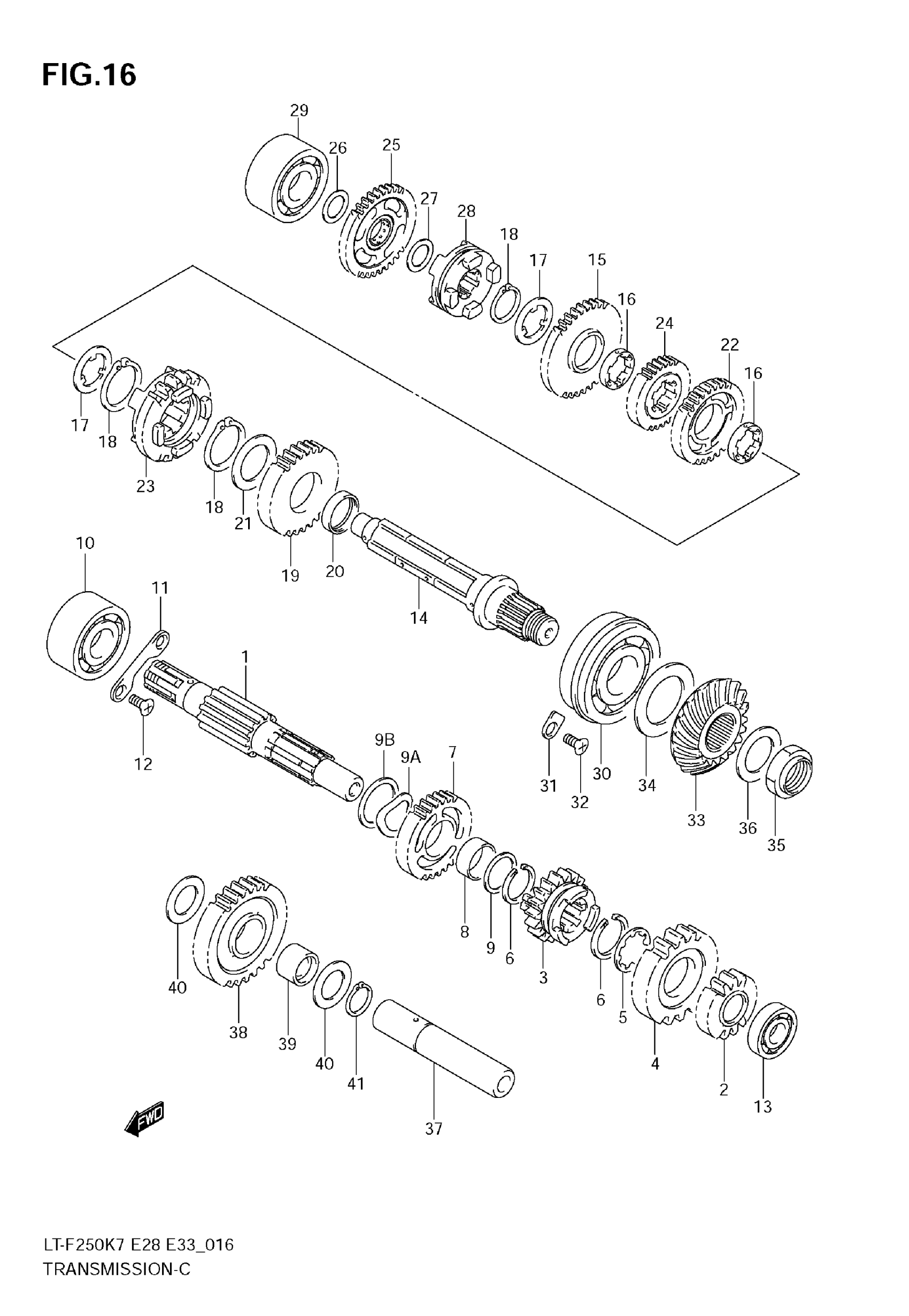

Find the part on the Transmission diagram for your 2009 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-F250 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT (NT:12)

24121-05G00

1
Out of stock

2

GEAR, 2ND DRIVE (NT:15)

24221-18A00

1
Out of stock

3

GEAR, 3RD DRIVE (NT:18)

24231-05G00

1
Out of stock

4

GEAR, 4TH DRIVE (NT:21)

24241-05G00

1
Out of stock

5

WASHER, 4TH DRIVE

09167-22011

1
Out of stock

6

CIRCLIP, 4TH/5TH

09380-22006

2
Out of stock

7

GEAR, 5TH DRIVE (NT:23)

24251-05G00

1
Out of stock

8

BUSH, 5TH DRIVE

24252-05G00

1
Out of stock

9

WASHER (22X28X1.0)

09181-22139

1
Out of stock

9A

WASHER

09164-26002

1
Out of stock

9B

WASHER, 5TH DR, RH

08211-22425

1
Out of stock

10

BEARING, RH (22X50X14)

09262-22018

1
Out of stock

11

RETAINER

24741-05G00

1
Out of stock

12

SCREW (6X12)

09126-06011

2
Out of stock

13

BEARING, LH (17X30X14)

09263-17026

1
Out of stock

14

DRIVE SHAFT

24131-05G00

1
Out of stock

15

GEAR, 1ST DRIVEN (NT:37)

24311-05G00

1
Out of stock

16

BUSH, 1ST/3RD

24332-24510

2
Out of stock

17

LOCK WASHER, 1ST/3RD

09167-25016

2
Out of stock

18

SNAP RING

09380-25003

3
Out of stock

19

GEAR, 2ND DRIVEN (NT:29)

24321-05G00

1
Out of stock

20

BUSH, 2ND DRIVEN

09300-25020

1
Out of stock

21

WASHER, 2ND DRIVEN

08211-25351

1
Out of stock

22

GEAR, 3RD DRIVEN (NT:25)

24331-19B01

1
Out of stock

23

GEAR, 4TH DRIVEN (NT:23)

24341-05G00

1
Out of stock

24

GEAR, 5TH DRIVEN (NT:21)

24351-05G00

1
Out of stock

25

GEAR, REVERSE DRIVEN (NT:34)

24570-05G00

1
Out of stock

26

WASHER, REVERSE RH | 17X28X1.0

09181-17195

1
Out of stock

27

WASHER, REVERSE LH | 20X28X1.0

09181-20167

1
Out of stock

28

DOG, REVERSE

24581-05G00

1
Out of stock

29

BEARING, RH (17X35X10)

09262-17026

1
Out of stock

30

BEARING, LH (25X62X17)

09262-25073

1
Out of stock

31

RETAINER, DRIVE SHAFT

24741-21A00

2
Out of stock

32

SCREW (6X12)

09125-06110

2
Out of stock

33

GEAR, SEC DRIVE BEVEL (NT:17)

24911-05G00

1
Out of stock

34

SHIM SET,SEC DRIVE BEVEL | T:0.25/0.30/0.35/0.55 0.58/0.60/0.63/0.65 0.68/0.70/0.73/0.75 0.78/0.80/0.83/0.85 0.88/0.90/0.93/0.95 0.98/1.00/1.03/1.05 1.08/1.10/1.13/1.15 1.18/1.20/1.23/1.25 1.28/1.30

24935-03811

1
Out of stock

35

NUT

09140-20012

1
Out of stock

36

WASHER (20X32X1.0)

09181-20223

1
Out of stock

37

SHAFT, REVERSE IDLE

24551-05G00

1
Out of stock

38

GEAR, REVERSE IDLE (NT:29)

24561-05G02

1
Out of stock

39

BUSH

24562-05G00

1
Out of stock

40

WASHER (17X28X1.0)

09181-17195

2
Out of stock

41

CIRCLIP This part replaces 08331-3117A.

08331-31179

1
Out of stock
