2009 Suzuki LT-F250 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2009 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

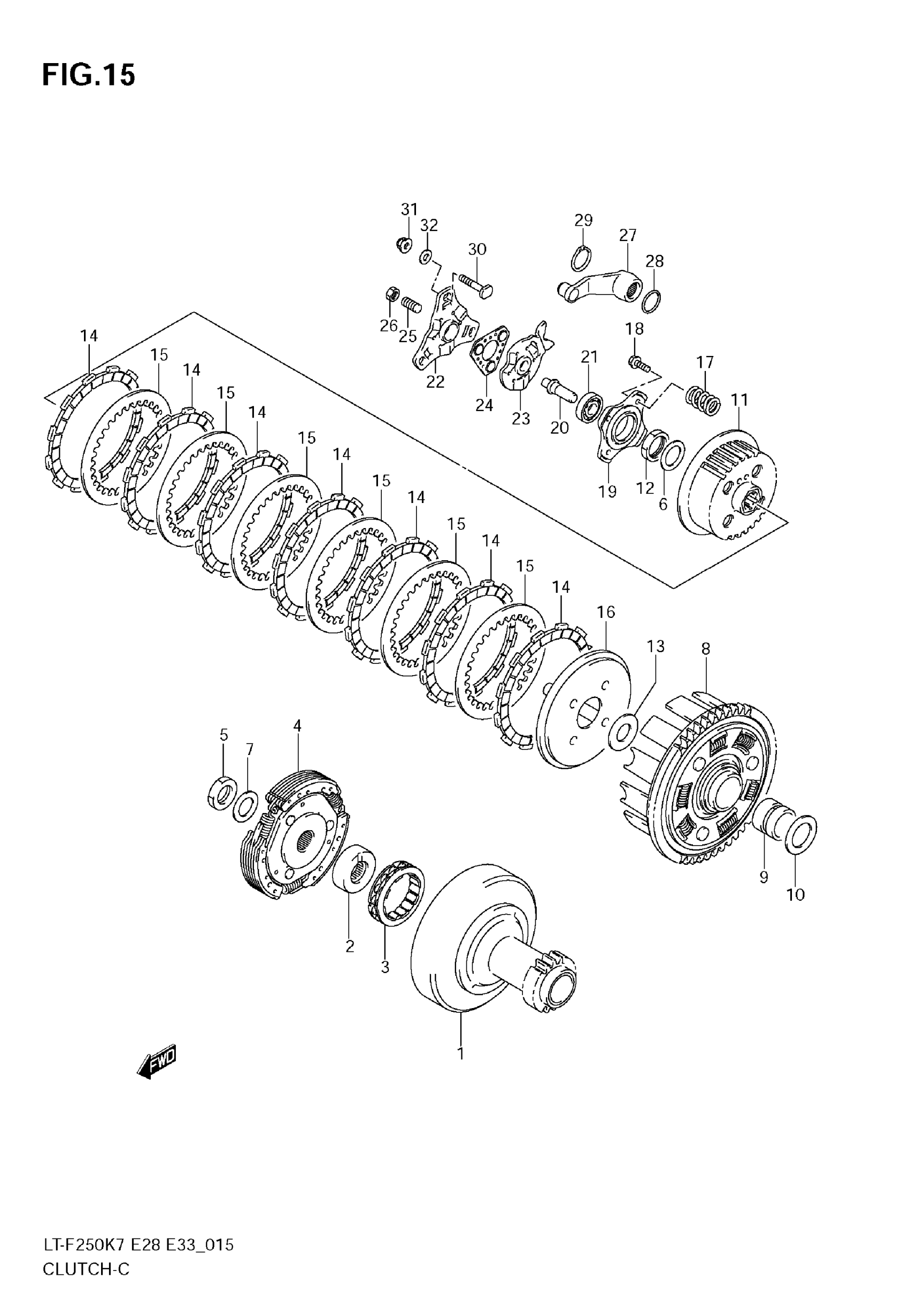

2009 Suzuki LT-F250 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$232.28

In stock

2

RACE, INNER

21631-19B11

1

$40.83

In stock

3

CLUTCH, ONE WAY

21273-19B10

1

$181.53

In stock

4

CLUTCH ASSY

21500-05G10

1

$309.63

In stock

5

NUT

09140-18012

1

$8.11

In stock

6

LOCK WASHER (ID:20.1)

09164-20007

1
Out of stock

7

LOCK WASHER (ID:18.3)

09164-18001

1

$3.21

In stock

8

GEAR ASSY, PRIMARY (NT:65)

21200-05G10

1
Out of stock

9

SPACER (22X28X23)

09180-22035

1

$23.07

In stock

10

WASHER (22X36X1.0)

09181-22251

1

$4.12

In stock

11

HUB, CLUTCH

21410-05G00

1

$136.77

In stock

12

NUT

09140-20019

1

$6.45

In stock

13

WASHER

08211-20323

1

$3.30

In stock

14

PLATE, DRIVE

21441-22A01

7

$15.11

In stock

15

6

$8.38

In stock

16

DISC, PRESSURE

21462-24501

1

$60.83

In stock

17

SPRING

21413-05G10

4

$5.52

In stock

18

BOLT

01550-0620B

4
Out of stock

19

PLATE, RELEASE

21465-24500

1

$21.62

In stock

20

PIECE, PUSH

23121-05G00

1

$28.58

In stock

21

BEARING (12X28X8)

09262-12001

1

$18.14

In stock

22

GUIDE, BALL OUTER

23231-05G21

1
Out of stock

23

GUIDE, BALL INNER

23211-05G21

1

$45.25

In stock

24

BALL, RELEASE

23250-31003

1

$31.82

In stock

25

SCREW, ADJUSTER

09134-08009

1

$4.20

In stock

26

NUT, ADJUSTER

09140-08021

1

$2.87

In stock

27

ARM, RELEASE

23220-05G20

1
Out of stock

28

1

$4.18

In stock

29

CIRCLIP, CL RLSE ARM

08331-3114A

1
Out of stock

30

BOLT

09119-06103

3

$2.57

In stock

31

NUT

08313-2006B

3

$3.10

In stock

32

SEAL, BOLT

09168-06023

3
Out of stock
