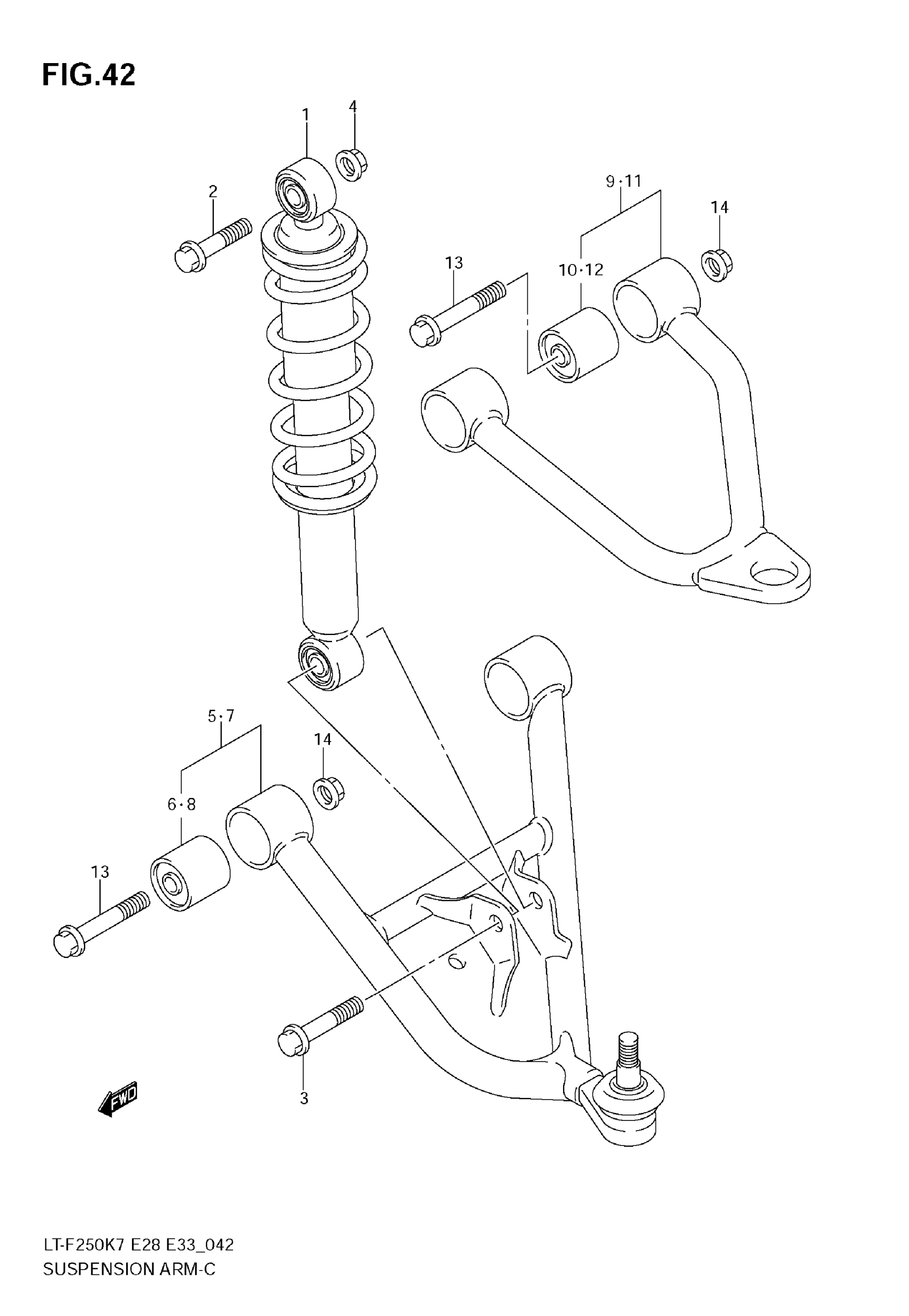

Suzuki LT-F250 (2009) SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK (BLACK)

52100-05G10-019

Unavailable

2

BOLT, UPPER

09103-10019

$2.63

3

BOLT, LOWER

09103-10126

$4.50

4

NUT

09159-10115

$3.55

5

ARM SET, SUSPENSION LOWER RH | Includes Item(s) 6

52410-05831

$330.78

6

BUSH (10X35.1X38)

09319-10055

$21.02

7

ARM SET, SUSPENSION LOWER LH | Includes Item(s) 8

52420-05831

$337.02

8

BUSH (10X35.1X38)

09319-10055

$21.02

9

ARM SET, SUSPENSION UPPER RH | Includes Item(s) 10

52430-05811

Unavailable

10

BUSH (10X35.1X38)

09319-10055

$21.02

11

ARM SET, SUSPENSION UPPER LH | Includes Item(s) 12

52440-05811

Unavailable

12

BUSH (10X35.1X38)

09319-10055

$21.02

13

BOLT (10X60)

09103-10301

$5.98

14

NUT

09159-10115

$3.55
