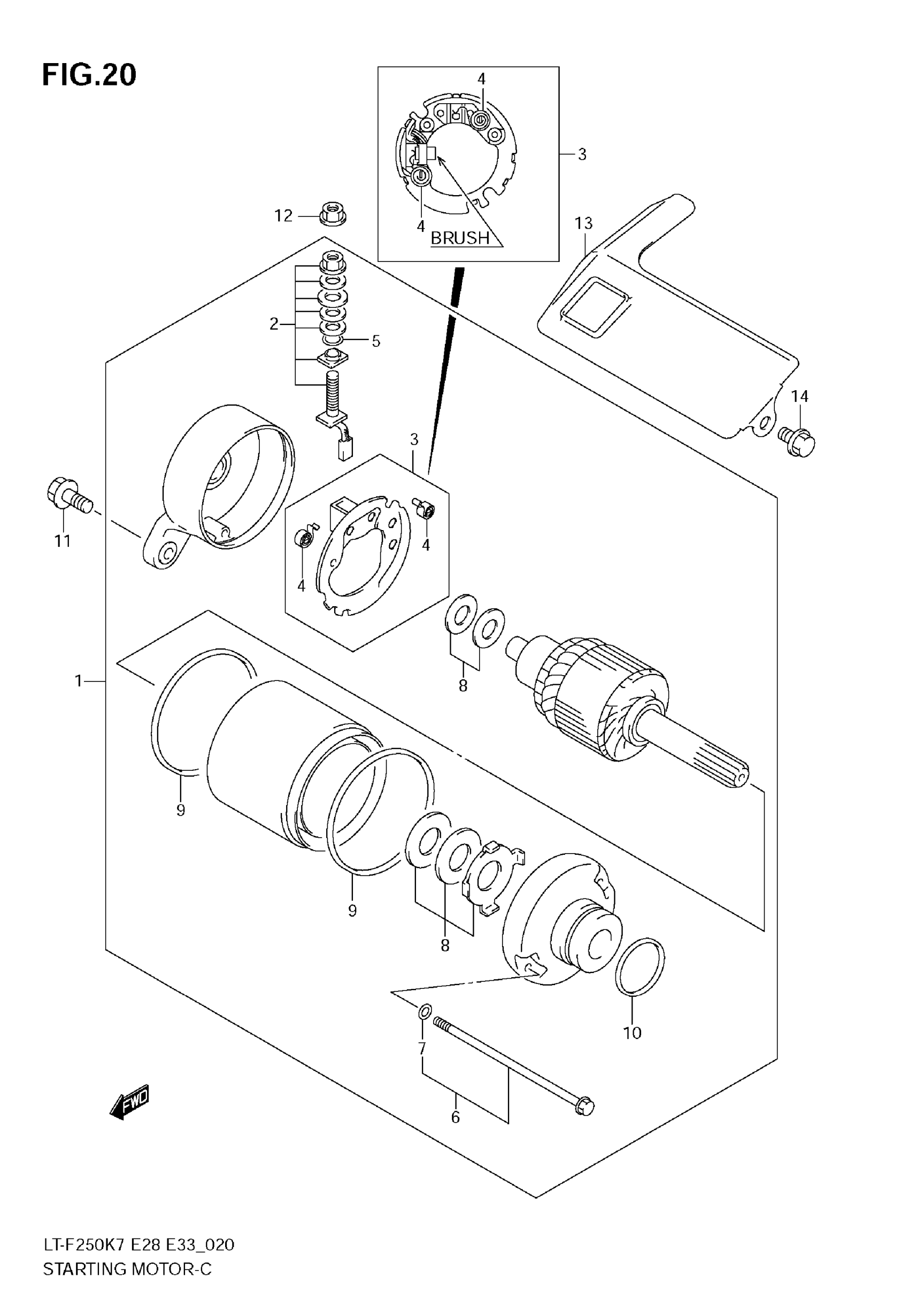

Suzuki LT-F250 (2009) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 10

31100-02C10

$649.60

2

BRUSH TERMINAL SET

31130-13E00

$44.18

3

BRUSH HOLDER SET

31132-33E00

$67.07

4

SPRING, BRUSH

31135-31300

$4.96

5

O RING

31143-49040

$3.71

6

BOLT SET

31280-19F00

$20.45

7

O RING

31156-13E00

$4.35

8

WASHER SET

31170-19B10

$12.57

9

O RING

31264-13E00

$6.68

10

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

11

BOLT (6X25)

09103-06212

$2.47

12

NUT

08361-3506A

$1.80

13

COVER, STARTING MOTOR

31210-05G00

$9.42

14

BOLT, COVER

01547-0610B

$2.45
