2009 Suzuki LT-F250 Seat Diagram

← All diagrams

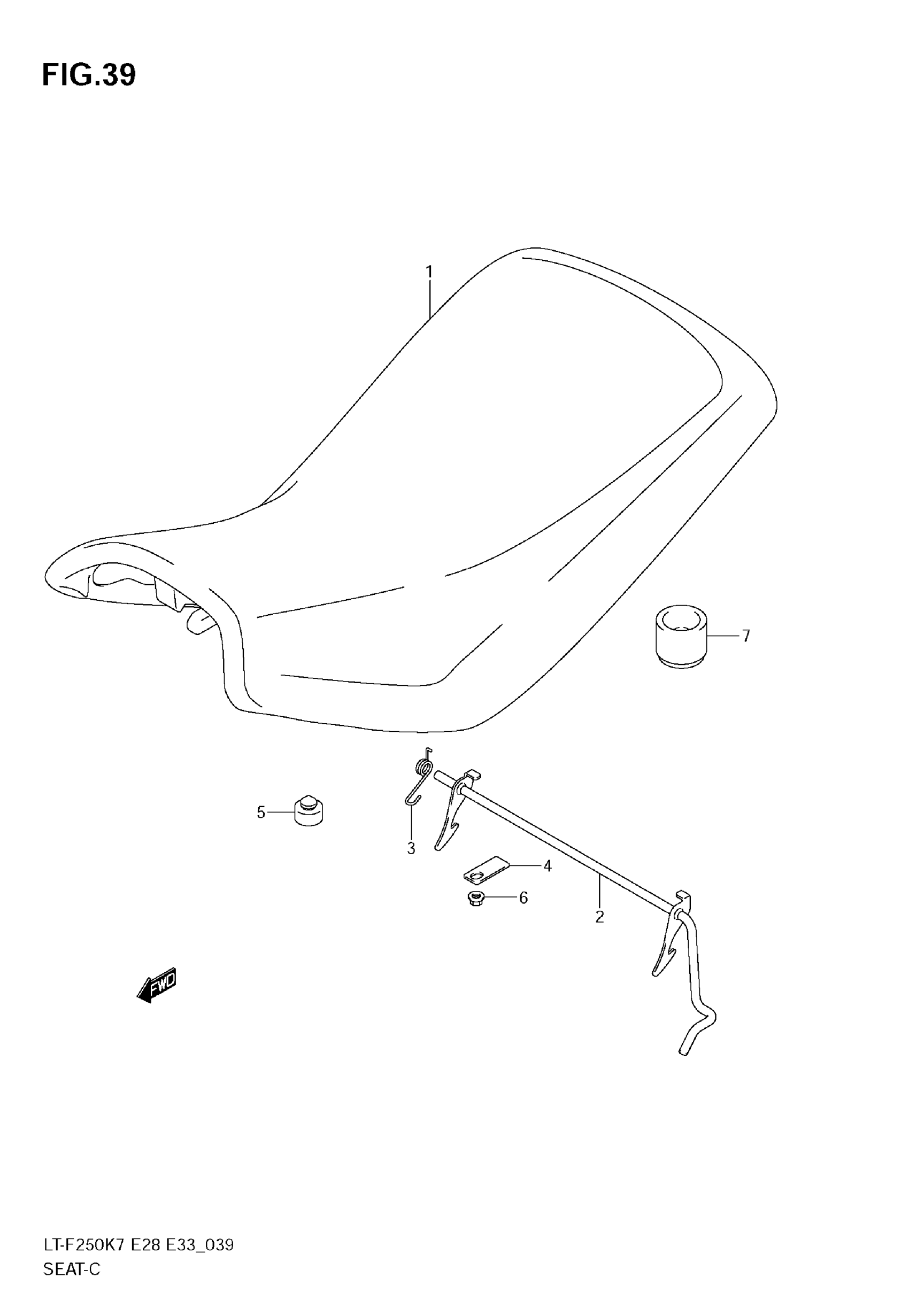

Find the part on the Seat diagram for your 2009 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-F250 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY(BLACK | MODEL K7/K8 This part replaces 45100-05G10-P21.

45100-05G22-P21

1
Out of stock

1

SEAT ASSY(BLACK | MODEL K9; Includes Item(s) 2 - 6 This part replaces 45100-05G20-P21.

45100-05G22-P21

1
Out of stock

2

CLAMP, SEAT LOCK

45210-05G01

1
Out of stock

3

SPRING, SEAT LOCK

45135-05G00

1
Out of stock

4

PLATE, SEAT LOCK, L

45222-38F00

1
Out of stock

5

CUSHION

09321-10033

4
Out of stock

6

NUT

08316-1006A

1
Out of stock

7

CUSHION, REAR

45141-05G01

2
Out of stock
