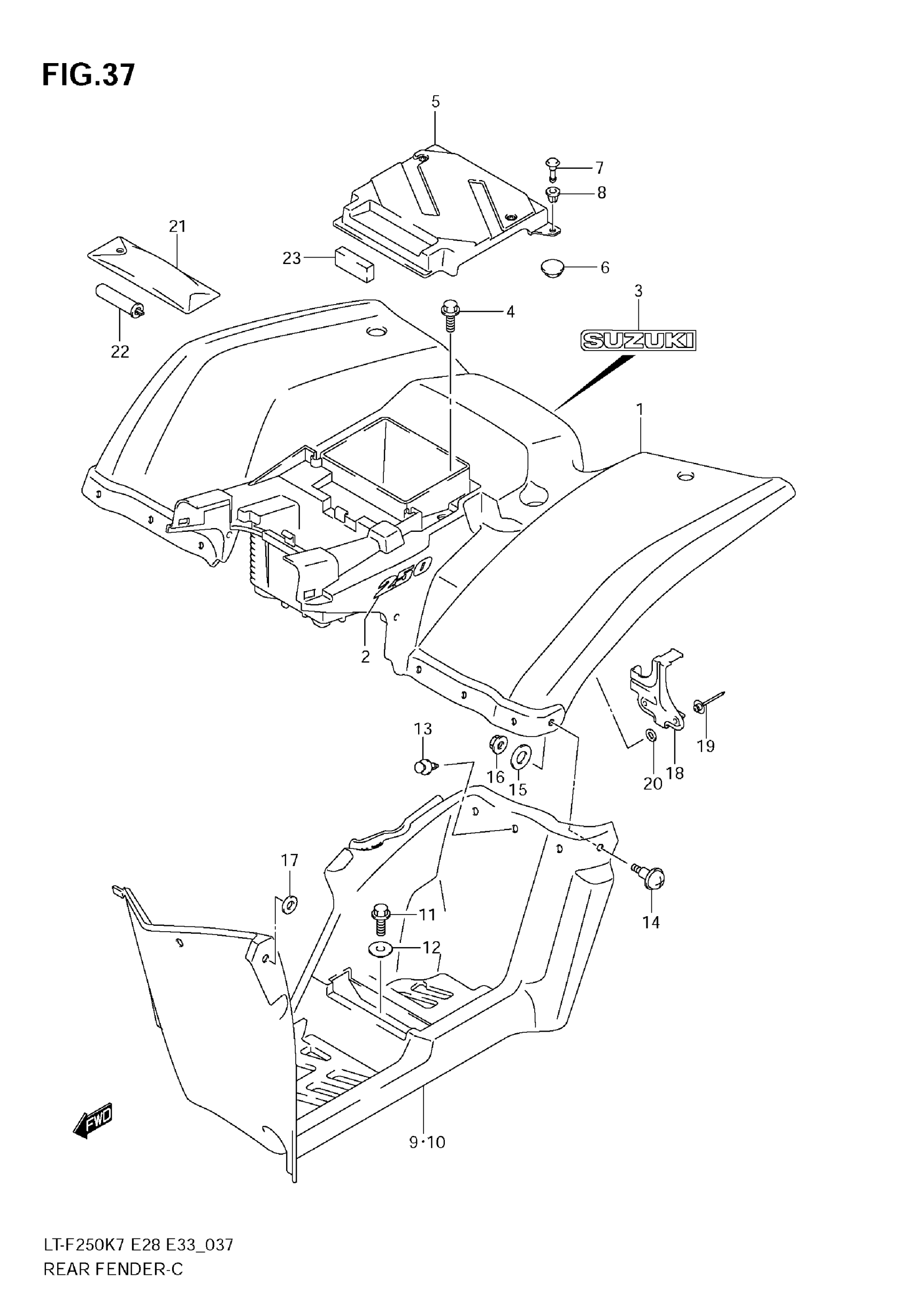

Suzuki LT-F250 (2009) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (RED)

63111-05G01-YT9

Unavailable

1

FENDER, REAR (BLACK)

63111-05G01-019

Unavailable

1

FENDER, REAR (GREEN)

63111-05G01-YLG

Unavailable

2

EMBLEM, "250" | MODEL K7

68171-05G00-BYG

Unavailable

2

EMBLEM, "250" | MODEL K8

68171-05G10-BYC

Unavailable

2

EMBLEM, "250" | MODEL K9

68171-05G10-GCD

Unavailable

3

EMBLEM,"SUZUKI" | MODEL K7 This part replaces 68171-03G20-YD8.

68171-03G21-YD8

$12.70

3

EMBLEM, "SUZUKI" (GRAY) | MODEL K8/K9

68171-05GA0-1ZZ

Unavailable

4

BOLT, FRONT

01550-0625B

$2.43

5

COVER, REAR FENDER

63121-05G10

$53.13

6

CAP(OD:16) This part replaces 09250-08007.

09250-08020

$1.80

7

CLIP

09409-08329

$2.54

8

GROMMET

09409-08330

$2.56

9

MUD GUARD, FOOTREST RH (BLACK)

63331-05G00-291

$211.38

10

MUD GUARD, FOOTREST LH (BLACK)

63341-05G00-291

$195.70

11

BOLT

01550-0612B

$2.38

12

WASHER

09169-06076

$2.88

13

CLIP

09409-08335

$2.44

14

SCREW

09136-05038

$2.80

15

WASHER

09160-05046

$1.90

16

NUT

09159-05043

$2.00

17

WASHER, FOOTREST SIDE

53341-38F01

$2.63

18

PLATE, CDI UNIT

47413-05G01

Unavailable

19

RIVET

09229-04020

$2.56

20

WASHER

08322-01047

$1.88

21

TOOL ASSY This part replaces 09800-21044.

09800-21093

$19.38

22

GAUGE ASSY,AIR PRESSUR

96200-18A02

$66.48

23

PROTECTOR (20X50X11) This part replaces 33652-03G00.

33652-31F00

$3.22
