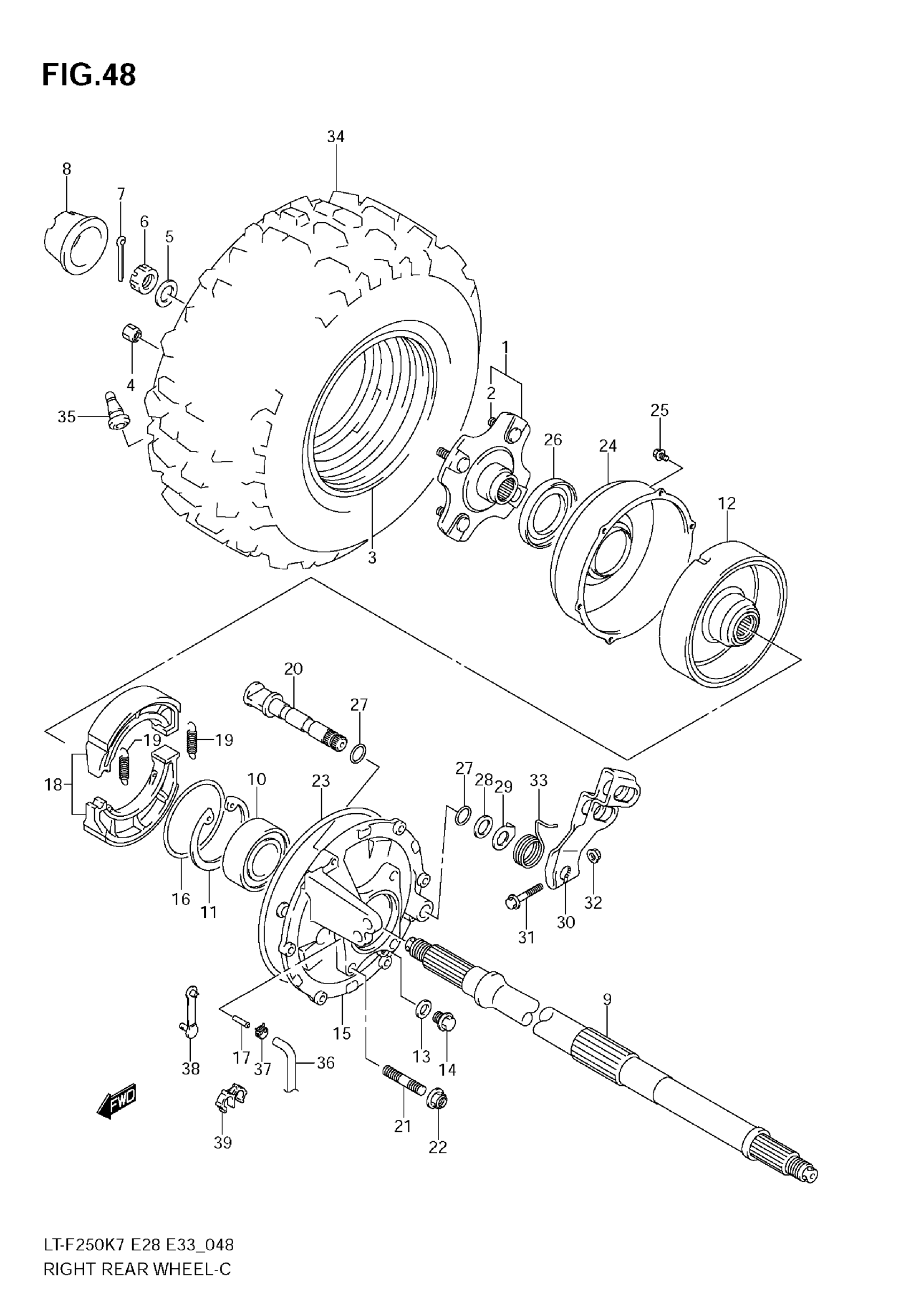

Suzuki LT-F250 (2009) RIGHT REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL RH | Includes Item(s) 2

64110-05G10

$283.67

2

BOLT (10X30)

09119-10049-XC0

$2.24

3

RIM, REAR WHEEL (9X7.0AT) (SILVER)

65310-05G00-YL8

$378.73

4

NUT

09159-10114

$4.67

5

WASHER

09164-18004

$3.38

6

NUT, HUB

09141-18010

$9.25

7

COTTER PIN

04111-4035A

$1.37

8

CAP,WHEEL CENTER

54725-09F01

$9.11

9

AXLE, REAR | MODEL K7 This part replaces 64711-05G00.

64711-05G10

$748.63

9

AXLE, REAR | MODEL K8/K9

64711-05G10

$748.63

10

BEARING(30X62X2 This part replaces 09267-30013.

09267-30015

$139.85

11

CIRCLIP

08331-4162A

$3.56

12

DRUM, BRAKE

64120-05G10

$333.90

13

WASHER, DRAIN PLUG

09161-10007

$1.55

14

PLUG, DRAIN

09247-10008

$1.97

15

PANEL, BRAKE ANCHOR

64210-05G01

$337.60

16

O RING This part replaces 09280-68008.

09280-68011

$2.80

17

UNION, PANEL

09364-04004

$13.58

18

SHOE SET, BRAKE

64400-05810

$60.12

19

SPRING, SHOE

55421-20E00

$2.80

20

CAM, REAR BRAKE

64440-05G01

$23.29

21

BOLT, PANEL

09108-10089

$3.81

22

NUT, PANEL

09159-10115

$3.21

23

O RING, PANEL

09280-00039

$18.75

24

COVER, REAR BRAKE

64123-05G00

$115.93

25

BOLT

01547-0612A

$2.01

26

DUST SEAL, DRUM COVER

64124-05G00

$25.32

27

O RING, CAM

09280-14004

$1.67

28

WASHER

09160-14055

$2.40

29

PLATE, BRAKE LINING INDICATOR

64492-21G00

$5.41

30

LEVER, BRAKE CAM

64451-05G00

$37.48

31

BOLT

01550-0635A

$2.31

32

NUT

08316-1006A

$2.19

33

SPRING, CAM LEVER

64484-05G00

$8.41

34

TIRE, REAR (AT22X10.9) This part replaces 65110-05G10.

65110-05G20

$236.75

35

VALVE ASSY, WHEEL RIM, TR412

43130-24A00

$8.10

36

HOSE,RR BRAKE B This part replaces 64270-05G00.

64270-05G01

$18.92

37

CLIP, HOSE

09401-06405

$2.67

38

CLAMP

09407-03401

$2.81

39

CLIP, HOSE & CABLE

09408-00200

$2.98
