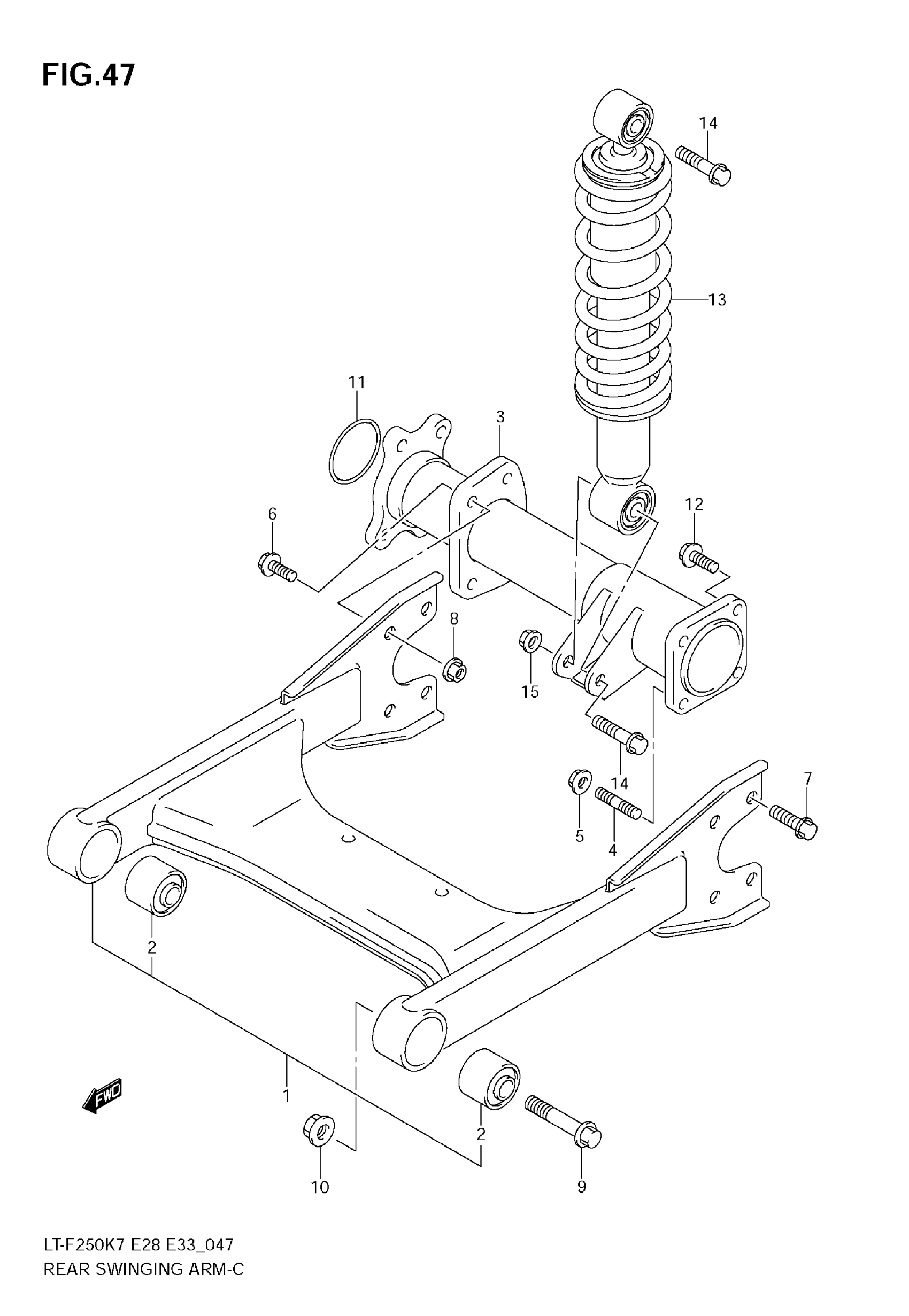

Suzuki LT-F250 (2009) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM SET, REAR | Includes Item(s) 2

61100-05850

Unavailable

2

BUSH, PIVOT

61230-38F00

$43.33

3

HOUSING, RR AXLE, R

61300-05G20

Unavailable

4

BOLT, AXLE HOUSING FRONT

01421-1025A

Unavailable

5

NUT, AXLE HOUSING FRONT

08316-1010B

$2.66

6

BOLT, RR SWGARM BRACKET, R

09103-10216

$4.17

7

BOLT, RR SWGARM BRACKET, L

01550-1030B

$3.72

8

NUT, RR SWGARM BRACKET

09159-10115

$3.55

9

BOLT, PIVOT

09103-12042

$8.50

10

NUT, PIVOT

09159-12054

$7.44

11

O RING, RR AXLE HOUSING REAR

09280-70005

$6.23

12

BOLT, AXLE HOUSING

01550-1030B

$3.72

13

ABSORBER ASSY,R This part replaces 62100-05G10-019.

62100-05G11-019

$360.82

14

BOLT

09103-10064

$5.52

15

NUT

09159-10115

$3.55
