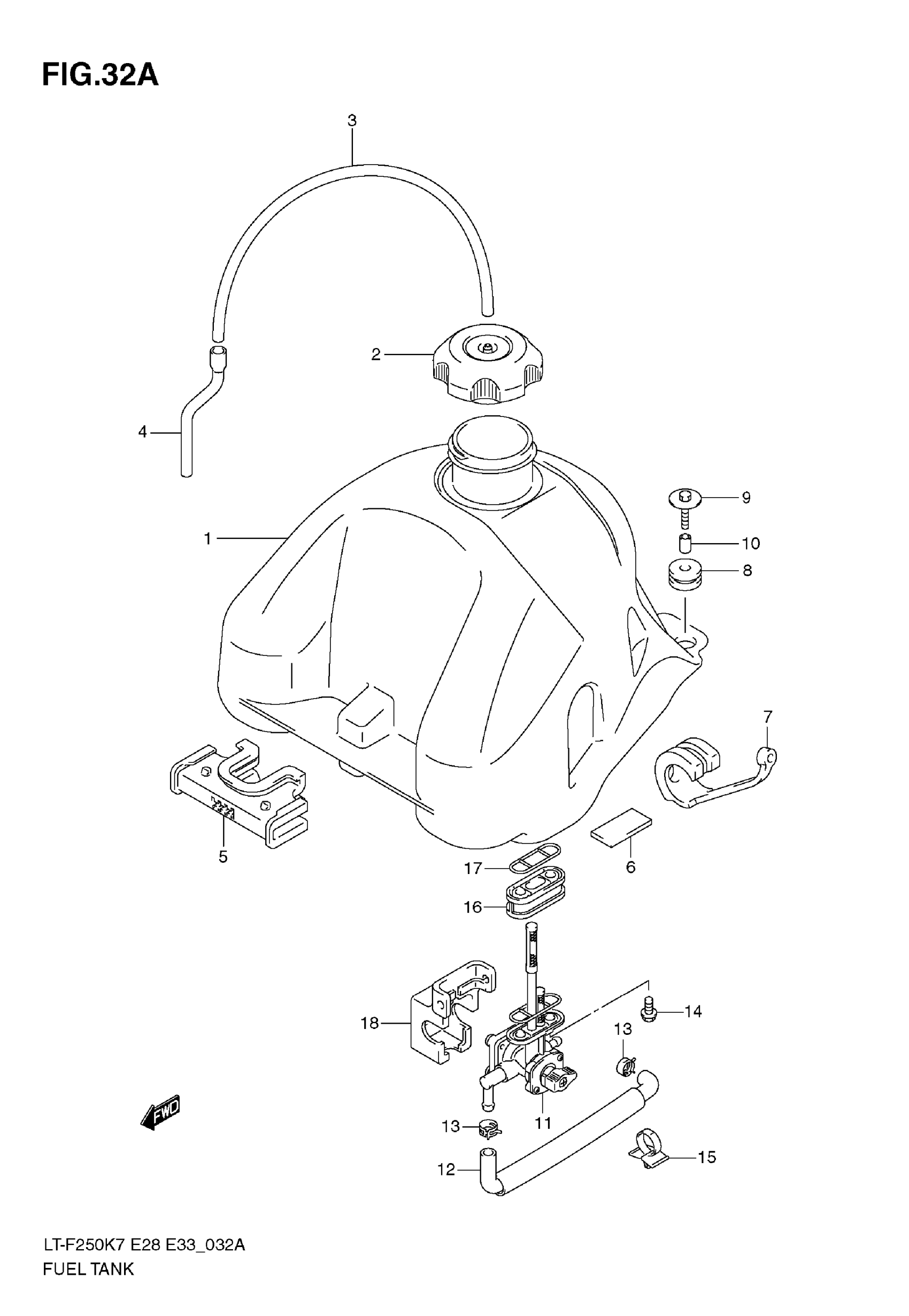

Suzuki LT-F250 (2009) FUEL TANK (MODEL K9) Diagram

#

Description
Price

1

TANK ASSY, FUEL

44100-05GA0

Unavailable

2

CAP ASSY, FUEL TANK FILLER This part replaces 44200-29F00.

44200-29F01

$38.33

3

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

4

HOSE,BREATHER This part replaces 44433-21G00.

44433-21G01

$11.10

5

CUSHION,FUEL TA This part replaces 44511-03G00.

44511-03G01

$20.92

6

CUSHION

44556-33H00

$7.66

7

CUSHION, LOWER

44541-05GA0

Unavailable

8

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

$5.78

9

BOLT

09116-06190

$2.34

10

SPACER

09180-06293

$2.58

11

COCK ASSY,FUEL This part replaces 44300-05G10.

44300-05G11

$193.65

12

HOSE,FUEL This part replaces 44420-05G00.

44420-21GR0

$24.55

13

CLIP

09401-11415

$2.23

14

BOLT

01547-0635B

$2.73

15

CLAMP, AIR VENT HOSE

09403-12312

$3.93

16

SPACER

44365-05GA0

Unavailable

17

GASKET

44366-05GA0

$18.56

18

CUSHION, COCK

44542-05GA0

Unavailable
