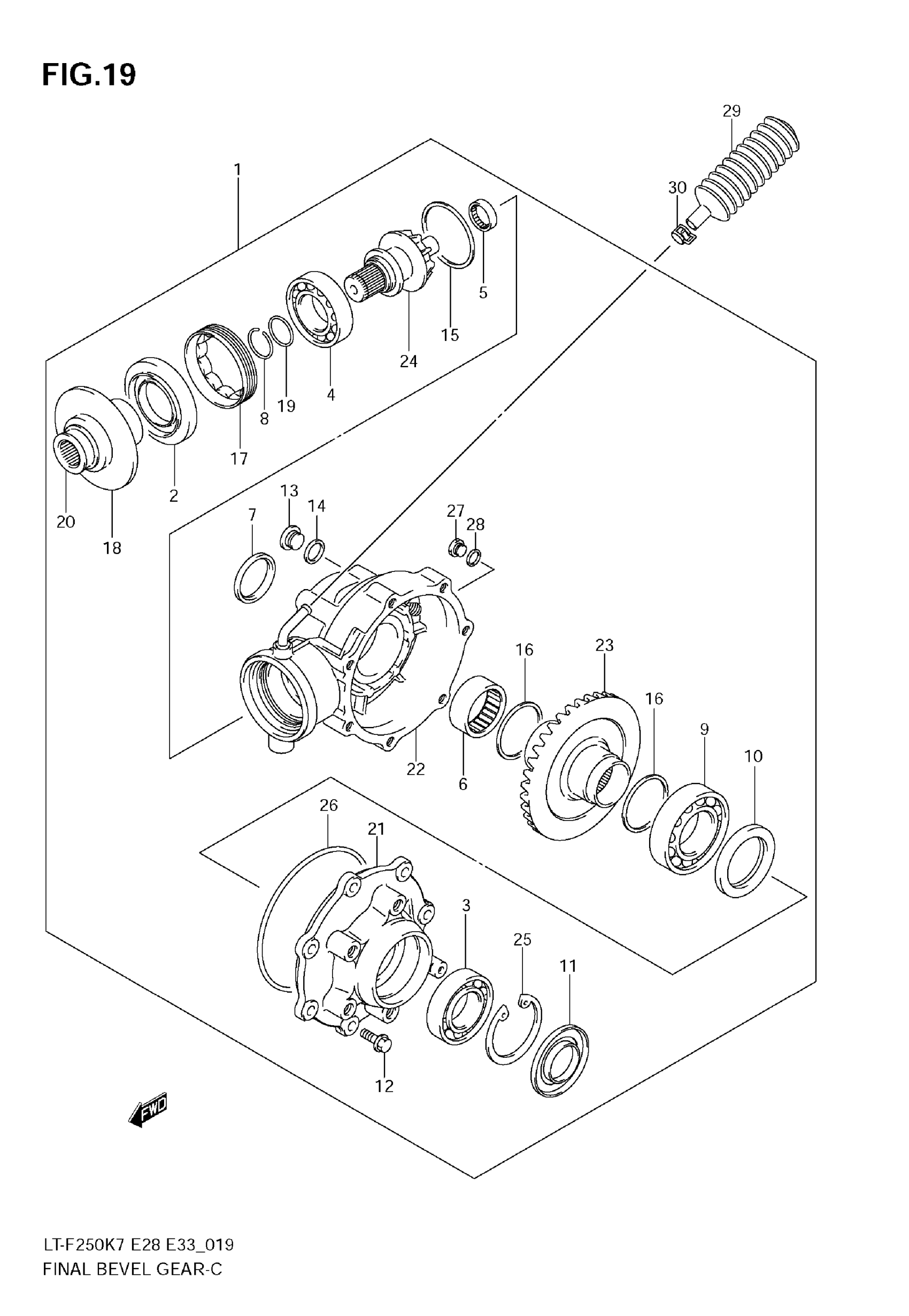

Suzuki LT-F250 (2009) FINAL BEVEL GEAR Diagram

#

Description
Price

1

CASE ASSY, REAR FINAL GEAR | Includes Item(s) 2 - 28

27400-05G10

$1,517.80

2

OIL SEAL (35X69X8)

27406-05GA0

$24.99

3

BEARING (30X62X16)

27405-05GF0

$72.58

4

BEARING (30X62X16) This part replaces 27405-05GE0.

27405-05GF0

$72.58

5

BEARING (15X23X16)

27405-05GB0

$49.02

6

BEARING (45X52X20)

27405-05GC0

$58.39

7

OIL SEAL (45X55X7)

27406-05GB0

$25.83

8

C RING (24X1.0)

27403-05GA1

$4.72

9

BEARING (45X75X16)

27405-05GD0

$90.20

10

OIL SEAL (42X62X7)

27406-05GC0

$29.38

11

OIL SEAL (30X62X7)

27406-05GG0

$31.65

12

BOLT

27401-05GC0

$5.88

13

PLUG

27409-05GA0

$15.10

14

GASKET

27407-05GA0

$7.70

15

SHIM SET, FINAL DRIVE | T:1.38/1.44/1.50/1.56 1.62/1.68

27407-05810

$82.35

16

SHIM SET, FINAL DRIVEN | T:1.26/1.32/1.38/1.44 1.50/1.56/1.62/1.68 1.74/1.80

27407-05820

$228.70

17

STOPPER, BEARING

27312-05GA0

$78.73

18

PLATE, OUTPUT OIL SEAL

27592-05GA0

$29.54

19

O RING (D:2.0,ID:25.5)

27406-05GE0

$5.53

20

SHAFT, JOINT

27591-05GA1

$86.59

21

CASE, FINAL GEAR LH

27461-05GA1

$228.70

22

CASE, FINAL GEAR RH

27450-05GA1

$559.05

23

GEAR, FINAL DRIVEN BEVEL

27321-05GA0

$319.08

24

GEAR, FINAL DRIVEN BEVEL

27311-05GA0

$239.02

25

CIRCLIP

27403-05GB0

$8.57

26

O RING (D:3.5,ID:130)

27406-05GF0

$16.78

27

BOLT, OIL CHECK

27401-05GB0

$2.93

28

GASKET, OIL CHECK

27407-05GD0

$7.35

29

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$18.50

30

CLAMP, BREATHER CASE

09401-08411

$1.78
