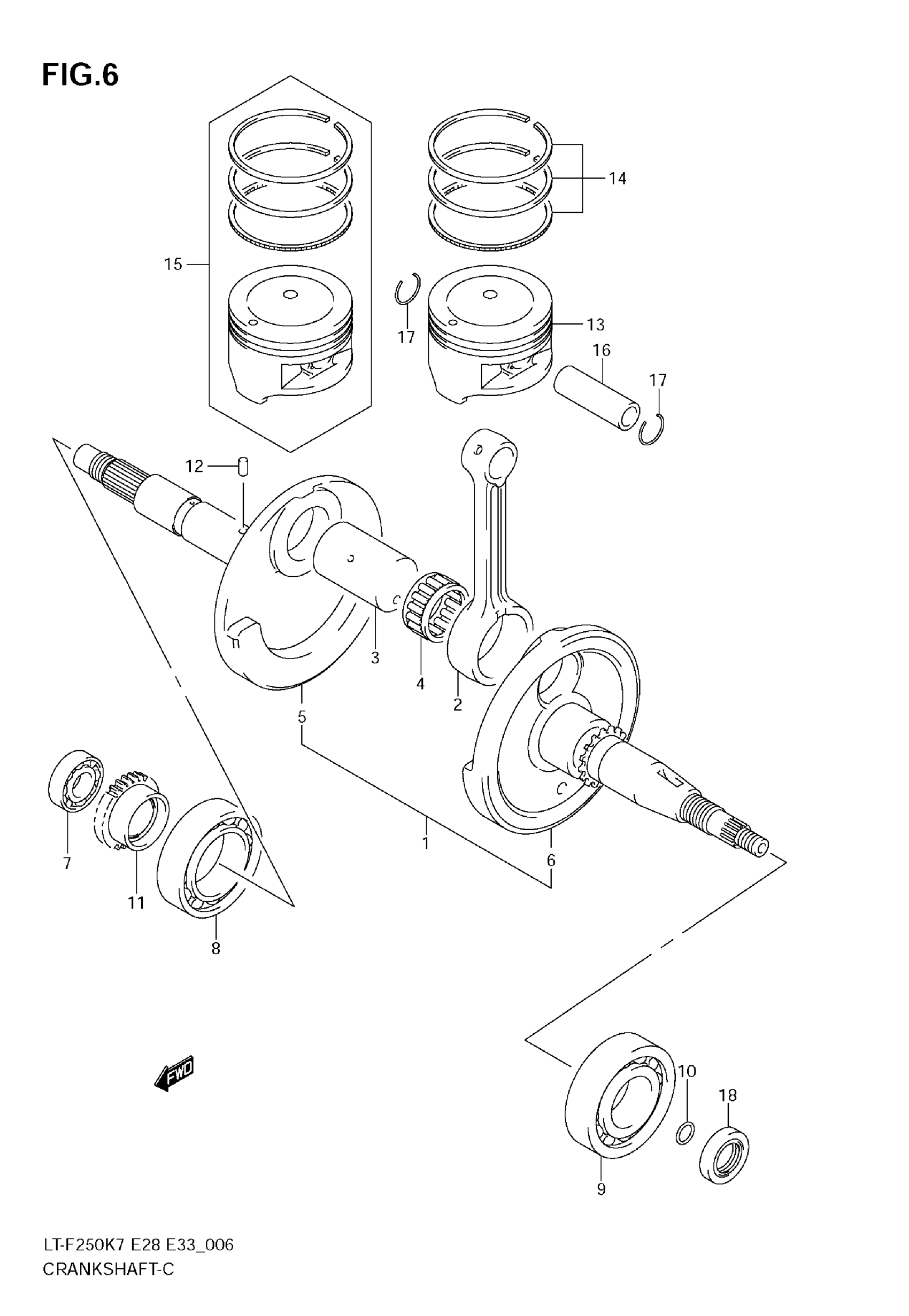

Suzuki LT-F250 (2009) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | MODEL K7

12200-05G02

Unavailable

1

CRANKSHAFT ASSY | MODEL K8/K9; Includes Item(s) 2 - 6

12200-05G11

Unavailable

2

ROD, CONNECTING

12161-19B03

$134.48

3

PIN, CRANK

12210-22A03

$50.10

4

BEARING (30X39X18)

09263-30033-0B0

$76.77

5

CRANKSHAFT, RH

12220-05G01

Unavailable

6

CRANKSHAFT, LH | MODEL K7

12261-05G00

Unavailable

6

CRANKSHAFT, LH | MODEL K8/K9

12261-05G10

Unavailable

7

BEARING, RH (15X35X11)

09262-15038

$32.90

8

BEARING, MDL (28X68X18)

09262-28014

$57.95

9

BEARING, LH (35X72X17)

09262-35073

$41.40

10

O RING (D:1.9,ID:12.6)

09280-12009

$3.18

11

GEAR, OIL PUMP DRIVE (NT:30)

16321-19B00

Unavailable

12

PIN (4X13.8)

04221-04089

$1.49

13

PISTON

12111-05G01-0F0

$76.08

14

RING SET, PISTON (STD)

12140-05G00

$41.60

14

RING SET, PISTON (OS:0.5) | OPT

12140-05G00-050

$52.77

15

PISTON SET (OS:0.5) | OPT

12100-05G01-050

$133.98

16

PIN, PISTON

12151-22A02

$12.15

17

CIRCLIP

09381-16004

$1.58

18

OIL SEAL (22X35X7)

09289-22010

$27.95
