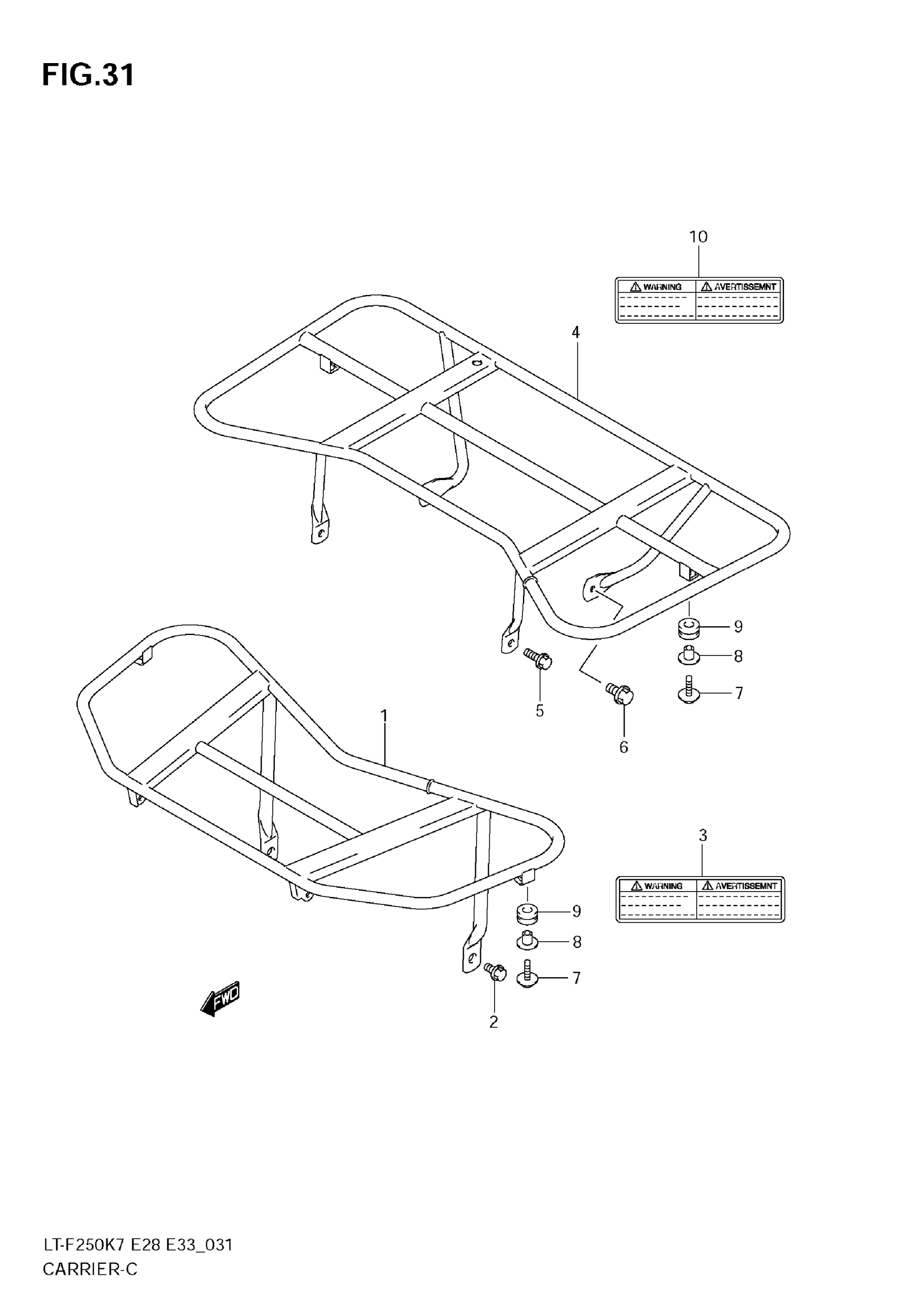

Suzuki LT-F250 (2009) CARRIER Diagram

#

Description
Price

1

CARRIER, FRONT (BLACK)

46410-05G01-019

$371.53

2

BOLT (8X16)

01550-0816A

$2.32

3

LABEL, FRONT CARRIER | MODEL K7/K8 E33

68391-02C00

Unavailable

3

LABEL, FRONT CARRIER | MODEL K9 E33

68381-31G00

$9.28

3

LABEL, FRONT CARRIER (FRENCH) | MODEL K7/K8 E28

68391-02C20

Unavailable

3

LABEL, FRONT CARRIER (FRENCH) | MODEL K9 E28

68385-31G00

Unavailable

4

CARRIER, REAR (BLACK)

46310-05G21-019

$495.37

5

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

6

BOLT, SIDE | E33

01550-1016A

$3.10

6

BOLT, SIDE | E28

01550-1020A

$3.05

7

BOLT, LOWER

01550-0625B

$2.42

8

SPACER

09169-06074

$7.95

9

CUSHION (11.5X32X12.2) This part replaces 09320-11019.

09320-11021

$4.17

10

LABEL,FRONT CAR | MODEL K7/K8 E33 This part replaces 68381-19B00.

68381-19B01

$5.42

10

LABEL, REAR CARRIER | MODEL K9 E33

68381-31G20

Unavailable

10

LABEL,WARNING F | MODEL K7/K8 E28 This part replaces 68381-19B20.

68381-19B21

$8.03

10

LABEL, REAR CARRIER (FRENCH) | MODEL K9 E28

68385-31G20

Unavailable
