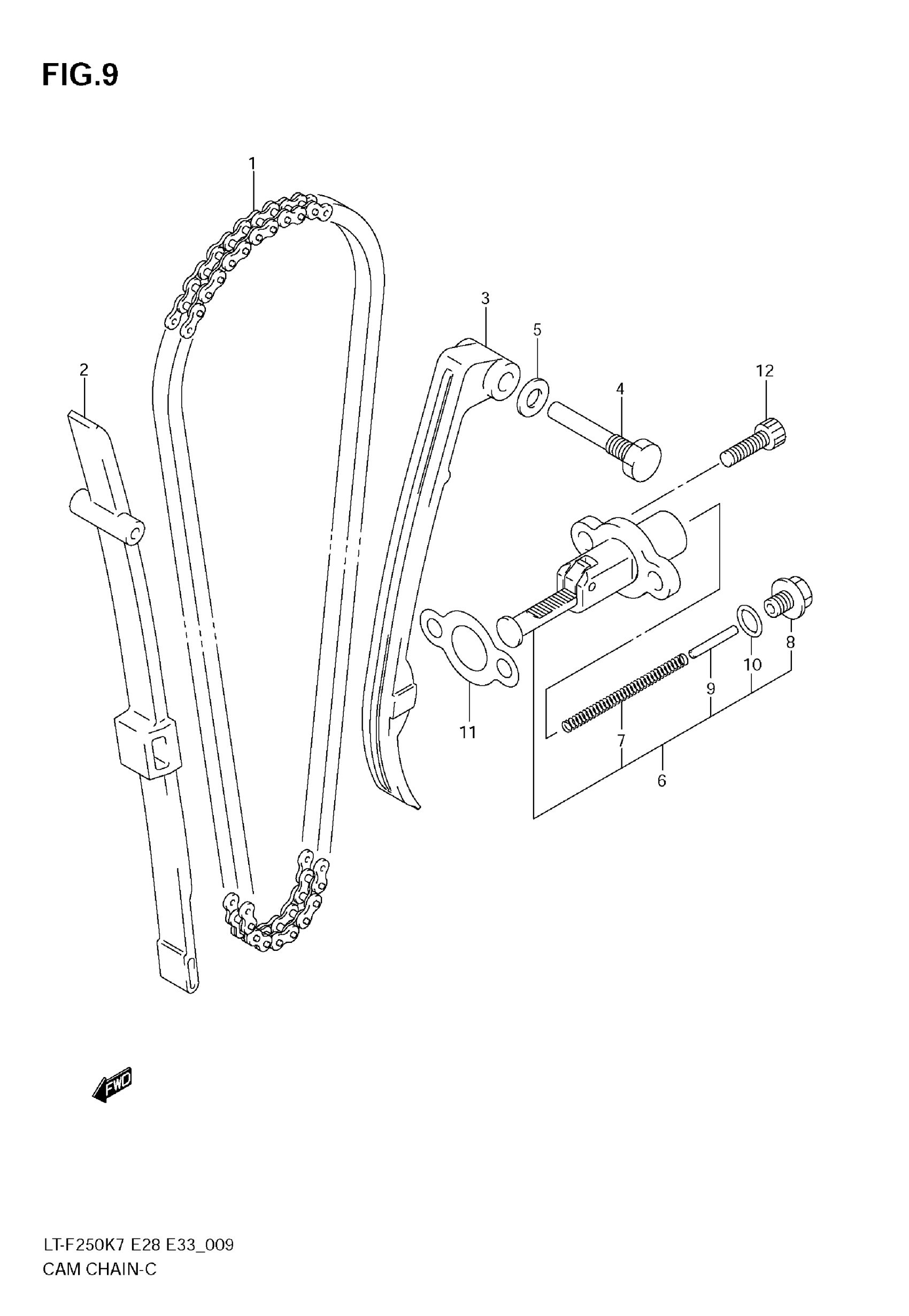

Suzuki LT-F250 (2009) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM | MODEL K7

12760-19B01

$96.30

1

CHAIN, CAM | MODEL K8/K9

12760-21G00

$112.23

2

GUIDE,CAM CHAIN | MODEL K7 This part replaces 12771-19B01.

12771-19B02

$27.68

2

GUIDE,CAM CHAIN | MODEL K8/K9 This part replaces 12771-21G00.

12771-21G01

$36.63

3

TENSIONER,CAM C | MODEL K7 This part replaces 12811-19B10.

12811-19B11

$37.35

3

TENSIONER,CAM C | MODEL K8/K9 This part replaces 12811-21G00.

12811-21G01

$40.37

4

BOLT, CAM CHAIN TENSIONER

12812-32400

$4.92

5

GASKET (8.2X14X1)

09168-08016

$1.64

6

ADJUSTER ASSY, TENSIONER | Includes Item(s) 7 - 10

12830-19B02

$90.81

7

SPRING

12833-19B00

$3.67

8

PLUG

12834-19B00

$19.60

9

BAR

12835-19B00

$3.67

10

O RING

12832-02A00

$2.80

11

.GASKET,TENSIONER ADJUSTER

12837-19B10

$2.80

12

BOLT

07130-0620B

$2.80
