Description

Price

1

GASKET, EXHAUST PIPE

14181-42A00

$10.01

2

STUD BOLT

01421-0825B

$2.76

3

NUT

08319-3108B

$2.75

4

PIPE, EXHAUST

14150-05G00

$126.22

5

BOLT, EXHAUST SUPPORT

09106-08133

$3.56

6

WASHER, EXHAUST SUPPORT

09160-08135

$2.10

7

SPACER, EXHAUST SUPPORT

09180-08151

$4.73

8

CUSHION, EXHAUST SUPPORT

09320-12043

$7.20

9

COVER, EXHAUST PIPE

14180-05G01

$46.13

10

BAND, EXHAUST PIPE, A

14184-05G00

$14.22

11

BAND, EXHAUST PIPE, B

14185-05G00

$19.13

12

BODY,MUFFLER This part replaces 14310-05G00.

14310-05G01

$192.44

13

BOLT, MUFFLER SUPPORT

07120-0845B

$3.58

14

WASHER, MUFFLER SUPPORT

09160-08503

$2.53

15

SPACER, MUFFLER SUPPORT

09180-08152

$5.26

16

CUSHION, MUFFLER SUPPORT

09320-12048

$4.62

17

BOLT, MUFFLER CONNECTOR

07120-0825B

$3.19

18

CONNECTOR, MUFFLER

14771-19B00

$16.05

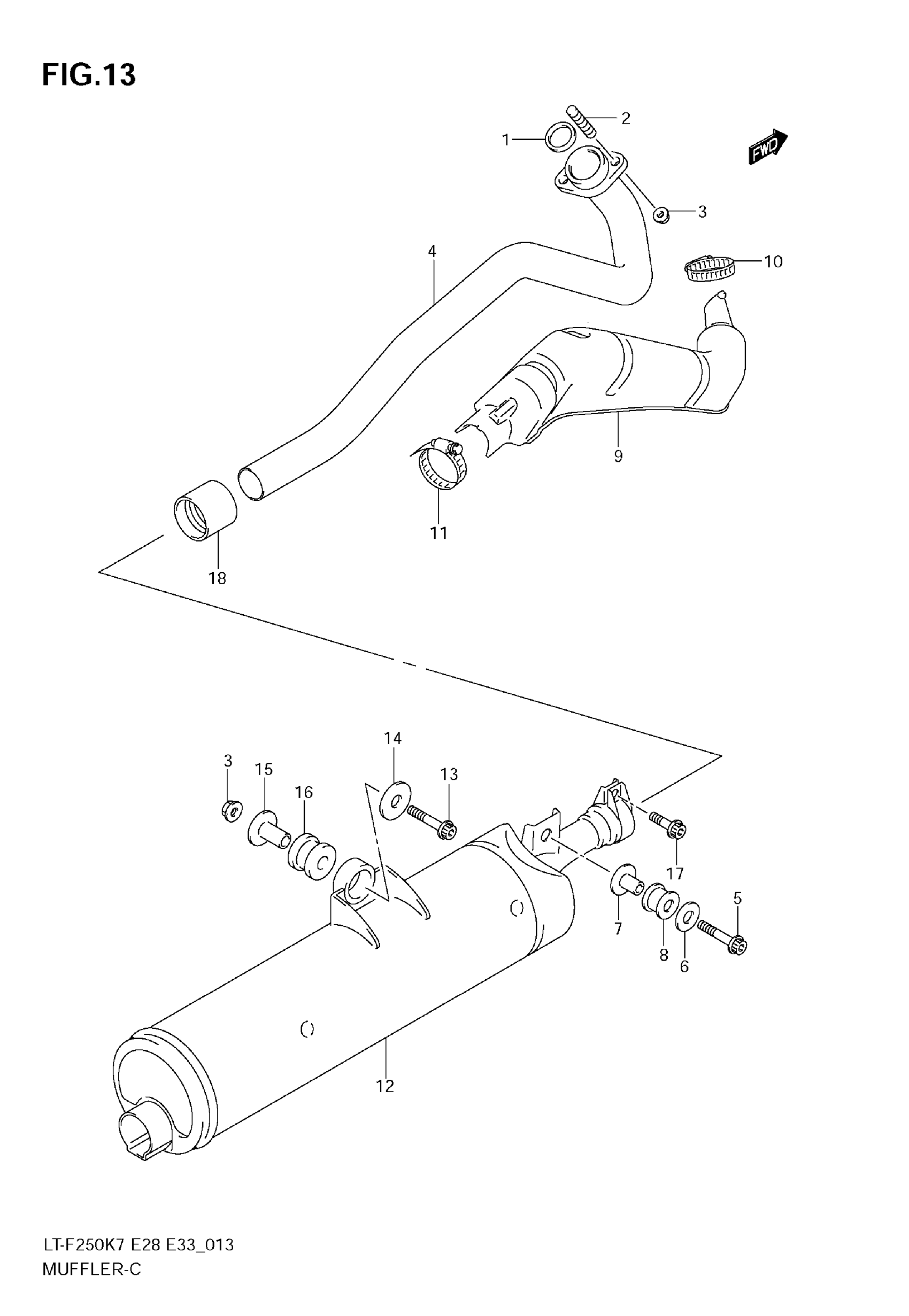

Suzuki LT-F250 (2009) MUFFLER Diagram
