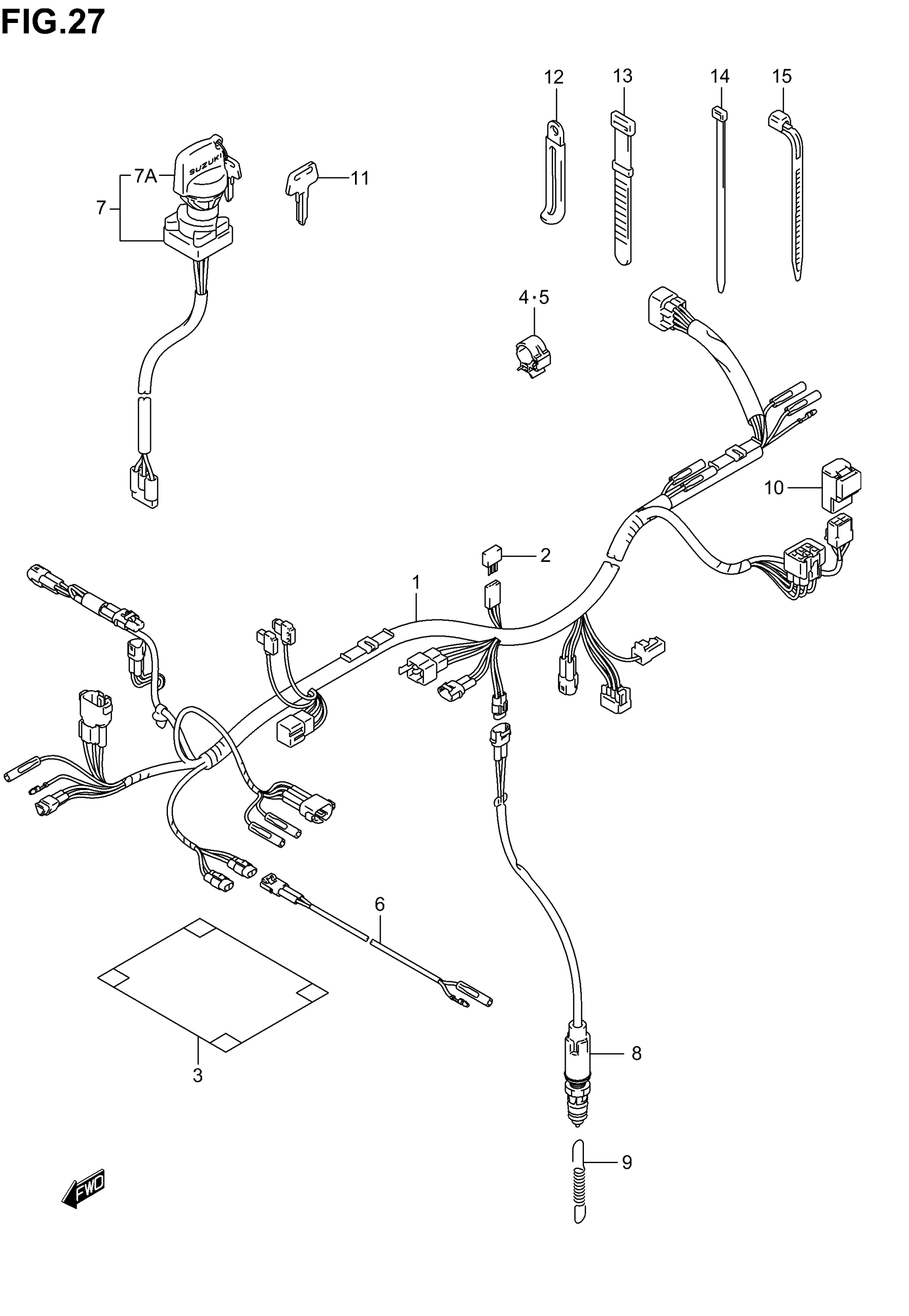

Suzuki LT-F250 (2006) WIRING HARNESS (MODEL K2/K3/K4) Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2

36610-05G00

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

$18.87

4

CLAMP (ID:15)

09403-15405

$2.72

5

CLAMP (ID:25)

09403-25401

Unavailable

6

WIRE,BRAKE SW L This part replaces 36856-35B00.

36856-35B01

$8.60

7

SWITCH ASSY,IGN | Includes Item(s) 7A This part replaces 37110-05G00.

37110-05G02

$111.90

7A

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

8

SWITCH ASSY,STOP LAMP This part replaces 37740-38F00.

37740-38F01

$115.27

9

SPRING, STOP LAMP SWITCH | MODEL K2

09443-06073

$3.42

9

SPRING, STOP LAMP SWITCH | MODEL K3/K4

09443-06012

$3.16

10

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

11

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

11

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

11

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

11

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07

12

CLAMP (L:45)

09404-06429

$1.83

13

CLAMP (L:120)

09407-12402

$3.04

14

CLAMP (L:145)

09407-14407

$3.57

15

CLAMP (L:165)

09407-18402

$2.19
